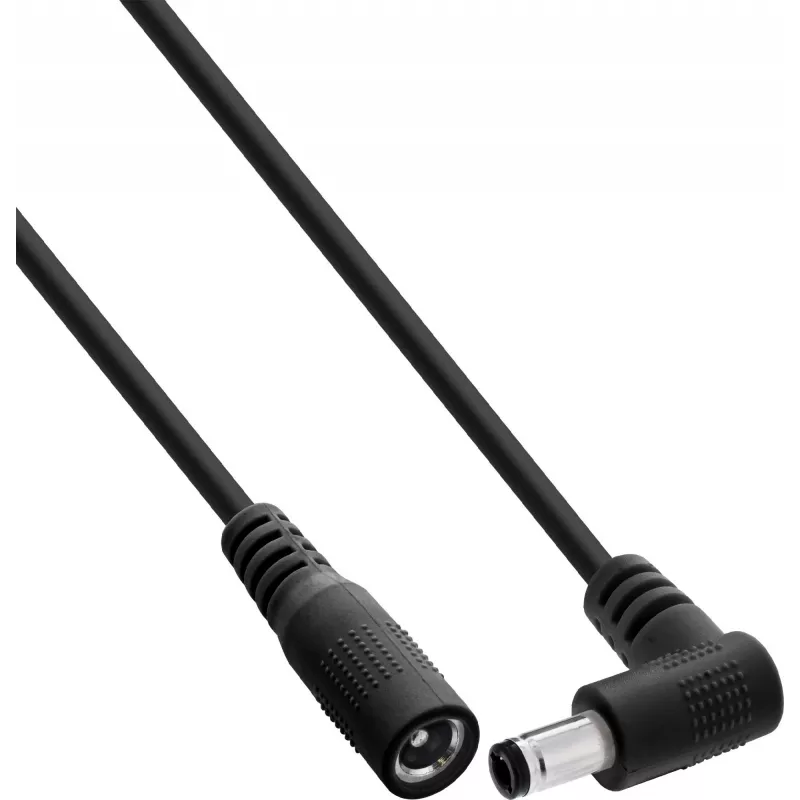

InLine® DC-verlengkabel, haakse stekker, 5,5 x 2,1 mm, zwart, 0,5 m

The InLine® DC extension cable with right-angle plug extends existing DC power connections. It features a 5.5 x 2.1 mm DC plug and DC socket, a 2-core AWG 18 cable with PVC sheath, and is suitable for 12–24 V DC applications up to 140 W.

Key features

• Right-angle DC plug for space-saving connection
• 5.5 x 2.1 mm barrel connector
• 2-core cable with AWG 18 conductor cross-section
• PVC cable sheath
• Nickel-plated contact housing
• Unshielded
• Operating voltage: 12–24 V DC
• Maximum power: 140 W
• Connector A: DC plug, angled
• Connector B: DC socket, straight

Specifications

• Brand: InLine
• MPN: 26955L
• Product type: Power Cord
• Product colour: Black
• Cable length: 0.5 m
• AWG wire size: 18
• Jacket material: Polyvinyl chloride (PVC)
• Connector dimensions: 5.5 x 2.1 mm
• Outer cable diameter: 5.0 ± 0.2 mm
• Operating voltage: 12–24 V (DC)
• Maximum power: 140 W
• Shielding: Unshielded
• UL: No
• Design: Angled
• Signal: Power
• Country of origin: China
• EAN Barcode: 4043718349661
• Customs tariff number: 8544429090
• Manufacturer information: INTOS ELECTRONIC AG, Siemensstrasse 11, 35394 Gießen, Deutschland, [email protected]
