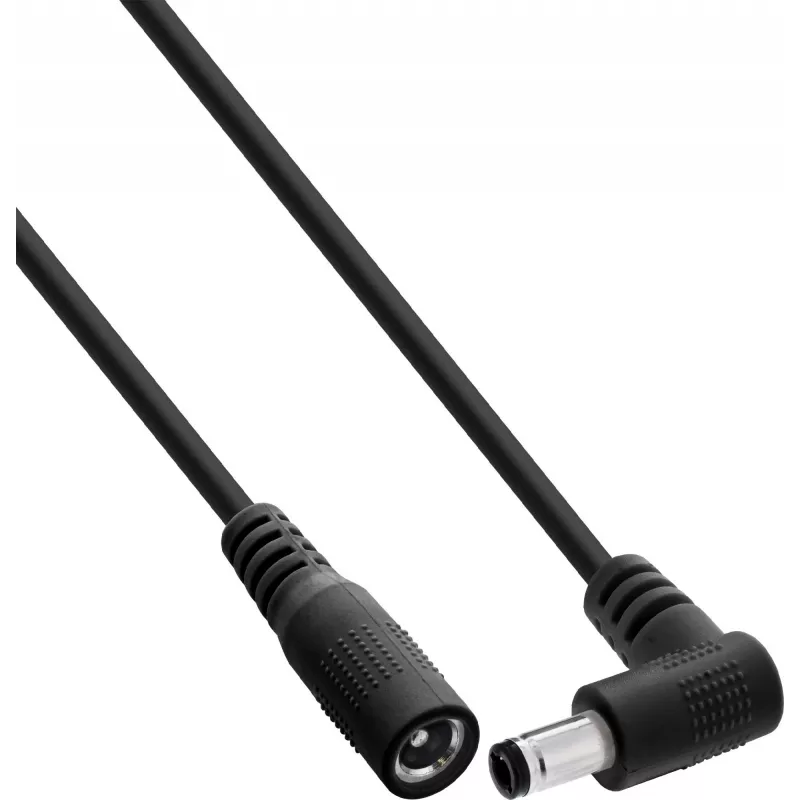

InLine® DC-verlengkabel, haakse stekker, 5,5 x 2,1 mm, zwart, 1 m

Extend your DC power connections with confidence using the InLine® DC Extension Cable. Featuring a right-angle 5.5 x 2.1 mm plug, this 1-meter cable solves tight-space power routing while maintaining a robust 3 A current capacity.

Overview

This extension cable is built for devices that use the common 5.5 x 2.1 mm DC barrel connector. The right-angle plug allows the cable to lie flat against the device, reducing strain and enabling installation in confined areas. The opposite end terminates in a straight DC jack, ready to accept your existing power supply plug. With 20 AWG copper conductors and a durable PVC jacket, it delivers reliable power over a full meter without significant voltage drop.

What stands out

• Right-angle plug: ideal for tight spaces and clean cable routing
• Supports up to 3 A at 24 V DC for a wide range of electronics
• Nickel-plated connectors resist corrosion and ensure solid contact
• Flexible PVC jacket remains pliable from -20°C to 70°C
• RoHS compliant construction for environmental safety

Technical details

• Connector A: DC power plug, male, right-angle, 5.5 x 2.1 mm
• Connector B: DC power jack, female, straight, 5.5 x 2.1 mm
• Cable length: 1 m
• Conductor gauge: 20 AWG
• Conductor material: Copper
• Jacket material: PVC
• Max voltage: 24 V DC
• Max current: 3 A
• Shielding: Unshielded
• Operating temperature: -20°C to 70°C
• Certifications: RoHS

Our verdict

A practical solution for extending DC power in tight installations, the InLine® right-angle extension cable combines thoughtful design with dependable electrical performance.
