InLine DisplayPort 1.4-kabel, 8K4K, links gehoekt, zwart/goud, 5 m

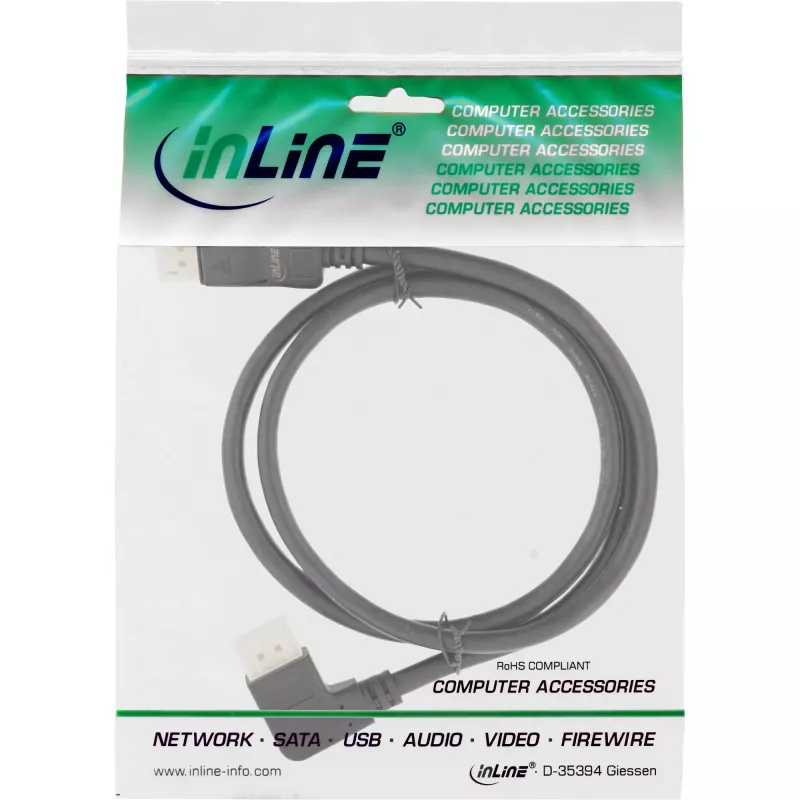

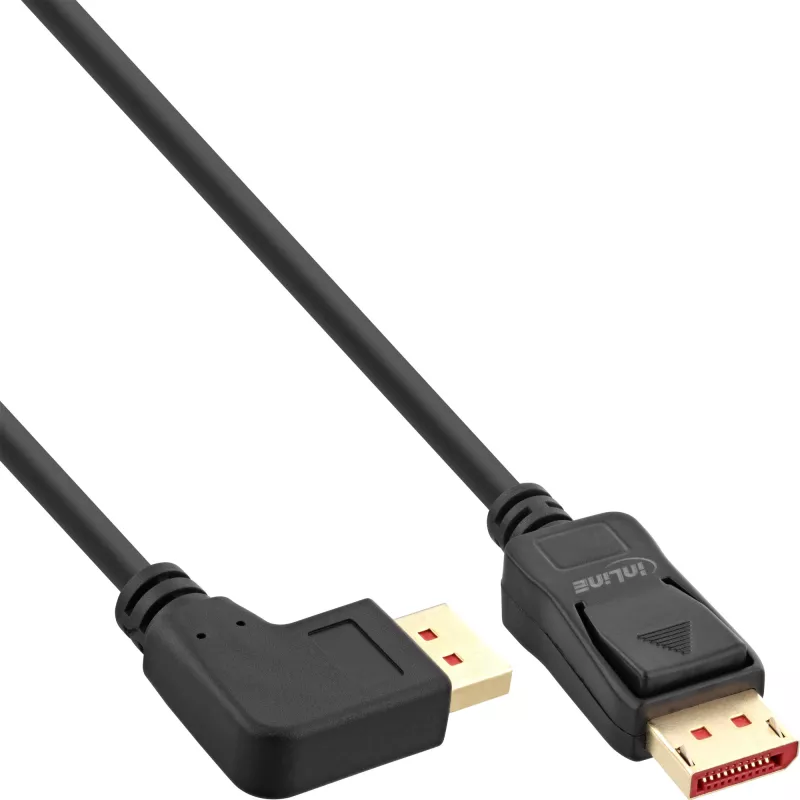

InLine DisplayPort 1.4 cable with gold-plated contacts, left-angled DisplayPort connector and straight DisplayPort connector. The 5 m black cable is triple-shielded and delivered in a resealable PE bag with EAN code. It supports a wide range of video resolutions up to 8K4K and is intended for connecting devices with DisplayPort interfaces.

Advantages

The cable uses DisplayPort 1.4 specification and triple shielding to reduce electromagnetic interference. Gold-plated contacts improve contact reliability and corrosion resistance. The left-angled connector allows installation in tight spaces or behind equipment that is placed close to walls. The 5 m length provides extended reach while maintaining supported high-bandwidth video modes.

Suitable for

• Connecting PCs or graphics cards to monitors with DisplayPort inputs
• Workstations or home setups where a left-angled connector eases cable routing
• High-resolution displays and applications requiring up to 8K or high-refresh 4K modes

Key specifications

• Standard: DisplayPort 1.4
• Connectors: DisplayPort straight to DisplayPort left-angled
• Cable length: 5 m
• Shielding: 3-fold (triple shielded)
• Contacts: Gold-plated
• Colour: Black
• Supported resolutions: UHD-II/FUHD 7680 x 4320 (8K4K) @30 Hz RGB/4:4:4 and @60 Hz RGB/4:2:0 or DSC; UHD 3840 x 2160 @120 Hz RGB/4:4:4 8-bit (HDR off); UHD 3840 x 2160 @120 Hz RGB/4:2:2 12-bit (HDR on); UHD 3840 x 2160 @60 Hz RGB/4:4:4 12-bit (HDR on); Full HD 1920 x 1080; HD 1280 x 720

How to use

Connect the straight DisplayPort end to the source device (for example, a PC or graphics card) and the left-angled DisplayPort end to the display. Ensure both device ports are free of dust and align the connector before insertion to avoid damaging the pins. For best performance, use compatible DisplayPort inputs and configure display resolution and refresh rate in the operating system or graphics driver settings.

Recommendations

For reliable high-resolution output, use this cable with devices that support DisplayPort 1.4 or DSC and set appropriate resolution/refresh rate combinations according to the display and GPU capabilities. Avoid sharp bends near the connectors and keep the cable away from strong sources of electromagnetic interference.
