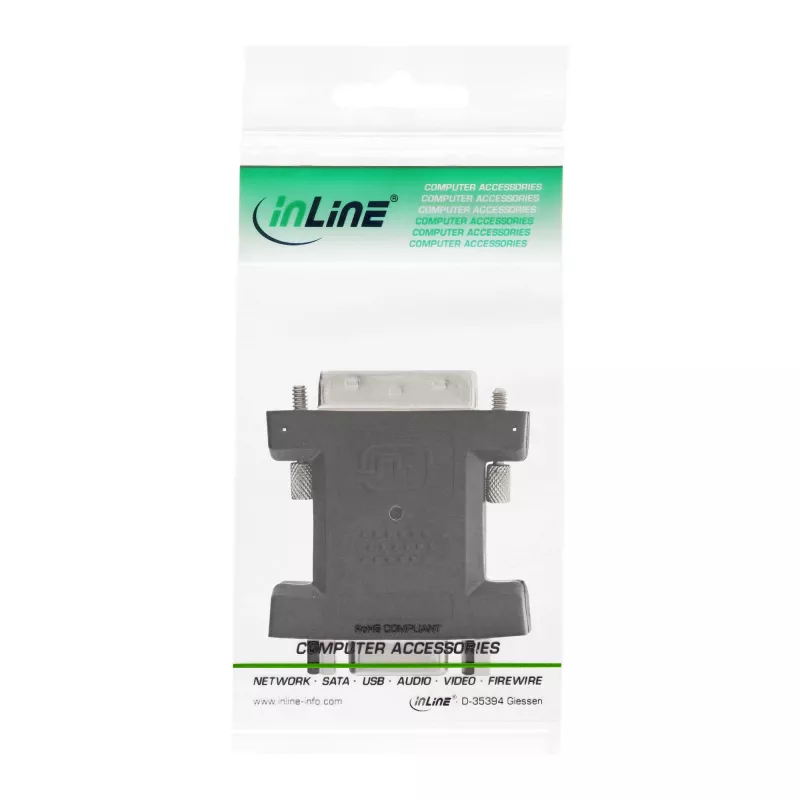

InLine DVI-A-adapter DVI 12+5 stekker / VGA 15 HD / S-VGA bus

The InLine DVI-A Adapter (model 17780) features a DVI 12+5 male connector and a VGA 15 HD female connector, enabling a direct analog video connection between DVI-A equipped graphics cards and VGA monitors. The compact, black adapter provides a simple solution for connecting legacy VGA displays to systems with DVI-A output while maintaining analog video signal integrity.

Advantages

The adapter offers straightforward plug-and-play use without additional drivers, a compact form factor for minimal desk clutter, and a direct analog connection that preserves the native VGA signal format. Its standard connectors ensure wide compatibility with DVI-A sources and VGA (D-sub) displays.

Suitable for

• Connecting DVI-A (12+5) graphics cards to VGA (15-pin HD) monitors
• Using older VGA displays with newer devices that provide DVI-A analog output
• Workstations and setups where analog video compatibility is required

Key specifications

• Brand: InLine
• Model / MPN: 17780

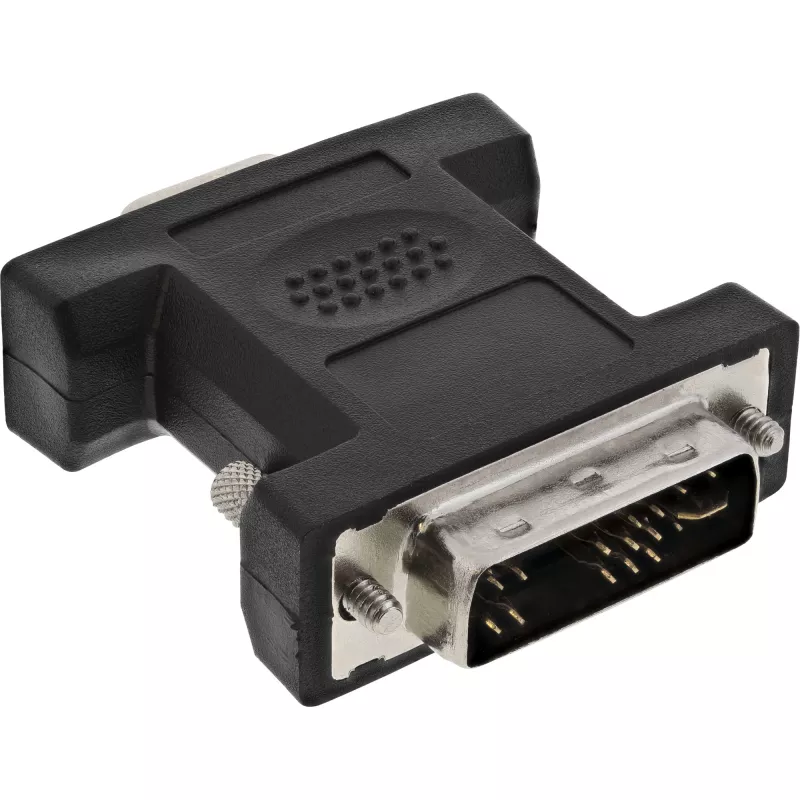

• Connector 1: DVI 12+5 (DVI-A) male

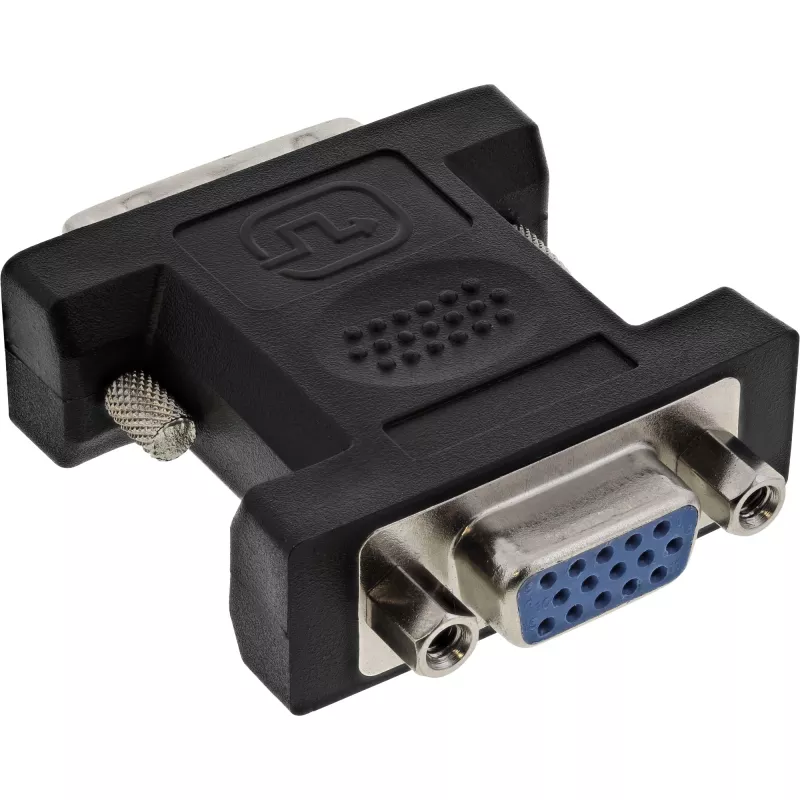

• Connector 2: VGA 15 HD (D-sub) female
• Colour: Black
• EAN: 4043718177806

How to use

Plug the DVI-A male connector into the DVI-A output on the graphics card and attach the VGA cable from the monitor to the adapter's VGA 15 HD female connector. Ensure the connections are fully seated and secure. Select the appropriate input on the monitor and configure display settings on the computer as needed to match resolution and refresh rate supported by the VGA monitor.

Recommendations

Use this adapter only when the DVI port provides an analog (DVI-A) signal; it will not convert digital-only DVI-D signals to VGA. For stable image quality, match the computer's output resolution to the native resolution of the VGA monitor and avoid forcing unsupported modes.
