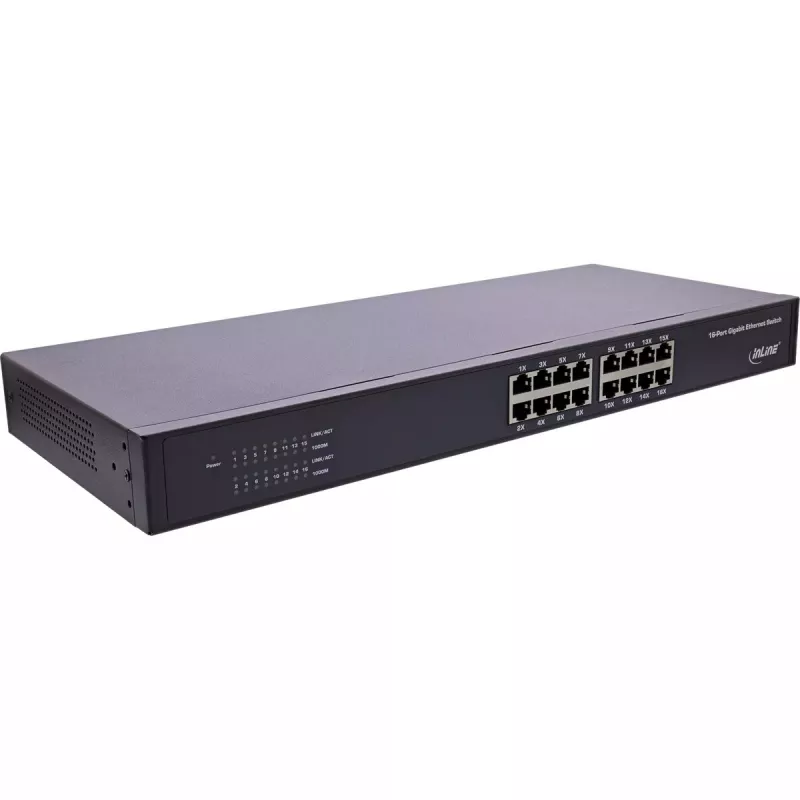

InLine Gigabit netwerkswitch 16 poorten, 1Gb/s, 19 inch 1U, ventilatorloos

16-port gigabit switchfor reliable network expansion with 1 Gb/s per port with auto-negotiation
Plug & Play and Auto MDI/MDI-X crossover detection– Each individual port automatically detects the speed of the connected devices
Green IT: Energy-saving thanks to IEEE 802.3az Energy Efficient Ethernet through cable length detection and automatic signal strength
Store-and-forward switchingto avoid corrupted packets
Freightless19" 1U housing for low noise operation

The InLine® 16-port Gigabit network switch is a powerful and uncomplicated solution for expanding existing network infrastructures. Each of the sixteen RJ45 ports automatically detects the speed of the connected devices (10/100/1000 Mb/s) and adapts flexibly in half or full duplex mode.
Thanks to Auto-MDI/MDI-X, the type of network cable used is irrelevant. The store-and-forward technology ensures efficient forwarding of data packets and prevents the transmission of faulty data. With IEEE 802.3az Energy Efficient Ethernet (EEE), cable lengths and network activities are detected to dynamically reduce energy consumption - ideal for sustainable IT environments.

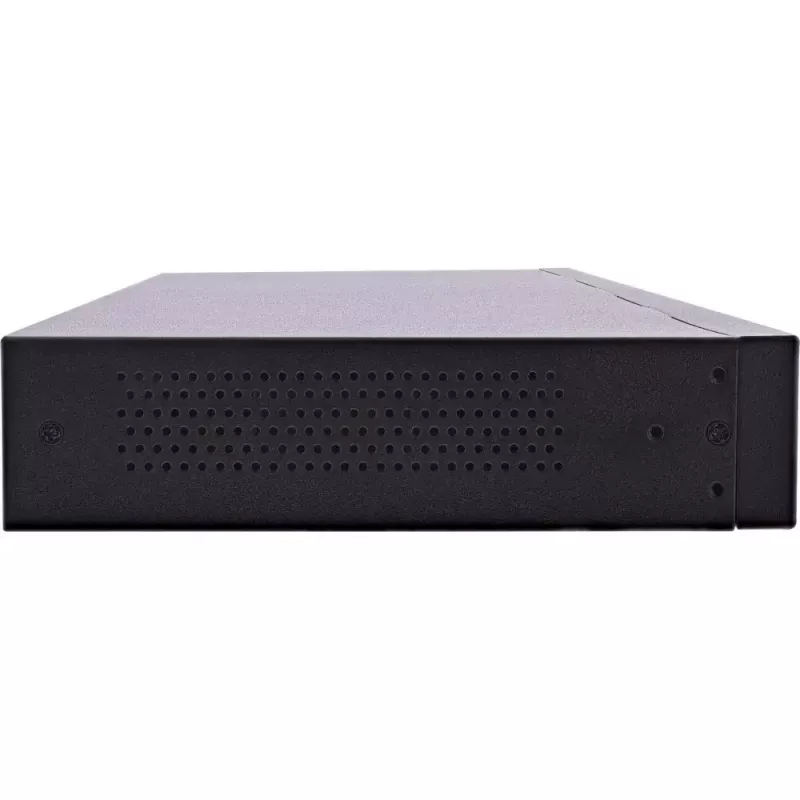

The switch is designed to be fanless and therefore quiet in operation, perfect for office, laboratory or server rack environments. The 19-inch rack mounting in 1U enables easy integration into existing structures.
Technical specifications:

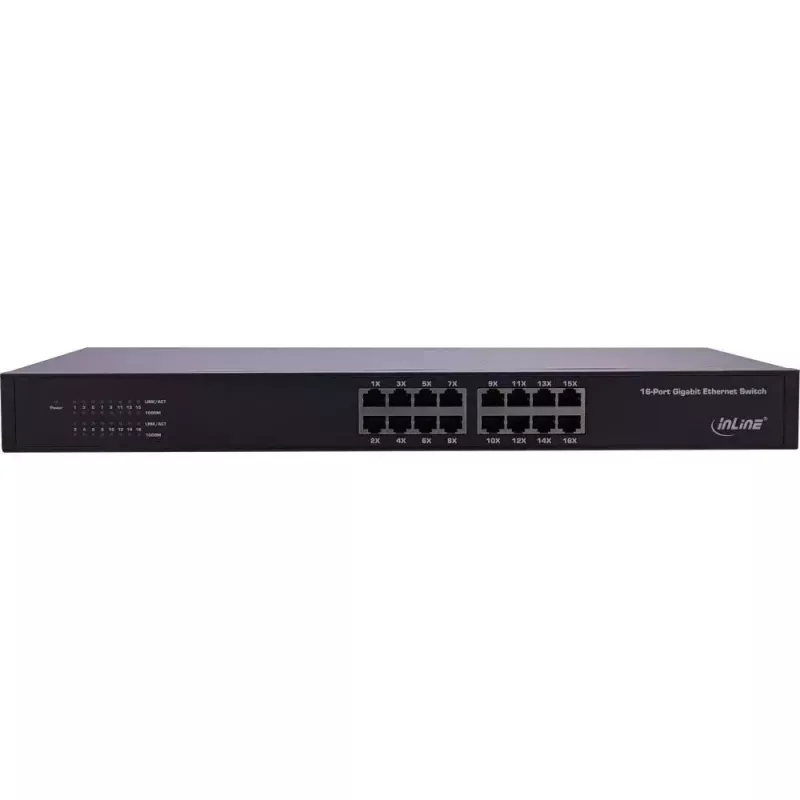

16x RJ45 ports, 10/100/1000Base-T, Auto-MDI/MDI-X
Chipsätze: RTL8382L + RTL8218D + 2x RTL8231
Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az
Store-and-forward switching
MAC address table: 8K, auto-learning & auto-update
Jumbo frame: 9216 bytes
Bandwidth: 32 Gbit/s
LED indicators: PWR, LNK/ACT
Network cable: Cat. 5/5e or higher (up to 100 m)
Dimensions: 480 x 180 x 44 mm
Weight: approx. 2.15 kg

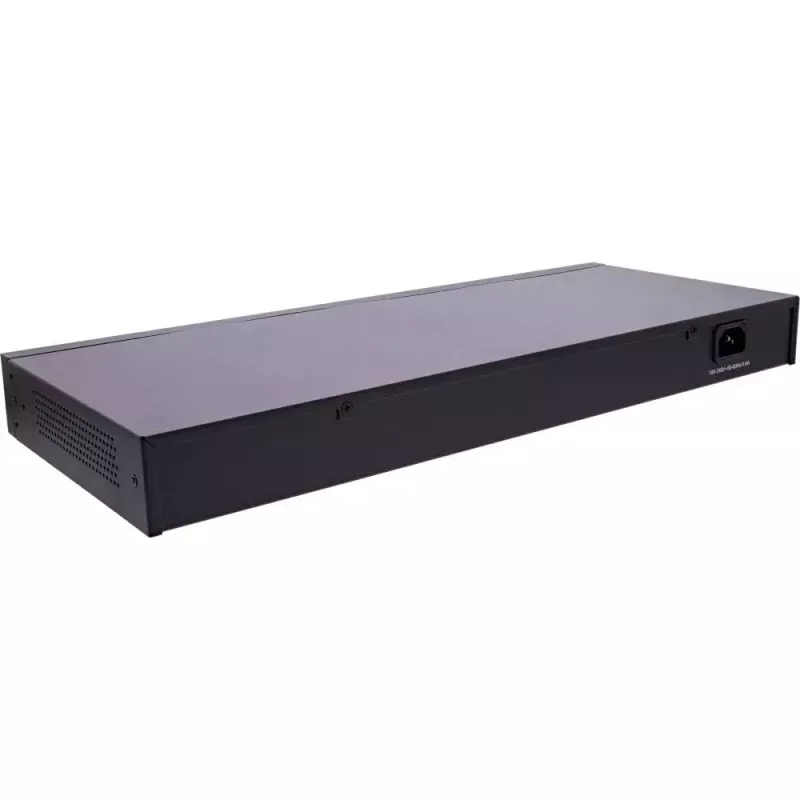

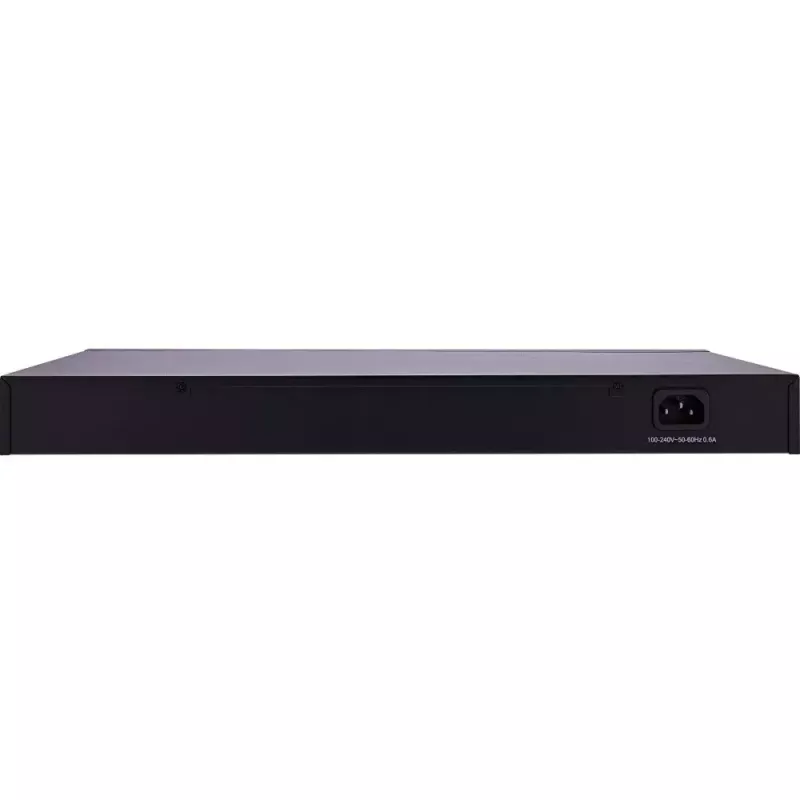

Power supply: 100–240V AC, 50/60 Hz
Max. Power consumption: 21 W
Operating temperature: 0–40 °C
Storage temperature: -40–70 °C
Humidity: operation 10–90 %, storage 5–90 % (non-condensing)

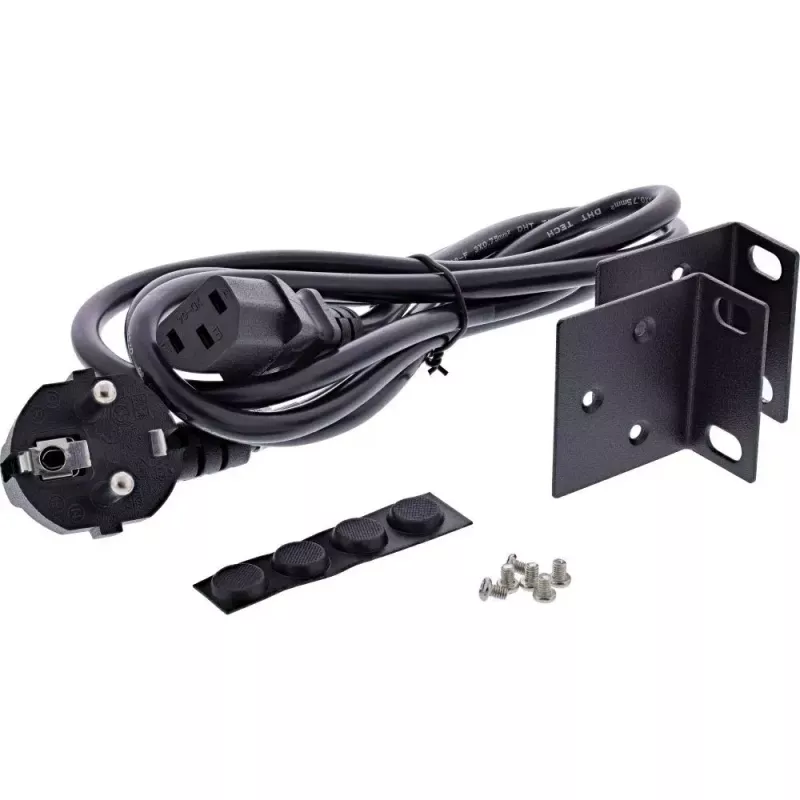

Scope of delivery:

1x InLine® PoE+ Gigabit network injector hub 8 port
2x operating instructions (German/English)
1x power supply
2x 19" mounting bracket
6x screws for the mounting brackets
4x rubber feet

InLine Gigabit Network Switch 16-Port, 1Gb/s, 19" 1U, fanless. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x. Power connector: AC-in jack. Rack mounting, Form factor: 1U

How to use

Mount the switch in a 19" 1U rack or place it on a flat surface. Connect network devices to the RJ-45 ports using standard Ethernet cables; Auto MDI/MDI-X handles crossover detection automatically. Power on the switch and allow a short time for each port to auto-negotiate link speed and duplex. Monitor link LEDs to confirm successful connections. The switch requires no additional configuration for basic layer-2 switching.

Recommendations

For optimal energy savings, use cables with appropriate lengths and place the switch in a location with adequate ventilation despite its fanless design. Regularly check firmware and network settings of connected devices if integrating into larger managed networks.
