InLine HDMI AOC-kabel, Ultra High Speed HDMI, 8K4K, afneembare stekker, 20m

Flexible installation thanks to narrow installation paths:Removable HDMI A and HDMI D connectors allow easy routing through cable ducts – ideal for AV installations.
Loss-free signal quality:Active optical HDMI 2.1 technology enables high-resolution video and audio signals in the highest quality.
Versatile combination options:4-in-1 solution – can be used as HDMI-A/D in both directions, ideal for different connection environments.
Industrial-grade design:Hybrid construction made of fibre optic and copper with aramid protection, gold-plated contacts and robust metal connectors.
Future-proof equipment:Supports 8K@60Hz, 4K@120Hz, HDR, eARC, CEC, HDCP and much more – for professional AV and IT applications.

The InLine® HDMI AOC cable with detachable HDMI plugs is the well-designed solution for professional AV installations with the highest demands on resolution, flexibility and signal quality. Thanks to active optical transmission via fibre optics, it ensures stable, loss-free signal transmission – ideal for digital signage systems, conference rooms or home cinema systems.
The hybrid design of fibre optic and copper, combined with aramid protective braiding and gold-plated contacts, ensures maximum robustness, durability and minimal signal interference. The HDMI A and HDMI D connectors can be removed without tools, making installation in tight spaces particularly easy – perfect for cable ducts, cabinets and flush-mounted solutions.
The cable supports HDMI 2.1 features such as 8K at 60 Hz or 4K at 120 Hz, Dynamic HDR, eARC, HDCP 2.3 and much more, making it ideally equipped for future requirements in presentation technology, entertainment, streaming or broadcasting. The 4-in-1 connection options offer maximum flexibility in practice.

HDMI version: HDMI 2.1 (Ultra High Speed HDMI)
Transmission rate: up to 48 Gb/s
Construction: 4 glass fibres + 7 copper conductors, hybrid
Diameter: 4.8 mm
Temperature range: operation 0 °C to +50 °C, storage -20 °C to +70 °C

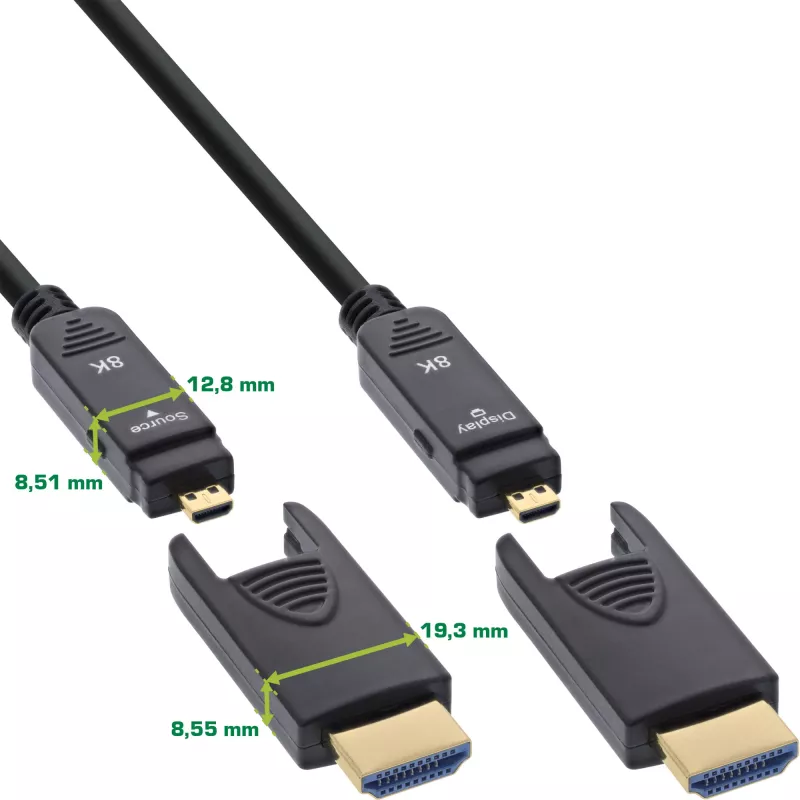

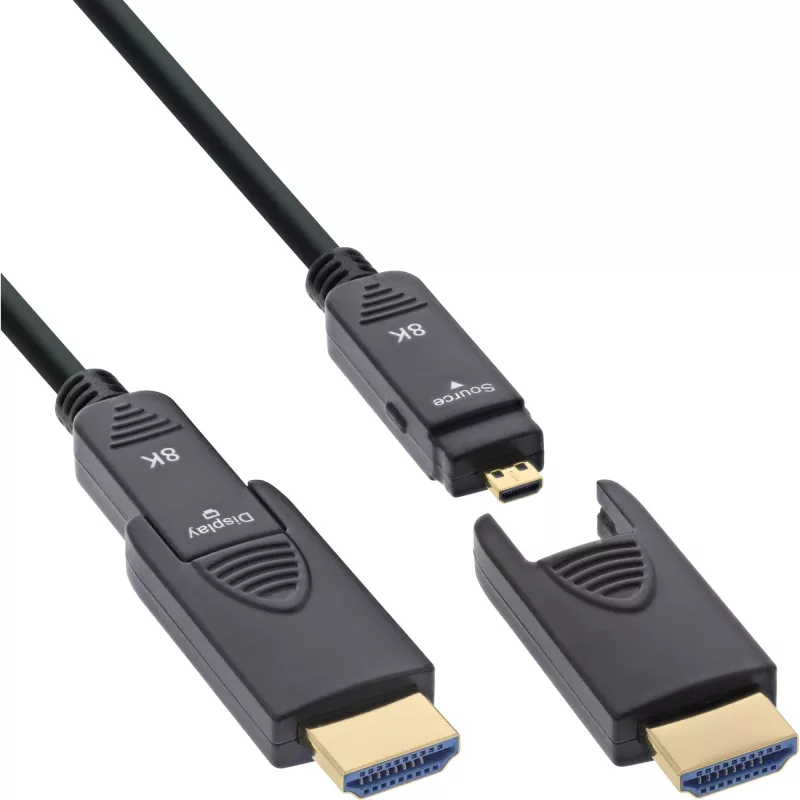

Connector: HDMI-A (standard), HDMI-D (micro), detachable
Supported functions: HDR, eARC, HDCP, CEC, DDC, EDID, 3D, Dynamic HDR
Directional (source → display)
Contact material: gold-plated
Connector housing: metal, aramid-protected

InLine HDMI AOC cable, Ultra High Speed HDMI, 8K4K, detachable plug, 20m. Cable length: 20 m, Connector 1: HDMI Type-A/HDMI Type-D, Connector 1 gender: Male, Connector 2: HDMI Type-A/HDMI Type-D, Connector 2 gender: Male, Connector contacts plating: Gold, HDMI version: 2.1, 3D, Data transfer rate: 48 Gbit/s, Audio Return Channel (ARC), Product colour: Black

How to use

Determine the required connector combination (HDMI-A or HDMI-D) and attach the appropriate detachable plug ends before threading the cable through narrow ducts. Connect the HDMI plug labelled for the source to the output device (e.g., Blu-ray player, console, PC) and connect the other end to the display or receiver. Ensure proper seating of the metal connectors and avoid sharp bends; the cable is directional, so verify signal flow from source to display. No external power supply is required for normal operation. Follow device menus to enable eARC, HDR or specific audio/video formats if supported.

Recommendations

Use the InLine HDMI AOC cable for permanent or semi-permanent installations where high bandwidth, long reach and flexibility are required. Avoid tight coiling and excessive mechanical stress on detachable plugs; maintain operating temperature within the specified range for reliable performance.
