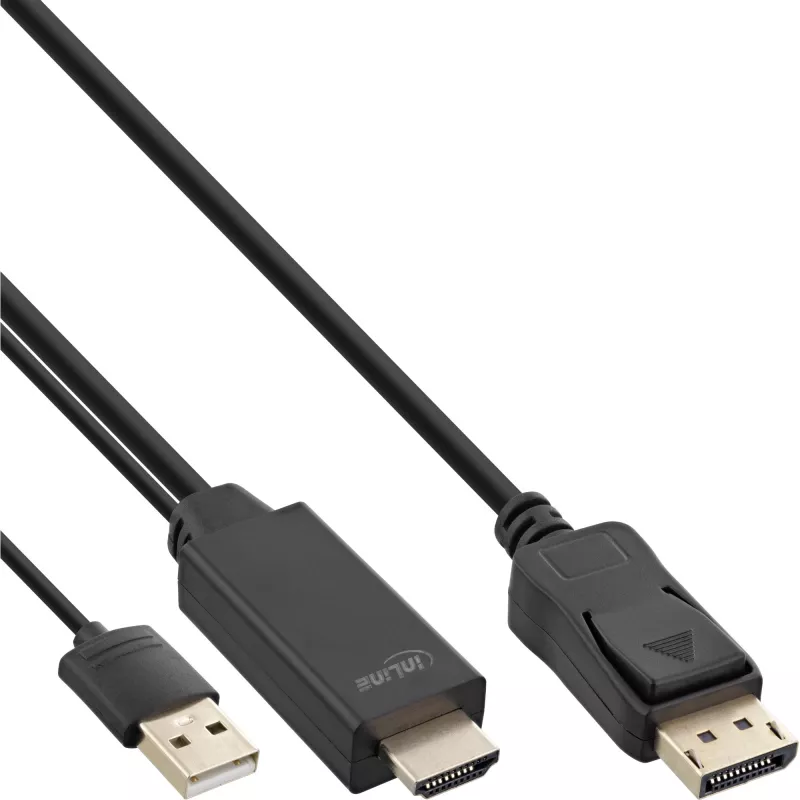

InLine HDMI naar DisplayPort-converterkabel, 4K, zwart/goud, 0,5 m

The InLine HDMI to DisplayPort Converter Cable 4K black/gold 0.5m converts an HDMI graphics output into a DisplayPort signal to connect HDMI sources to DisplayPort monitors. The cable supports resolutions up to 4K and has a 0.5 m length. An additional USB power supply (5V/500mA) on the HDMI side is required for the active conversion.

Advantages

This converter cable enables direct connection from HDMI sources to DisplayPort displays without a separate adapter box. The integrated USB power connector supplies the extra 5V/500mA required for electronic signal conversion when needed. The 0.5 m length offers compact installation and reduced cable clutter, while the black/gold finish provides a durable appearance. UL certification indicates compliance with recognized safety standards.

Suitable for

• Connecting laptops with HDMI output to DisplayPort monitors
• Using gaming consoles or media players with DisplayPort displays
• Desktop PCs with HDMI graphics output to DisplayPort-equipped monitors

Key specifications

• Cable length: 0.5 m
• Connector 1: DisplayPort (male)
• Connector 2: HDMI (male) + USB (power)
• Maximum resolution: up to 4K
• Power requirement: USB 5V / 500 mA on HDMI side
• Colour: Black (gold-plated contacts)
• Brand: InLine, MPN: 17166P, EAN: 4043718292585

How to use

Connect the DisplayPort end to the monitor and the HDMI end to the HDMI source device. If the monitor does not receive a signal, connect the USB plug to a 5V/500mA USB power source (such as a USB port on the source device or a USB power adapter) to supply power for the active conversion. After all connections are made, set the monitor input to DisplayPort and configure the source device’s display settings as needed.

Recommendations

For reliable 4K output, use a USB power source that can provide the specified 5V/500mA. Avoid long extension cables and ensure firmware/drivers on source devices are up to date for best compatibility.
