InLine industrie-netwerkkabel, M12 4-polig D-gecodeerd stekker naar RJ45, PUR 5 m

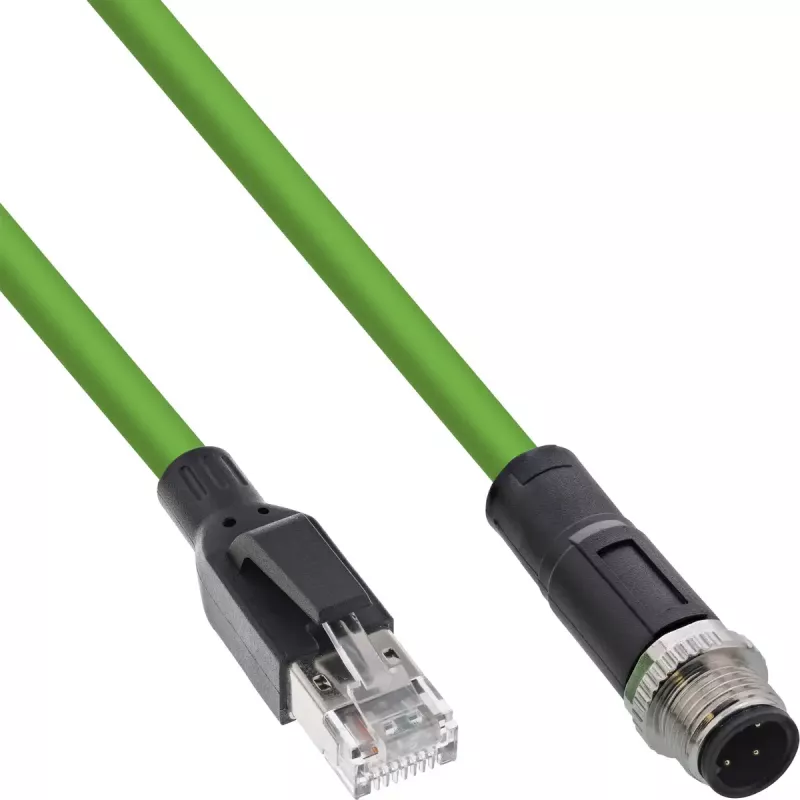

The InLine Industrial network cable M12 4-pin D-coded male plug to RJ45 PUR 5m is a 5-metre industrial Ethernet cable designed for reliable data transmission in demanding environments. It features D-coded CAT5E performance for data rates up to 100 Mbit/s, an IP67-rated M12 4-pin D-coded male connector on one end and an RJ45 plug on the other. The PUR jacket is halogen-free, flame-retardant (UL 94), oil- and UV-resistant and provides abrasion and chemical resistance suitable for automation and machine-building applications.

Advantages

The cable combines industrial-grade mechanical endurance with stable signal quality: drag-chain suitability up to 10 million bending cycles and torsion resistance up to 3 million cycles reduce maintenance and downtime in moving applications. The M12 connector side with IP67 protection allows use in damp or dusty conditions, while the RJ45 side (IP20) connects to standard network equipment. The PUR sheath and SF/UTP shielding provide resistance to oils, abrasion and electromagnetic interference, supporting consistent performance in production and fieldbus environments.

Suitable for

• Industrial Ethernet links in automation and control systems
• Connection between sensors, actuators and industrial switches
• Fieldbus and machinery cabling with moving parts or drag chains
• Production lines and factory-floor network segments exposed to oil or dust

Key specifications

• Cable length: 5 m
• Performance class: D-coded CAT5E, up to 100 Mbit/s
• Conductor: AWG 24 (22 AWG equivalent two-pair performance)
• Shielding: SF/UTP
• Connector 1: M12 4-pin D-coded male, IP67
• Connector 2: RJ45, IP20
• Sheath material: PUR, halogen-free, flame-retardant (UL 94), oil- and UV-resistant, abrasion-resistant
• Drag-chain suitability: up to 10 million bending cycles
• Torsion resistance: up to 3 million cycles
• Operating temperature: -25 °C to +70 °C
• Storage temperature: -40 °C to +80 °C
• Outlet diameter: 6.5 mm
• Cable colour: green

How to use

Connect the M12 4-pin D-coded male plug to the corresponding M12 female port on industrial devices, sensors or actuators ensuring correct D-coding alignment. Insert the RJ45 connector into standard Ethernet ports on switches or controllers. Route the cable following recommended bending radii: maintain a dynamic bending radius greater than 98 mm and a static bending radius greater than 52 mm. For moving installations use appropriate cable carriers or drag chains and avoid sharp edges to preserve the PUR jacket.

Recommendations

For reliable long-term performance, secure strain relief at both ends, avoid excessive tensile stress and ensure connectors are fully mated. When used in drag chains, verify that the chain design supports the specified bending and torsion cycles. Avoid prolonged exposure to temperatures outside the specified range and protect the RJ45 side from direct water exposure since it is rated IP20.
