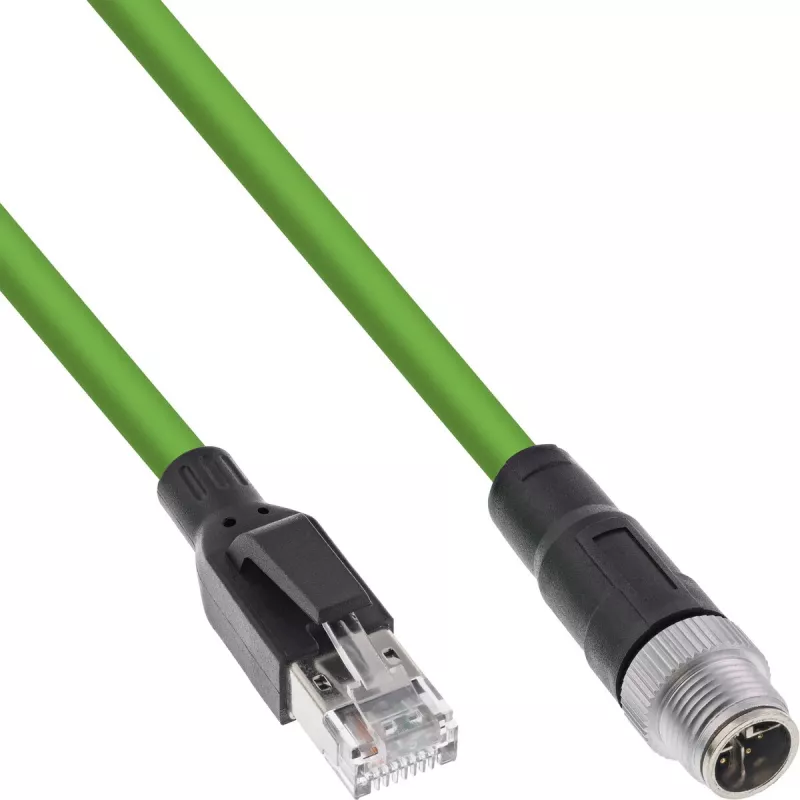

InLine industriële netwerkkabel, M12 8-polig X-gecodeerd naar RJ45-stekker, Cat.6A PUR 20m

High-quality industrial network cable with X-coded CAT6A performancefor data rates of up to 10 Gbit/s
Drag chain suitableup to 10 million bendsand torsion resistantup to 3 million cyclesfor industrial use
IP67 waterproof M12 connector- ideal for harsh and humid environments
PUR jacket: Flame-retardant (UL 94), oil-resistant, UV-resistant, abrasion-resistant and halogen-free
Optimized for automation and fieldbus technology, ideal for mechanical engineering, production lines and industrial networks

The InLine® industrial network cable M12 8-pin X-coded plug to RJ45 plug, Cat.6A, PURhas been specially developed for industrial applications that require high data transmission rates and a robust connection. The PUR jacketensures high resistance to chemicals, mechanical stress and extreme temperatures. Thanks to its drag chain suitability (up to 10 million bends) and torsion resistance (up to 3 million bends), this cable is ideal for demanding automation and fieldbus technology environments.
The high protection class of the M12 connector (IP67)ensures reliable data transmission even in damp or dusty environments. With Cat.6A performance, the cable enables transmission rates of up to 10 Gbit/s, which ensures stable and fast communication.
Whether for use in production facilities, automation technology or demanding industrial networks, the InLine® industrial network cableimpresses with its quality, durability and reliable data transmission.
Technical specifications:

Wire cross-section: 26 AWG
Sheath material: PUR, halogen-free, flame-retardant (UL 94), UV and oil-resistant
Plug type: M12 8-pin X-coded (IP67) to RJ45 (IP20)
Certifications: Flame retardant according to UL 94
Shielding: S/FTP
Dynamic bending radius: >64 mm
Static bending radius: >32 mm
Operating temperature: -20 to +80 °C
Storage temperature: -20 to +80 °C
Outlet diameter: 6.4 mm
Color: green

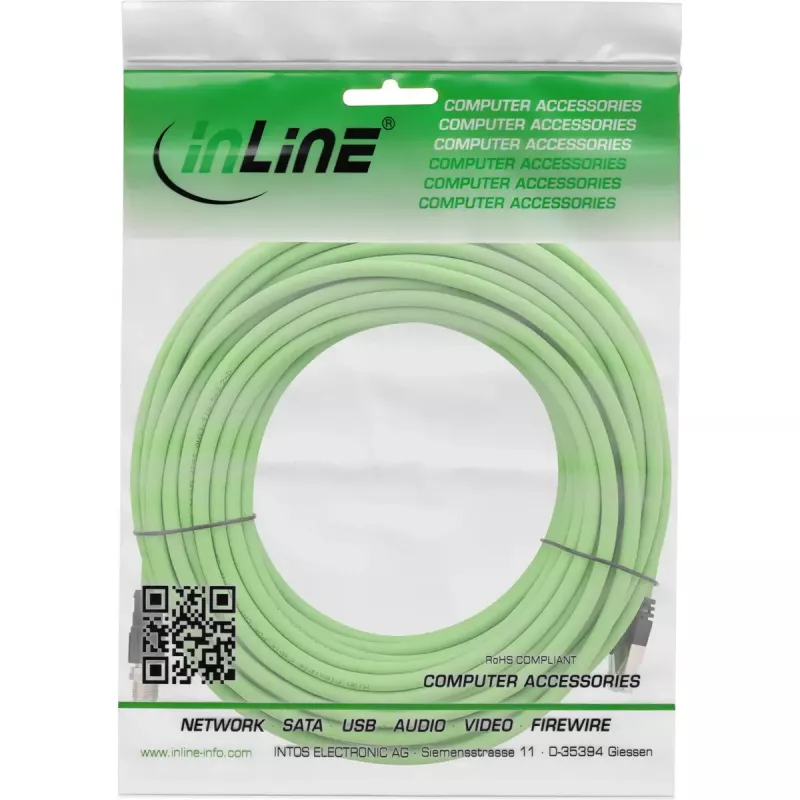

InLine Industrial network cable, M12 8-pin X-coded to RJ45 plug, Cat.6A PUR 20m. Cable length: 20 m, Connector 1: M12, Connector 2: RJ-45. Package width: 305 mm, Package depth: 330 mm, Package height: 55 mm

How to use

Connect the M12 8-pin X-coded plug to the corresponding M12 X-coded socket on your industrial equipment and plug the RJ45 connector into the network device or switch. Ensure connectors are fully engaged and, where applicable, secure the M12 threaded coupling to maintain IP67 protection. Route the cable with respect to the specified bending radii and attach to drag chains or cable guides as required for moving applications.

Recommendations

For reliable long-term performance, avoid exceeding the specified dynamic and static bending radii and follow the cable routing guidelines for drag chains. Use the M12 side in exposed or damp areas where IP67 protection is required and keep the RJ45 side in protected enclosures (IP20). Inspect connectors periodically for wear and clean contacts if contamination is present.
