InLine installatiekabel Cat.7a PiMF 4x2x0.58 AWG23, 1200MHz, LSZH, 100m

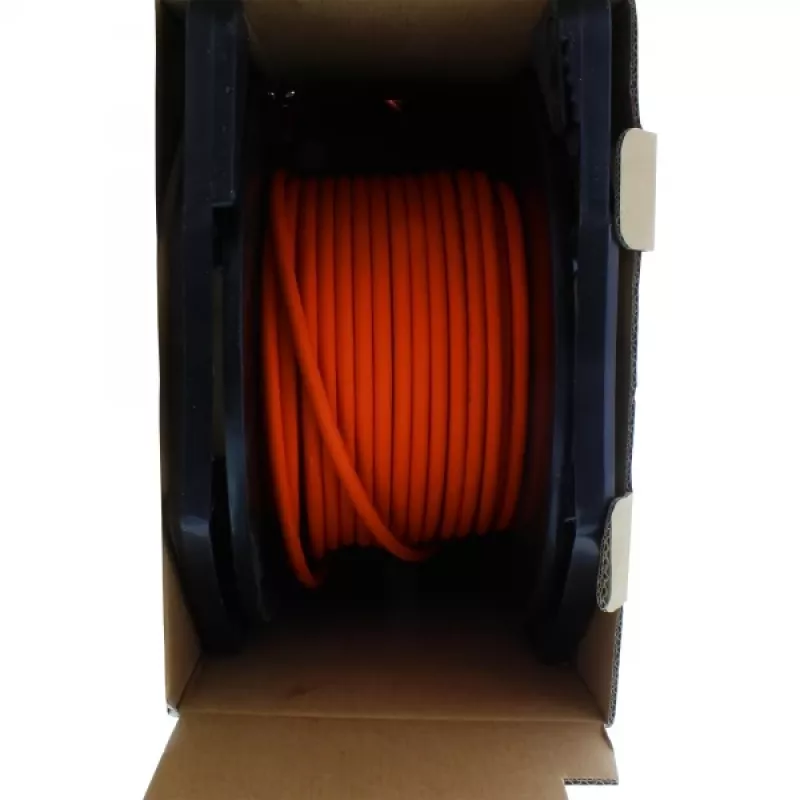

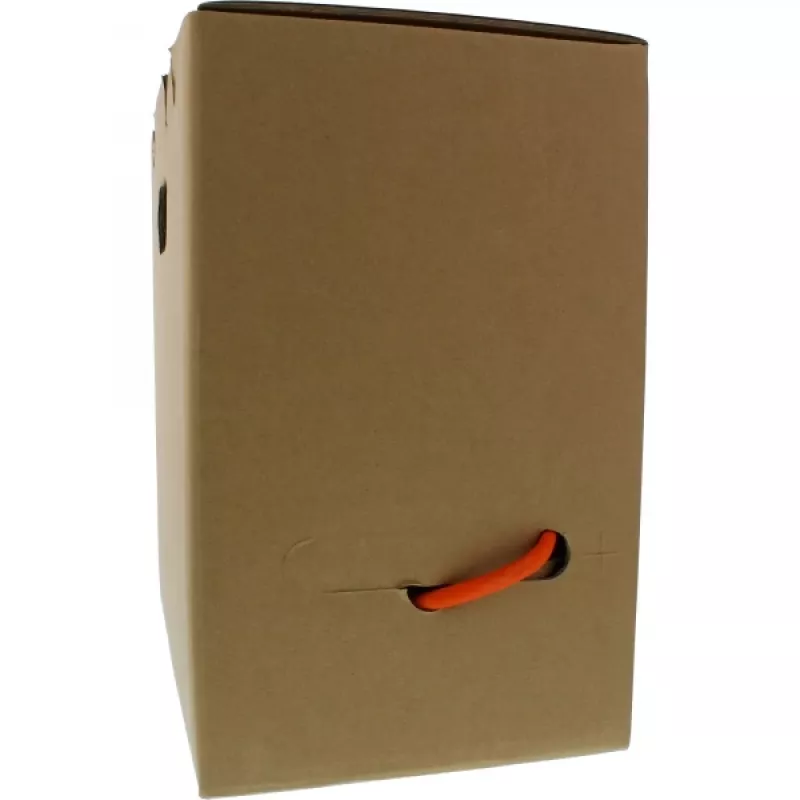

The InLine Installation cab Cat.7a PiMF 4x2x0.58 AWG23 1200MHz LSZH 100m is a 100 m installation cable delivered in a drum box that keeps the cable rolled on a plastic roller fixed inside a cardboard carton for controlled unwinding and protection. The cable is Category 7a PiMF (pairs in metal foil) supporting frequencies up to 1200 MHz, constructed as 4x2xAWG23/1 S-FTP with full copper conductors, an overall braid shielding and an orange LSZH jacket. Meter-printing on the sheath allows easy length reference during installation.

Advantages

The drum box packaging enables easier handling on site without additional drum tooling, reduces the risk of pollution and mechanical damage to the cable, and is lightweight and stackable for transport in construction vehicles or parcel shipment. The cable’s full copper conductors, PiMF and overall braid shielding provide reduced interference and support up to 10 Gbit/s. Halogen-free LSZH jacket and reaction to fire class Eca (EN 50575:2014/A1:2016) meet safety requirements for installations.

Suitable for

• Structured cabling for high-speed networks (up to 10 Gbit/s)
• Horizontal and vertical installation runs in commercial and industrial buildings
• Environments requiring low-smoke, halogen-free cabling
• Sites where visible cable identification is needed (orange sheath)

Key specifications

• Category: Cat.7a installation cable, up to 1200 MHz

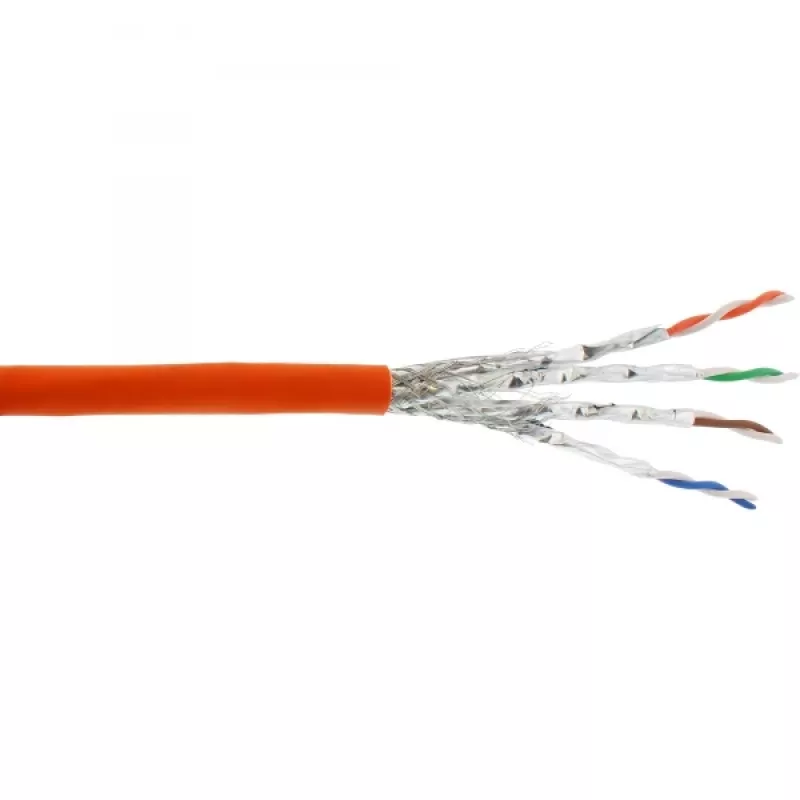

• Construction: 4x2xAWG23/1 S-FTP, pairs in metal foil (PiMF) with overall braid
• Conductors: full copper
• Impedance: 100 Ω
• DC resistance: max. 87 Ω/km
• Diameter: approx. 8.2 mm
• Jacket: LSZH (halogen-free), orange
• Temperature range: installation 0 °C to 50 °C, operation -20 °C to 60 °C
• Fire reaction: Eca (EN 50575:2014/A1:2016)
• Length: 100 m (drum box packaging; drum box available for 50 m, 100 m, 300 m; 500 m supplied on cable drum)

How to use

Remove the plastic roller from the cardboard box and pull the cable to the required length using the meter-printing on the sheath as a reference. Fix the cable according to standard installation practices, avoiding sharp bends and excessive tensile force. Terminate and test the cable with compatible Cat.7a connectors and certification testers to verify performance up to the specified frequency and data rates.

Recommendations

Use the drum box packaging for shorter installation runs to reduce handling time; for longer bulk runs (500 m) use a cable drum. Store and install the cable within the specified temperature range and follow local regulations for fire safety and cable routing.
