InLine installatiekabel Cat.7a, S/FTP (PiMF) 4x2x0.58 AWG23 1200MHz B2ca 25m

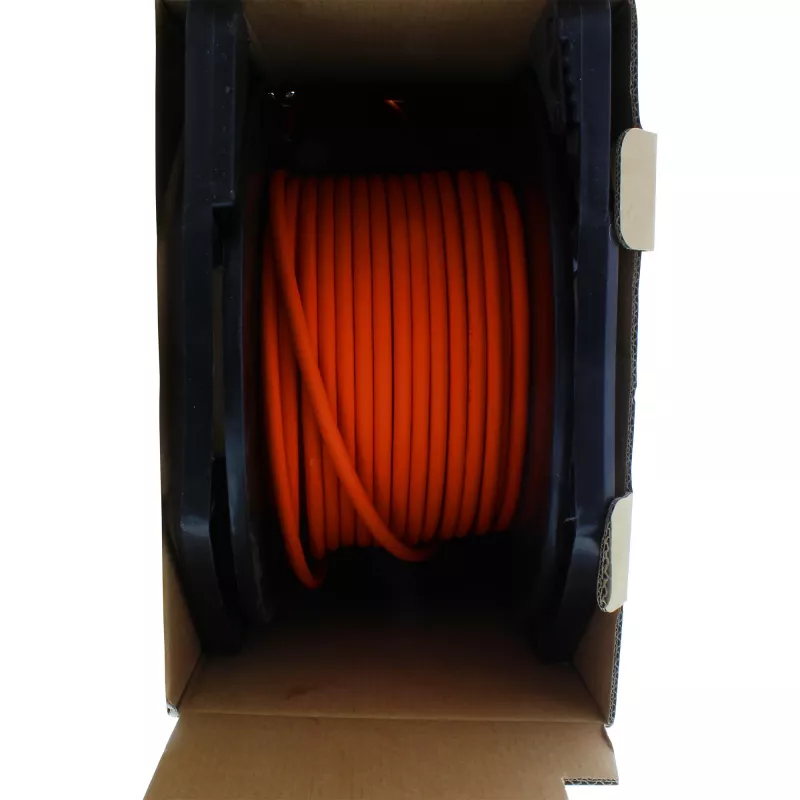

The InLine installation cable Cat.7a S/FTP (4x2x0.58 AWG23) is supplied wound on a plastic reel fixed inside a reinforced cardboard drum box to allow easy, tangle-free removal of the required length. This packaging protects the cable during transport and storage, reduces handling effort on site and makes the product handy to carry and stack. The cable is designed for structured building installation and supports data transmission up to 10 Gbit/s with a frequency range up to 1200 MHz.

Advantages

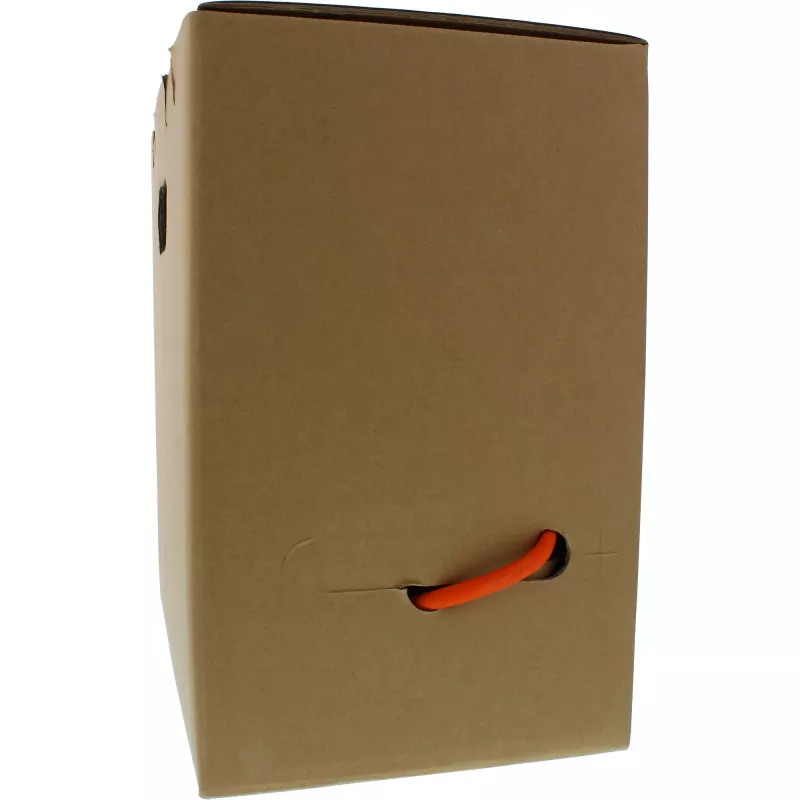

The drum box enables simple handling on construction sites without the need for additional unwinding devices, which helps reduce labour and equipment costs. The packaging is lightweight and stackable for convenient transport and parcel shipment. Cardboard protection minimises soiling and transport damage, and the remaining-metre indication on the cable simplifies precise cutting and installation for smaller lengths.

Suitable for

• Structured network installations in commercial and residential buildings
• High-speed Ethernet up to 10 Gbit/s
• Long runs where organised cable dispensing is required
• Installations that require LSZH (halogen-free) sheathing and fire class B2ca

Key specifications

• Cable type: Cat.7a S/FTP installation cable
• Construction: 4x2xAWG23/1 PIMF (0.58 mm²) with full copper conductors
• Bandwidth: up to 1200 MHz; suitable up to 10 Gbit/s
• Impedance: 100 Ω; DC resistance: max. 93.8 Ω/km

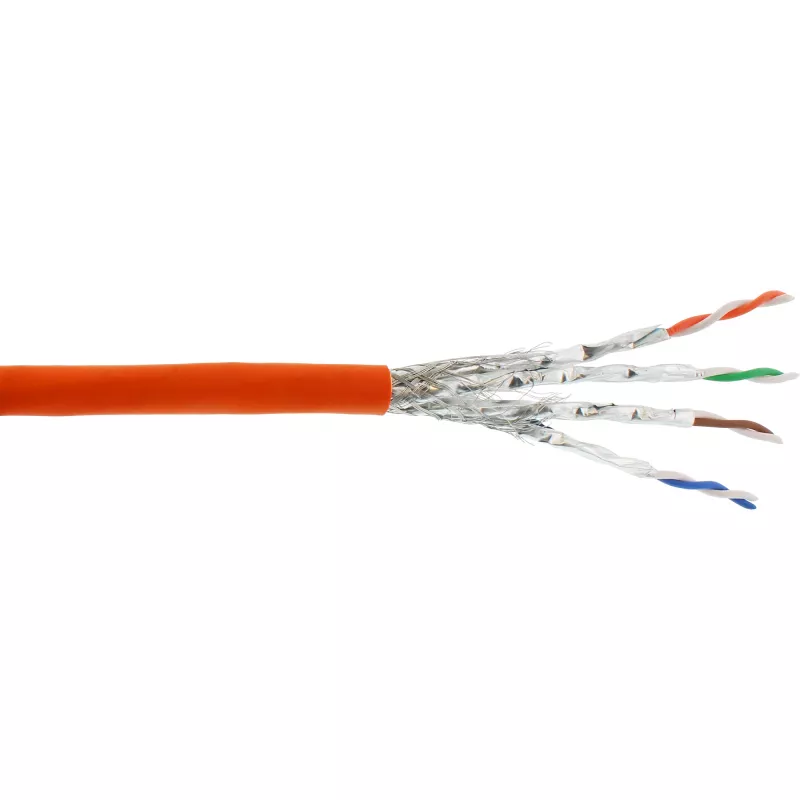

• Overall braided shielding and foil around pairs (S/FTP)
• Sheath: halogen-free LSZH; colour: orange
• Cable diameter: approx. 7.8 mm
• Temperature range: installation 0 °C to 50 °C; operating -20 °C to 60 °C; storage -20 °C to 50 °C
• Fire behaviour: B2ca according to EN 50575:2014/A1:2016
• Packaging/lengths: drum box available for 50 m, 100 m, 300 m; 500 m delivered on drum; 10 m and 25 m delivered in box

How to use

Place the drum box on a stable surface and unroll the cable from the plastic reel to the required length, using the remaining-metre indication to measure accurately. Cut the cable with appropriate tools and terminate with compatible RJ45 connectors or keystone jacks following standard termination procedures for S/FTP Cat.7a cables. Observe the recommended installation temperature range and avoid tight bends or crushing during routing to maintain electrical performance.

Recommendations

For best results, perform testing after termination using a certified cable tester to verify continuity, pair integrity and alien crosstalk performance. Store the drum box in a dry, temperate place within the specified storage temperature range and protect the cable from direct UV exposure if left outdoors for extended periods.
