InLine netwerkswitch 8-poorts, 1 Gbit/s, desktop, metaal, ventilatorloos, afgeschermde poorten

The InLine Network Switch 8-Port 1Gb/s is a compact, fanless desktop switch with eight shielded Gigabit Ethernet (10/100/1000) RJ45 ports. The metal housing and pre-punched holes on the underside allow desktop placement or wall mounting. The switch supports standard Ethernet protocols including IEEE 802.3, 802.3u, 802.3x and 802.3z and provides a MAC address table for 1,000 entries with store-and-forward transmission.

Advantages

This fanless switch delivers silent operation and reliable Gigabit connectivity across eight shielded ports. Auto-Negotiation and Auto MDI/MDIX simplify connections, while IEEE 802.3x flow control and asymmetric flow control improve traffic handling. Its compact metal enclosure, low weight and wall-mount capability increase installation flexibility.

Suitable for

• Small office or home office networks
• Desktop or wall-mounted network expansion
• Connecting computers, printers and NAS devices
• Environments requiring silent, fanless operation

Key specifications

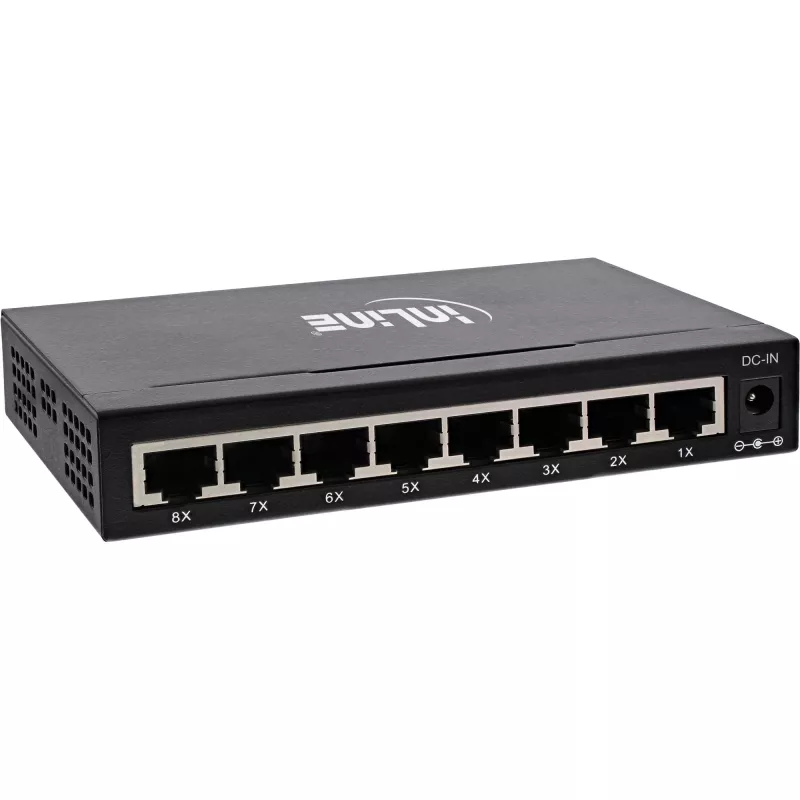

• Ports: 8 × 10/100/1000 Mb/s Auto-Negotiation RJ45 (Auto MDI/MDIX)
• Backbone bandwidth: 1 Gbps
• MAC address table: 1,000 entries
• Forwarding rate: 10Base-T — 14,880 pps/port; 100Base-TX — 148,800 pps/port
• Transmission method: Store-and-forward
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z; CSMA/CD, TCP/IP
• Cabling: 10Base-T — UTP Cat.3–5 or STP 100Ω (max 100 m); 100Base-TX — UTP Cat.5/5e+ or STP 100Ω (max 100 m)

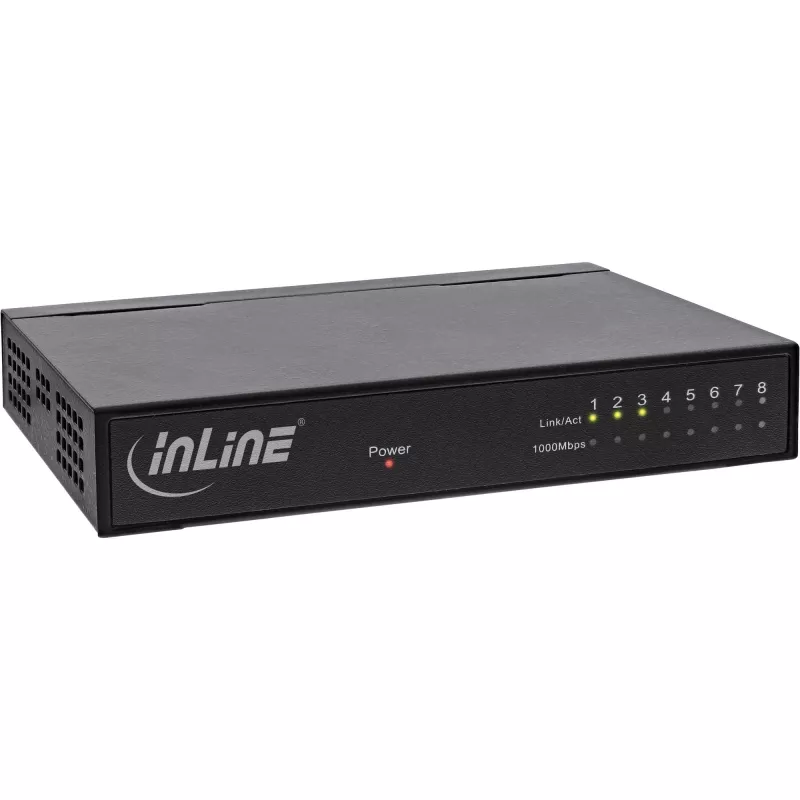

• LED indicators: Power, Link/Act, 1000M
• Dimensions: 92 × 67 × 29 mm (W×D×H); Weight: 161 g
• Power: AC adapter 12 V, 0.5 A
• Operating temperature: 0 °C to 40 °C; Storage temperature: −40 °C to 70 °C
• Humidity: Operating 10%–90% non-condensing; Storage 5%–90% non-condensing

How to use

Place the switch on a flat surface or mount it on a wall using the pre-punched holes on the underside. Connect network devices to the RJ45 ports; the switch will automatically negotiate link speed and polarity (Auto-Negotiation and Auto MDI/MDIX). Use appropriate UTP or STP cabling and keep cable runs within the 100 m maximum. Connect the supplied 12 V, 0.5 A AC adapter to the power input and verify LED indicators for power and link activity.

Recommendations

For reliable performance, install the switch in a ventilated, dry environment within the specified temperature and humidity ranges. Use Cat.5e or better cables for Gigabit links and avoid routing cables near strong electromagnetic sources. Regularly check LED indicators and ensure the AC adapter meets the specified output.
