InLine outdoor installatiekabel S/FTP PiMF Cat.7a AWG 23 koper 1200 MHz PE, 300m

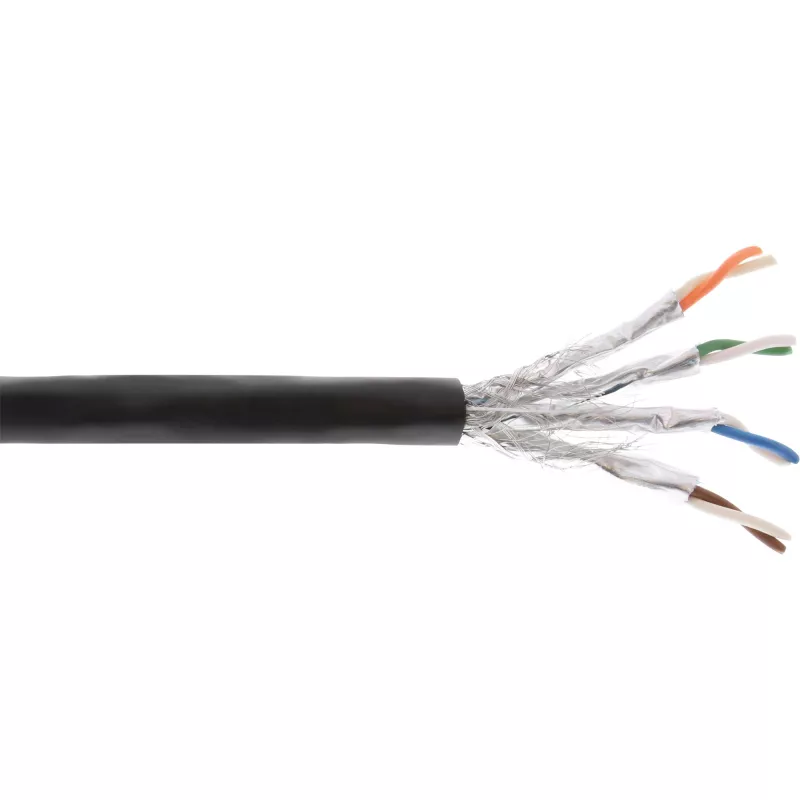

The InLine Outdoor Install. Cable S/FTP PiMF Cat.7a AWG 23 Copper 1200 MHz PE 300m is an installation cable supplied on a drum box that allows convenient withdrawal of the required cable length. The cable features full copper conductors, an S/FTP (pairs in metal foil plus overall braid) shielding construction, a polyethylene (LDPE) UV-resistant sheath and a printed meter marking on the jacket. It is designed for outdoor installation and supports high-speed links up to 10 Gbit/s with a bandwidth rated to 1200 MHz.

Advantages

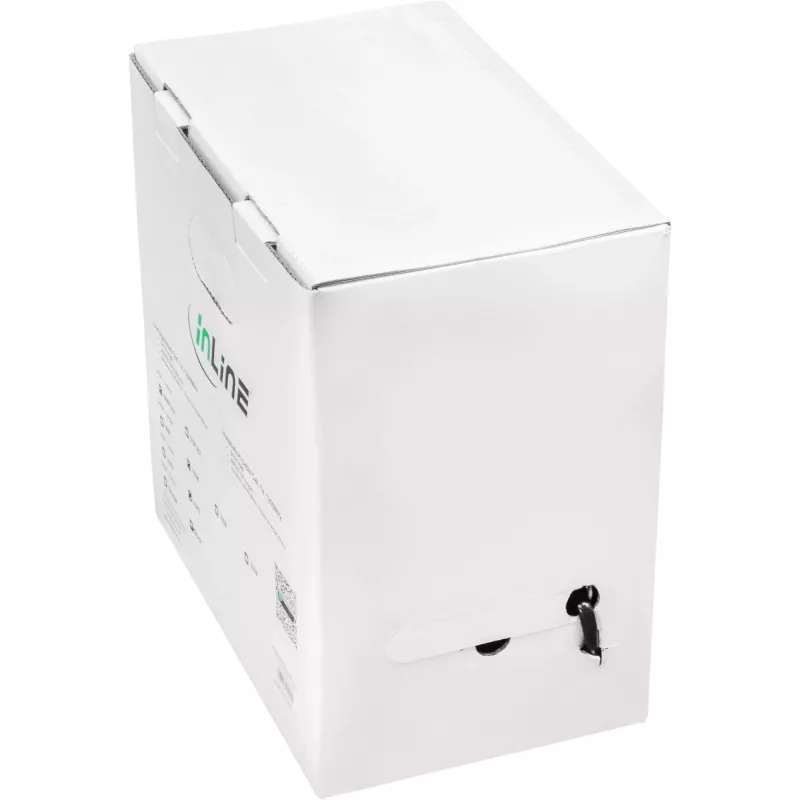

The drum-box packaging facilitates easy handling on site and rolling up the cable without additional tools, which helps reduce handling costs. The packaging is lightweight and stackable, suitable for standard parcel services, and its reinforced cardboard protects the cable from pollution and damage. The drum-box design also reduces average costs when only small pieces of cable are needed.

Suitable for

• Outdoor network installation runs
• High-speed Ethernet links up to 10 GBit/s
• Structured cabling requiring Cat.7a performance (up to 1200 MHz)
• Installations where printed meter markings and easy cable dispensing are useful

Key specifications

• Cable type: Installation cable, Cat.7a S/FTP PiMF
• Bandwidth: up to 1200 MHz
• Conductor: full copper, AWG 23
• Construction: 4x2xAWG23/1 PIMF, pairs in metal foil, overall braid shielding
• Impedance: 100 Ohm
• DC resistance: max 87 Ohm/km
• Sheath: LDPE (UV-resistant), color: black
• Cable diameter: approx. 8.2 mm
• Length: 300 m (drum box)
• Installation temperature: 0 to 50 °C; Operating temperature: -20 to 60 °C
• Standards: ISO/IEC 11801, IEC 61156-5

How to use

Remove the drum box outer carton and pull the required cable length from the plastic roller, using the printed meter markings on the jacket to measure. Cut the cable to length, strip the outer sheath and prepare pairs according to the chosen connector or termination method compliant with Cat.7a wiring practices. Install the cable along the route, taking care of bend radius and securing the cable to avoid mechanical strain. Ensure correct grounding and bonding of the overall braid shielding where required by the installation standard.

Recommendations

For reliable outdoor performance, route the cable to avoid prolonged direct exposure to harsh mechanical stress and ensure UV-resistant sheath faces direct sunlight when unavoidable. Maintain recommended bend radius and follow local cabling standards for shielding termination and earthing to preserve Cat.7a performance.
