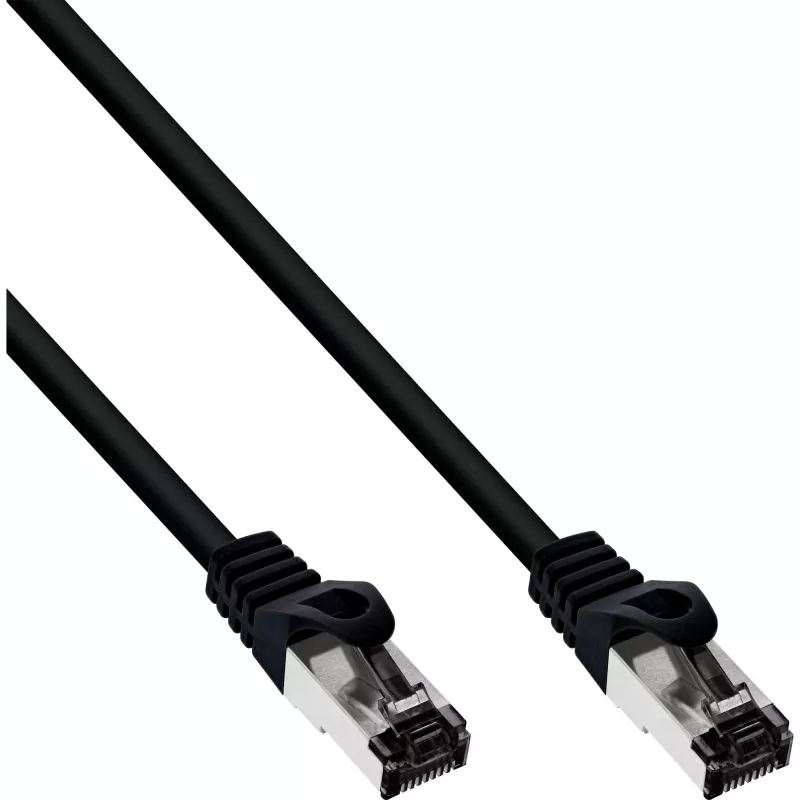

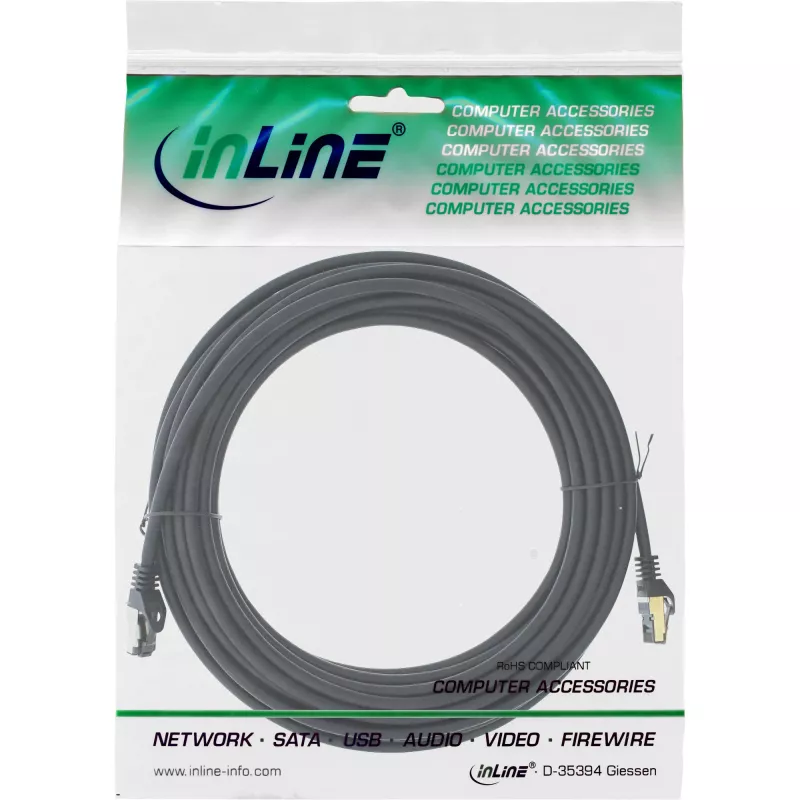

InLine patchkabel S/FTP PiMF Cat.8.1 halogeenvrij 2000MHz zwart, 7,5m

The InLine Patch Cable S/FTP PiMF Cat.8.1 halogen free 2000MHz black 7.5m is a shielded Ethernet patch cable engineered for high-frequency data transmission up to 2000 MHz. It features S/FTP (screened foil twisted pair) with pair-level foil and an overall braid to reduce electromagnetic interference. The cable is halogen-free and comes in black with factory-terminated RJ-45 connectors on both ends. Its 7.5 m length is suitable for connecting network equipment across racks, workstations, or between patch panels and switches while maintaining Cat.8.1 performance parameters.

Advantages

The cable provides enhanced protection against crosstalk and external interference thanks to its S/FTP PiMF construction, supporting stable high-speed links at frequencies up to 2000 MHz. Gold-plated RJ-45 connectors improve contact reliability and corrosion resistance, while the halogen-free sheath reduces toxic gas emissions in case of fire. The molded connector boots and robust jacket offer mechanical durability for repeated handling in professional networking environments.

Suitable for

• High-speed data centers and server rooms
• Connections between switches and patch panels
• Network equipment requiring Cat.8.1 performance
• Environments where halogen-free materials are preferred

Key specifications

• Cable length: 7.5 m
• Category: Cat.8.1
• Shielding: S/FTP PiMF (pair-level foil with overall braid)
• Frequency range: up to 2000 MHz
• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Colour: Black
• Sheath material: halogen-free

How to use

Connect one RJ-45 connector to the network port of a switch, router, or patch panel and the other end to the corresponding device or port. Ensure connectors are fully inserted until they click to secure the link. Route the cable without sharp bends and avoid tight kinks or heavy compression to preserve shielding and performance. When used in structured cabling, maintain recommended separation from power cables and follow site-specific cable management practices.

Recommendations

For optimal performance, use this Cat.8.1 S/FTP cable for connections shorter than the specified channel limits for Cat.8.1 installations, keep bend radius greater than four times the cable diameter, and avoid parallel routing with high-voltage power lines. Inspect connectors before use and replace the cable if the jacket or connector housing is damaged.
