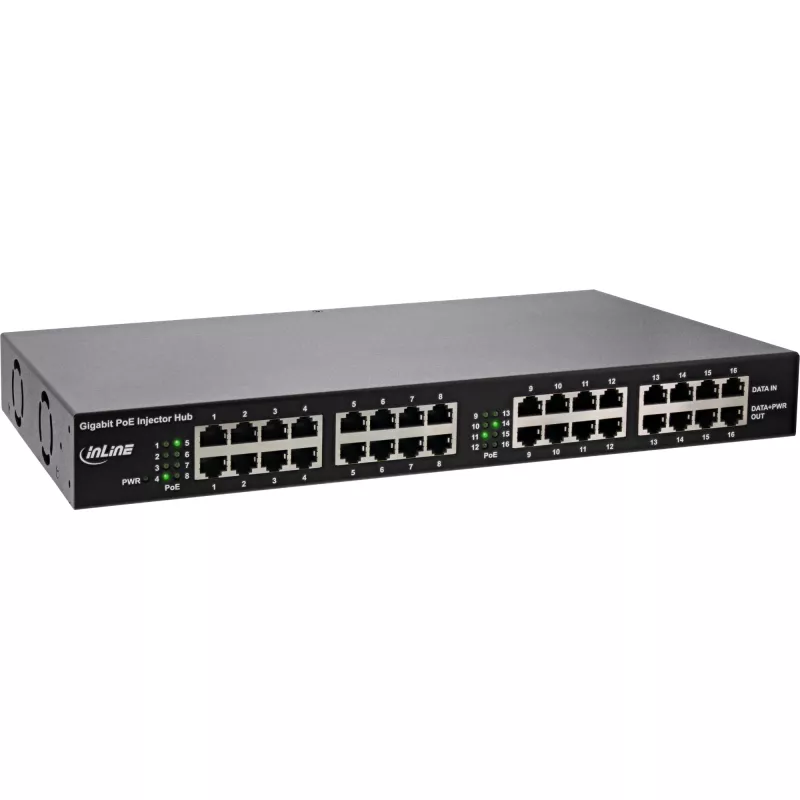

InLine PoE+ Gigabit injectorhub 16 poorten PoE+ 250 W, 19" 1U, beugels inbegrepen, 2 ventilatoren, zwart

The InLine® PoE+ Gigabit Network Injector Hub is a fast and flexible solution for upgrading the existing network to Power over Ethernet according to IEEE 802.3af / IEEE 802.3at without replacing existing switches. The injector hub provides triple protection against overcurrent, overvoltage and overheating at each port. In addition, the Injector Hub offers both IEEE 802.3af PoE and IEEE 802.3at PoE+ with up to 30 watts of power per port via a single Cat. 5 / 5e / 6 Ethernet cable with a combined total power of 250 watts. Sixteen 10/100/1000MBit/s PoE+ ports solve the problem of a limited number of available sockets and offer system administrators a flexible solution for operating the network device to be supplied with power, such as PoE-capable IP cameras or wireless access points, almost everywhere.
Technical characteristics

Standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Ports "DATA IN": 16x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X
Ports "DATA + PWR OUT": 16x 10/100/1000Base-T RJ45, Auto-MDI/MDI-X
PoE type of power supply: Endspan
PoE output voltage: Per port 48~56V DC
PoE output power: Per Port max. 30 watts
Power pin assignment: 1/2(+), 3/6(-)
Total power: 250 watts
LED indicators: PWR, PoE (1-16)
Dimensions (W x D x H): 358x205x44mm
Weight: appr. 2.4 kg

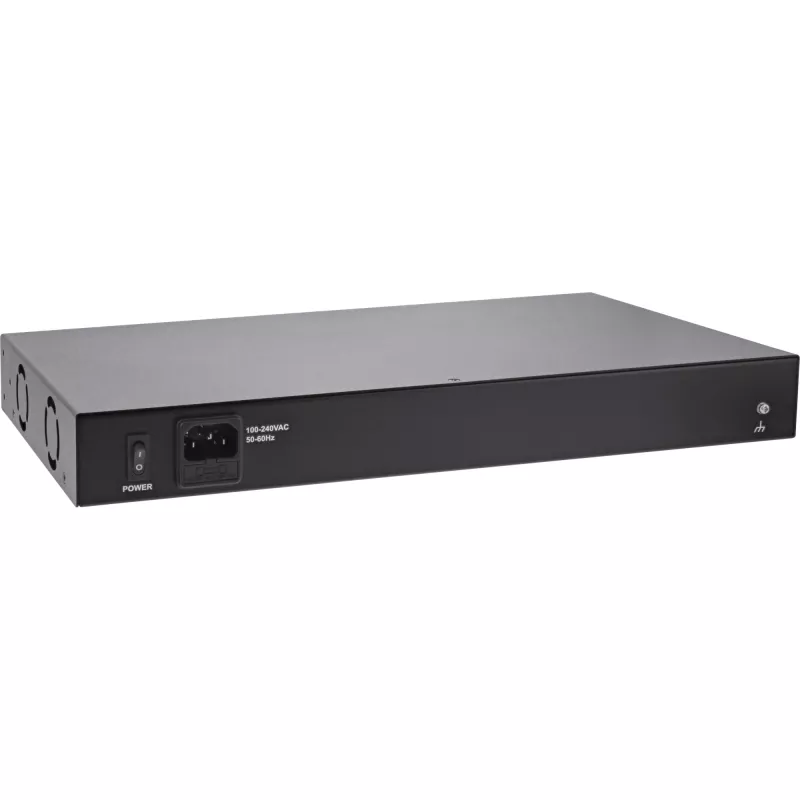

Power requirement: 100~240V AC external power adapter
Operating environment: Operating temperature 0-40°C, storage temperature -10-70°C, humidity 20-95% non-condensing

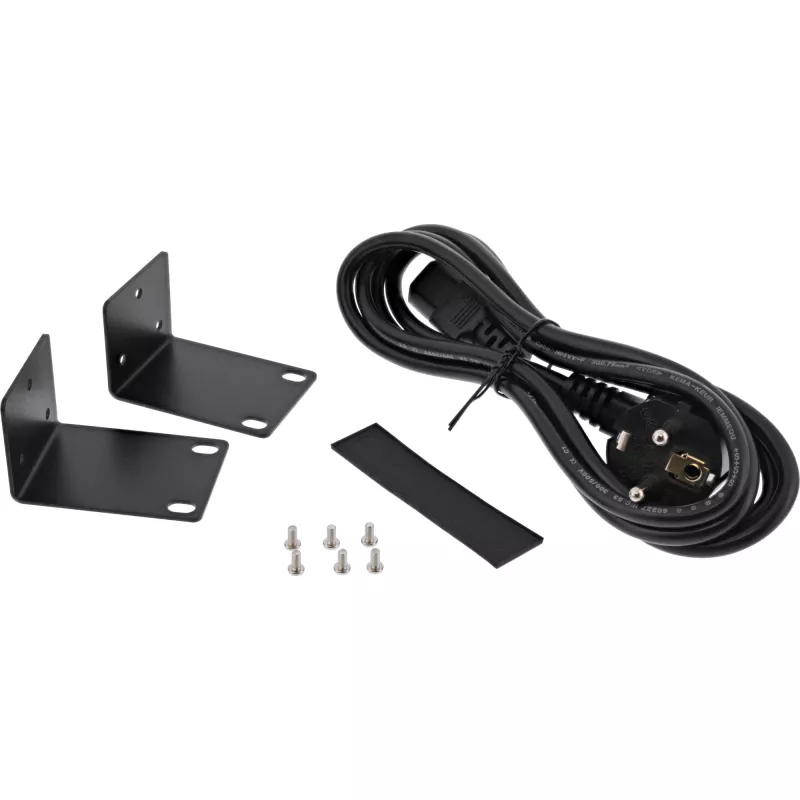

Content of delivery

1x InLine® PoE+ Gigabit Network Injector Hub 16 Port

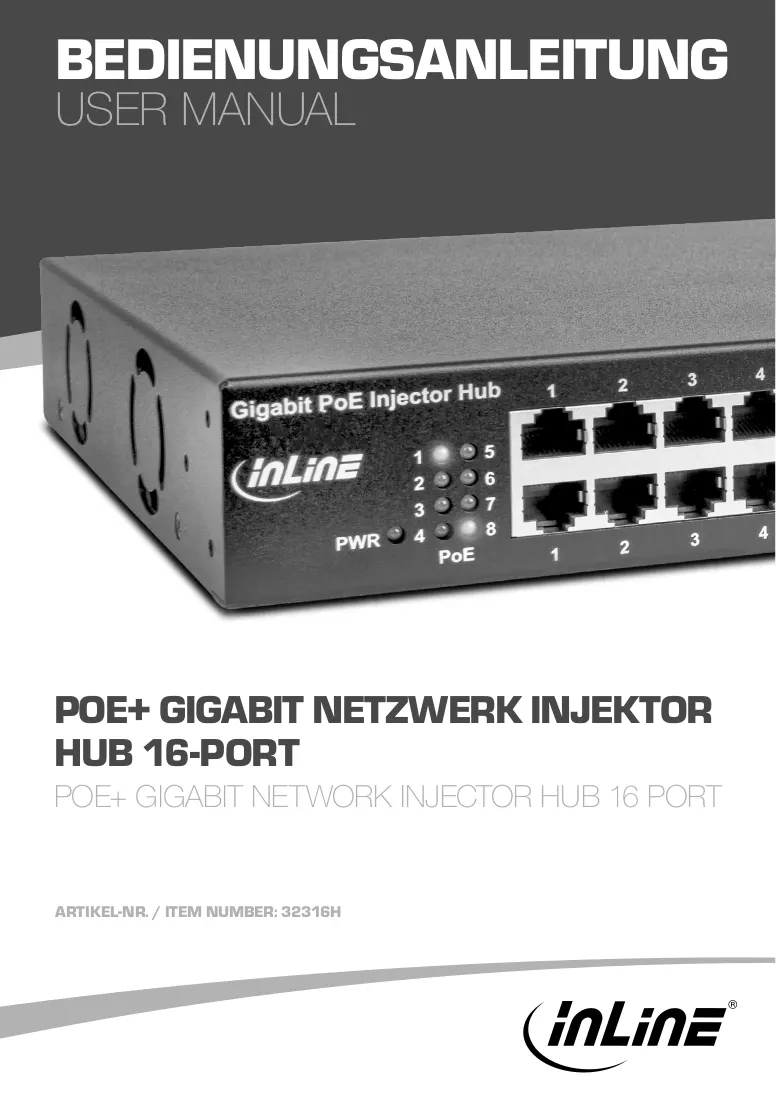

2x User manual (German/English)
1x Power supply
2x 19" mounting brackets
6x Screws for the mounting brackets
4x Rubber feet

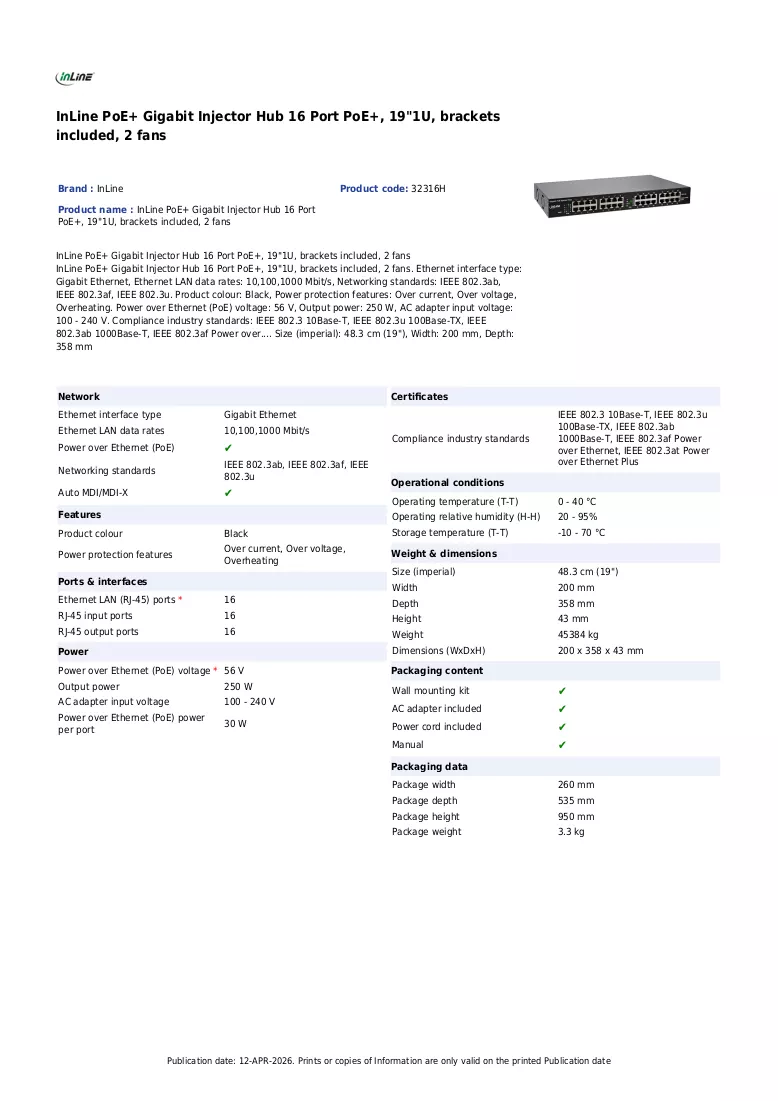

InLine PoE+ Gigabit Injector Hub 16 Port PoE+, 19"1U, brackets included, 2 fans. Ethernet interface type: Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, Networking standards: IEEE 802.3ab, IEEE 802.3af, IEEE 802.3u. Product colour: Black, Power protection features: Over current, Over voltage, Overheating. Power over Ethernet (PoE) voltage: 56 V, Output power: 250 W, AC adapter input voltage: 100 - 240 V. Compliance industry standards: IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af Power over.... Size (imperial): 48.3 cm (19"), Width: 200 mm, Depth: 358 mm

How to use

Connect your network switch or router to the DATA IN ports using standard Ethernet cables. Connect PoE devices to the DATA + PWR OUT ports with Cat5/5e/6 cables to receive both data and power. Ensure the external power adapter is connected to a suitable AC mains source (100–240 V AC). Monitor the PWR and PoE LEDs to verify power and port status. Mount the unit in a 19" rack using the supplied brackets or place it on a flat surface using the rubber feet.

Recommendations

Distribute connected PoE devices so the total power consumption does not exceed the 250 W budget; check individual device power requirements to avoid overloading single ports. Maintain adequate ventilation around the unit and operate within the specified temperature and humidity ranges.
