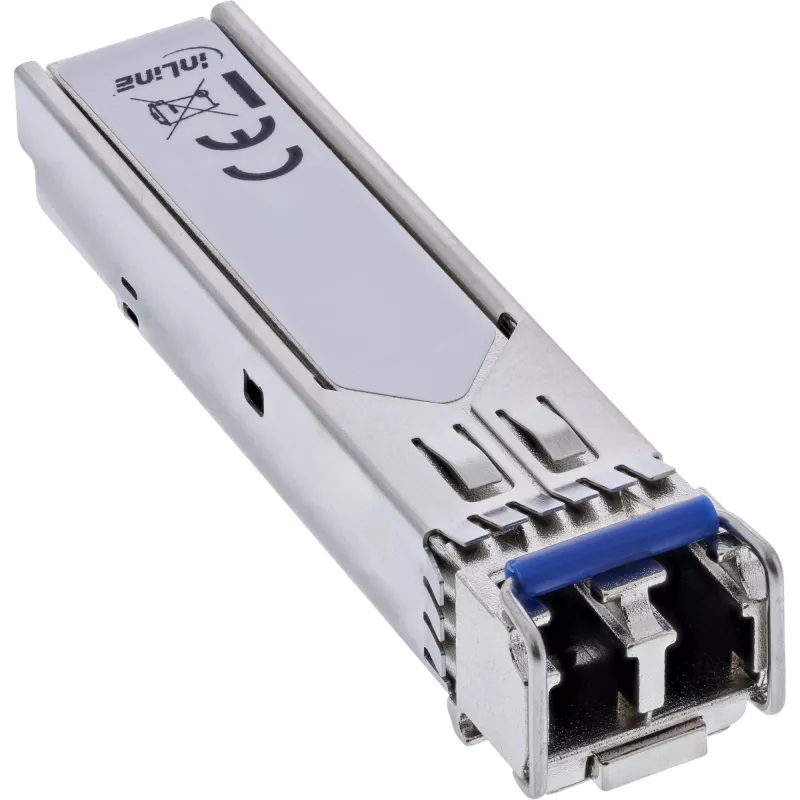

InLine SFP+ module glasvezel 1310nm singlemode met LC-bussen, 10km, 10Gb/s

High-performance SFP+ transceiver module for fast 10 Gigabit data connections over up to 10 km
Compliant with IEEE 802.3ae, SFP MSA and SFF-8431 for smooth integration
Single-mode LC duplex interface with 1310nm DFB laser for stable transmissions
Digital diagnostic monitoring (DDM) function for real-time performance analysis
Hot-pluggable for easy installation and quick replacement

The InLine® SFP+ module is a reliable and powerful solution for professional network environments. With a data rate of up to 10.3 Gb/s and a range of 10 kilometers over single-mode fiber, it is ideal for enterprise networks, data centers and backbone connections.
The module is fully compatible with the IEEE 802.3ae, SFP MSA and SFF-8431 industry standards and can be seamlessly integrated into existing network infrastructures. The LC duplex interface and 1310nm DFB laser technology ensure efficient and reliable signal transmission. Thanks to the integrated digital diagnostic monitoring (DDM), the module performance can be monitored in real time to ensure optimal network security and maintenance.
With an operating voltage of +3.3 V and a hot-pluggable design, the module can be easily installed and replaced without interrupting ongoing operations. Thanks to the extended temperature range of 0 °C to 70 °C, it is ideal for demanding network environments.
Technical specifications:

Wavelength: 1310nm
Extinction ratio ER: ≥ 3.5 dB
Sensitivity of the receiver: ≤ 14.4 dBm
I2C interface with digital diagnostics & monitoring
Electrical interface according to SFF-8431

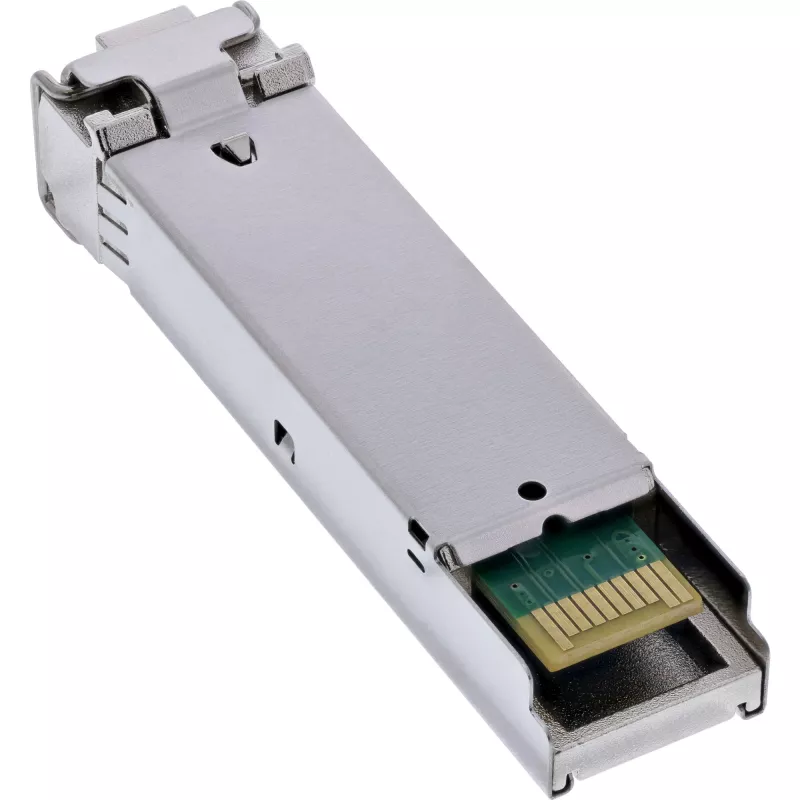

Pin definitions: 1–10 in the BEZEL direction, 11–20 in the ASIC direction
Storage temperature: -40 °C to 85 °C

Note on coding:
Our SFP modules are factory-coded – whether for Cisco, Intel or other systems, which may limit your choice.
For maximum compatibility, we now programme individually according to customer requirements.
Please contact your sales representative.

InLine SFP+ module fibre optic 1310nm singlemode with LC sockets, 10km, 10Gb/s. SFP transceiver type: Fiber optic, Maximum data transfer rate: 100000 Mbit/s, Interface type: SFP+. Input voltage: 3.3 V. Width: 61 mm, Depth: 0.18 mm, Height: 14 mm. Quantity per pack: 1 pc(s). Package width: 70 mm, Package depth: 12 mm, Package height: 15 mm

How to use

Insert the InLine SFP+ module into a compatible SFP+ slot on your switch, router or media converter while the host device is powered off or following the host’s hot-plug procedure. Connect duplex singlemode LC fibre patch cords to the module’s LC ports, ensuring correct transmit/receive orientation. Configure the network device for 10 Gigabit operation if required by the equipment, verify link status, and monitor signal parameters through the host system.

Recommendations

Use matched singlemode LC patch cords and verify connector cleanliness before mating. Ensure the host device supports SFP+ 10 Gb/s modules and that firmware or driver compatibility is maintained. For reliable performance at distances near 10 km, check fibre attenuation and use appropriate fibre type (singlemode) and splicing/connector quality.
