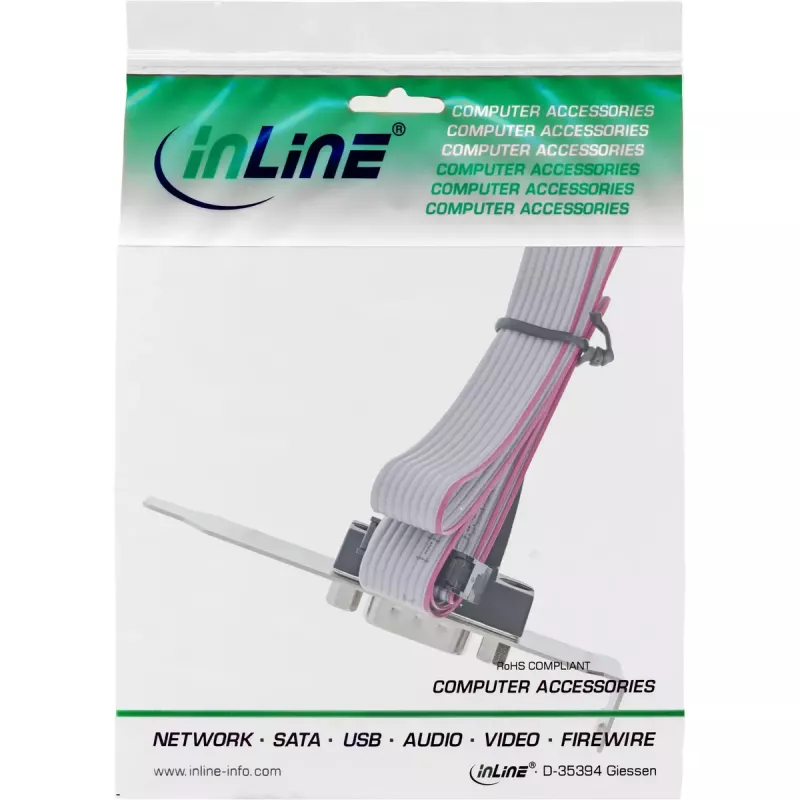

InLine slotbeugel DB9 stekker naar 10-pins interne header direct 1:1 0,6 m

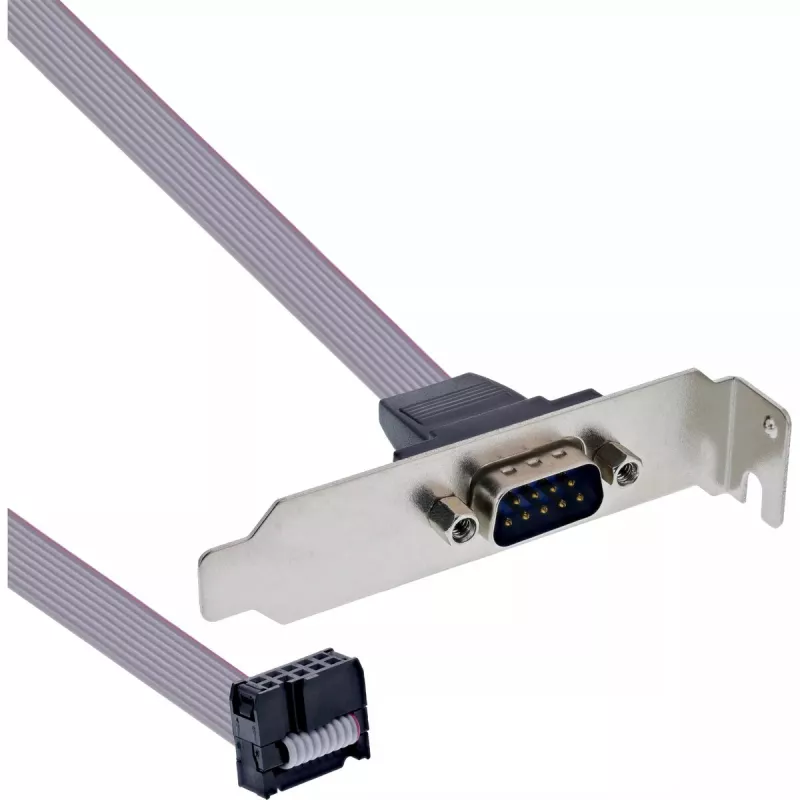

The InLine Slot Bracket DB9 male to 10‑pin internal header direct 1:1 0.6m is a slot cover cable that provides a DB‑9 external serial connector mounted to a bracket and a 10‑pin internal motherboard header connection. The grey 0.6 meter cable is suitable for linking an on‑board 10‑pin serial header to an external 9‑pin Sub‑D serial port for legacy devices or serial peripherals. The product is UL certified (UL2651, 33208C) and supplied as a single piece.

Advantages

This slot bracket offers a straightforward 1:1 wiring between a 10‑pin internal header and a DB‑9 male Sub‑D connector, enabling easy installation without additional adapters. The compact 0.6 m cable length reduces internal cable clutter while providing sufficient reach to most standard motherboard layouts. UL certification indicates compliance with recognized safety standards.

Suitable for

Key specifications

How to use

Turn off the PC and unplug it from mains power before installation. Insert the slot bracket into an available expansion slot at the back of the case and secure it with the case screw. Plug the DB‑9 male connector into the bracket; route the 0.6 m cable to the motherboard and connect the 10‑pin internal header to the corresponding serial header using the matching pin orientation. Restore power and verify the serial port is recognized by the operating system or device.

Recommendations

Check the motherboard manual for the exact pinout of the 10‑pin serial header and set any required jumpers or BIOS/OS settings for serial port support before use. Avoid excessive bending of the cable and keep the connection clear of heat sources or moving parts inside the case.
