InLine testkit voor pc- en servermoederborden 5-delig InLine 59910

The InLine PC and Server Mainboard Testing Set 5 parts (InLine 59910) is a compact kit for diagnosing desktop and server motherboards without using the case front-panel cables. The set connects directly to the motherboard post connectors and contains pushbuttons, indicator LEDs and a speaker to simulate front-panel signals and verify basic board functions.

Advantages

This testing set provides a simple, portable solution for quick verification of power, reset and status indicators on motherboards. Its components are suitable for both PC and server boards and allow technicians to perform initial diagnostics without reassembling or relying on the case wiring.

Suitable for

• Technicians performing motherboard diagnostics and troubleshooting
• IT professionals servicing desktop PCs and rack servers
• Workshops and repair centres needing a compact front-panel simulation tool

Key specifications

• Brand: InLine
• Model / MPN: 59910
• EAN: 4043718082070

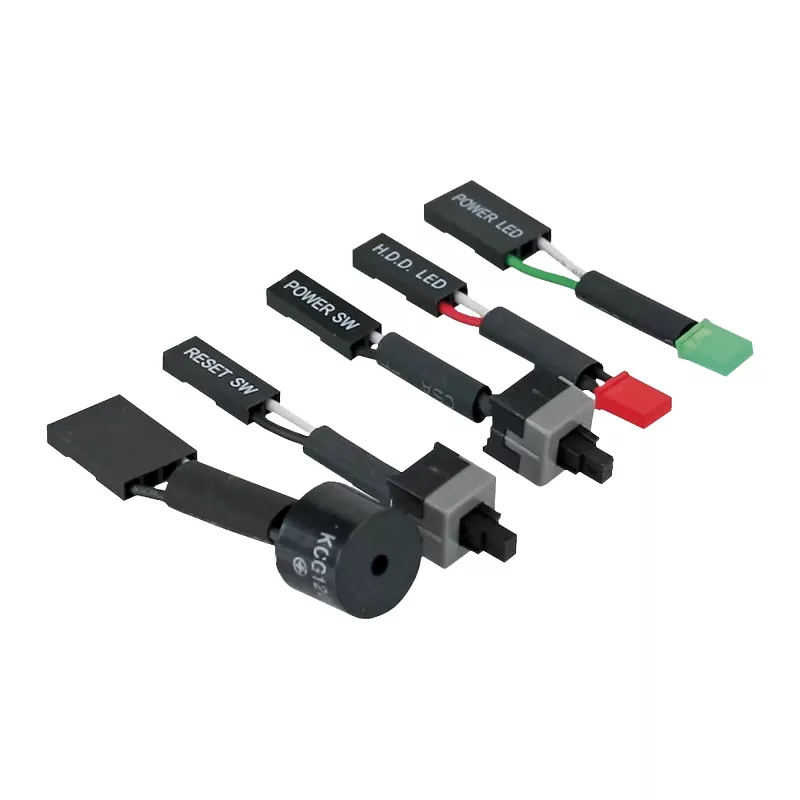

• Contents: 2 pushbuttons, 2 LEDs, 1 speaker (total 5 parts)
• Application: connects to motherboard post/connectors for power/reset/status testing

How to use

Connect the pushbuttons, LEDs and speaker directly to the corresponding front-panel post connectors on the motherboard (power switch, reset switch, power LED, HDD/activity LED, speaker). Use the pushbuttons to simulate power and reset actions and observe the LEDs and speaker for status and beep codes while the board is powered. Ensure correct polarity for LEDs where applicable and refer to the motherboard manual for connector pinout.

Recommendations

Handle the components and motherboard with power off when making initial connections. When testing with power applied, avoid shorting adjacent pins and follow ESD precautions. Consult the motherboard documentation for specific post connector assignments before use.
