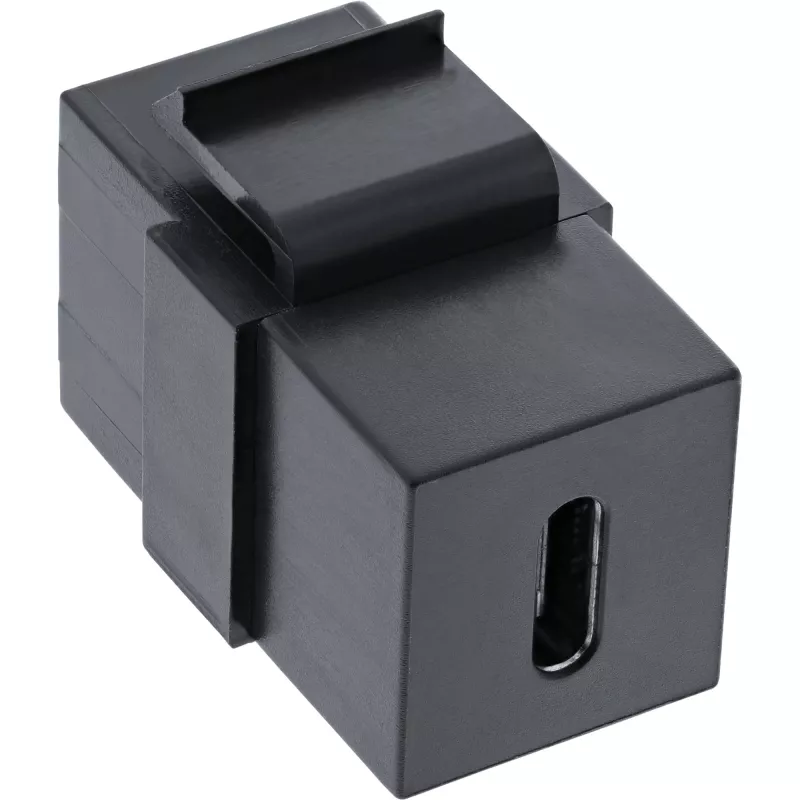

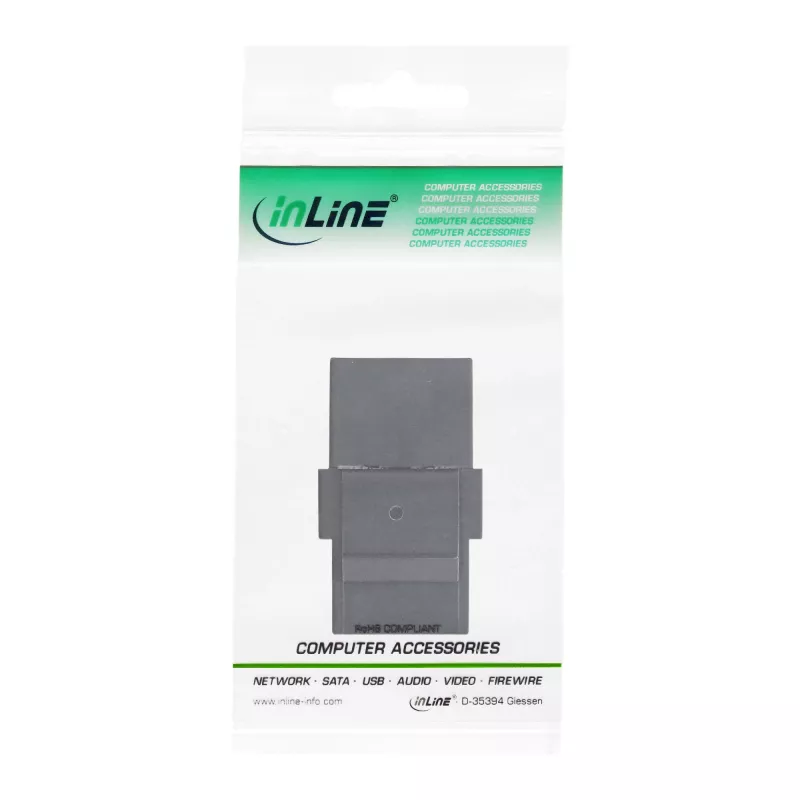

InLine USB 3.1 snap-in-module, USB-C-bus/bus, zwarte behuizing

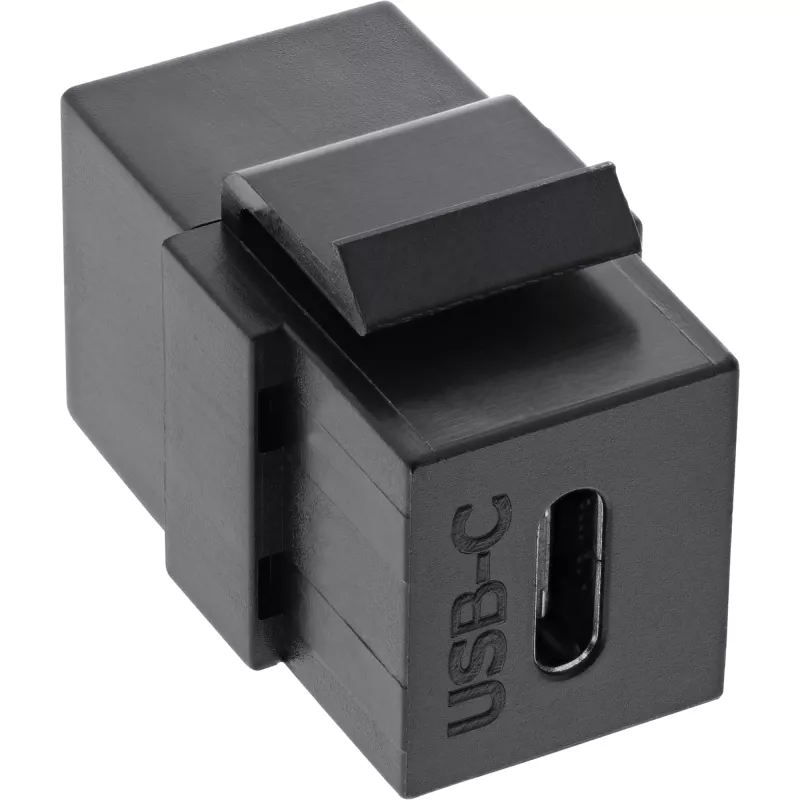

The InLine USB 3.1 Snap-In module InLine 76201Z is a compact USB-C female snap-in connector designed for straightforward integration into enclosures, panels and devices that require a front-facing USB-C port. Housed in a slim black casing, the module supports USB 3.1 Gen 2 data rates for fast transfer and provides a standardized interface for modern peripherals and charging equipment.

Advantages

This snap-in module delivers USB 3.1 Gen 2 performance in a compact, panel-mountable form factor, allowing OEMs and technicians to add a USB-C female port without complex modifications. The black housing offers a discreet appearance suitable for many device styles. The module is designed for reliable mechanical fit and consistent electrical contact to support high-speed data transfers and compatible power delivery implementations.

Suitable for

• Integration into desktop panels, kiosks and rack equipment
• Addition of a front-facing USB-C port to consumer electronics and industrial devices
• Replacement or upgrade of older USB ports to a USB-C interface
• Embedding in custom enclosures, media consoles and charging stations

Key specifications

• Connector: USB-C female snap-in
• USB standard supported: USB 3.1 Gen 2 (10 Gbps)
• Housing colour: Black
• Mounting type: Snap-in panel/module mount
• Intended use: Data transfer and USB-C peripheral connectivity

How to use

Install the snap-in module into the prepared cutout of the device panel until it clicks into place, ensuring correct alignment with the panel opening. Connect the module to the device mainboard or wiring harness using the compatible USB 3.1 interface cable or board connector, following the device manufacturer’s wiring diagrams. After mechanical installation and electrical connection, verify recognition by the host system and test data transfer at USB 3.1 Gen 2 speeds. Ensure the mating plug is inserted straight to avoid mechanical stress on the connector.

Recommendations

For reliable operation, use certified USB-C cables and ensure the host device supports USB 3.1 Gen 2 to achieve the specified transfer rates. Avoid excessive force when inserting or removing plugs and protect the connector area from dust and moisture in harsh environments.
