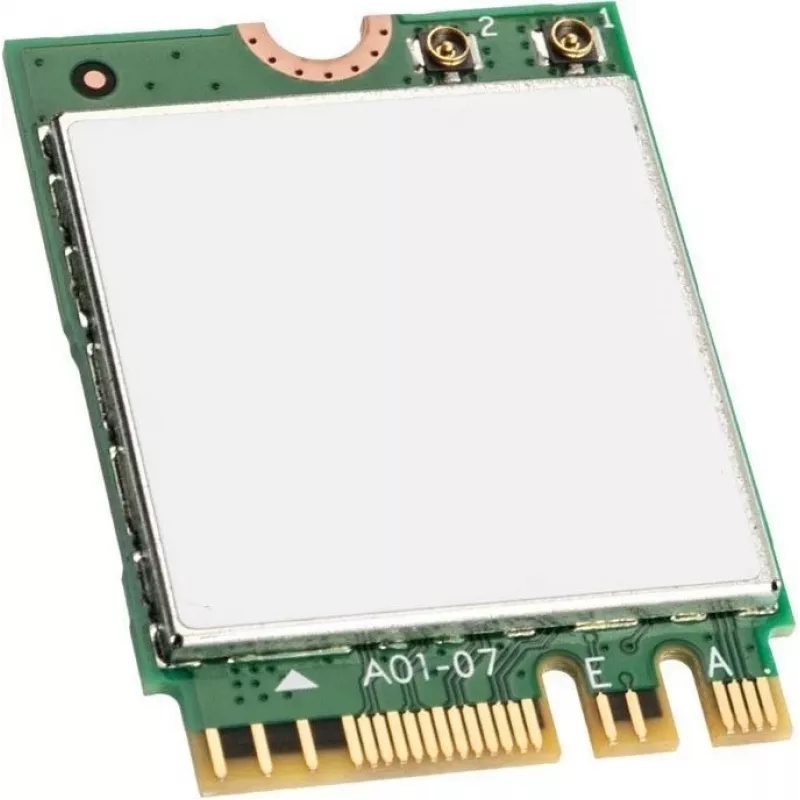

Intel Wi-Fi 7 BE211 - netwerkadapter M.2 2230 Bluetooth 6.0 Wi-Fi 7 (BE211.NGWG)

Upgrade your device with the Intel Wi-Fi 7 BE211 network adapter, delivering cutting-edge wireless performance for laptops, mini PCs, and desktops. This M.2 2230 module supports the latest Wi-Fi 7 (802.11be) standard and Bluetooth 6.0, ensuring ultra-fast speeds, low latency, and reliable connectivity.

Advantages

Experience tri-band connectivity on 2.4 GHz, 5 GHz, and 6 GHz bands with data rates up to 5.8 Gbps. Wi-Fi 7 features like Multi-Link Operation (MLO), 320 MHz channel support, and 4096-QAM provide enhanced throughput and efficiency. Bluetooth 6.0 offers improved range and data transfer for peripherals.

Suitable for

• Laptops with M.2 2230 slot and CNVio3 interface
• Mini PCs requiring high-speed wireless connectivity
• Desktops with compatible M.2 adapter

Key specifications

• Wireless Standard: Wi-Fi 7 (802.11be)
• Bluetooth Version: 6.0
• Form Factor: M.2 2230
• Interface: PCIe (Wi-Fi), USB (Bluetooth)
• Frequency Bands: 2.4 GHz, 5 GHz, 6 GHz (Tri-Band)
• Max Data Rate: Up to 5.8 Gbps
• MIMO Configuration: 2x2 TX/RX
• Security: WPA3, WPA2, WPA, OWE, SAE
• Operating Systems: Windows 10/11 (64-bit), Linux, ChromeOS
• Antenna Support: External Antenna (via M.2 connector)

Recommendations

Ensure your system has an M.2 2230 slot with CNVio3 interface for full compatibility. For optimal performance, use with a Wi-Fi 7 router.
