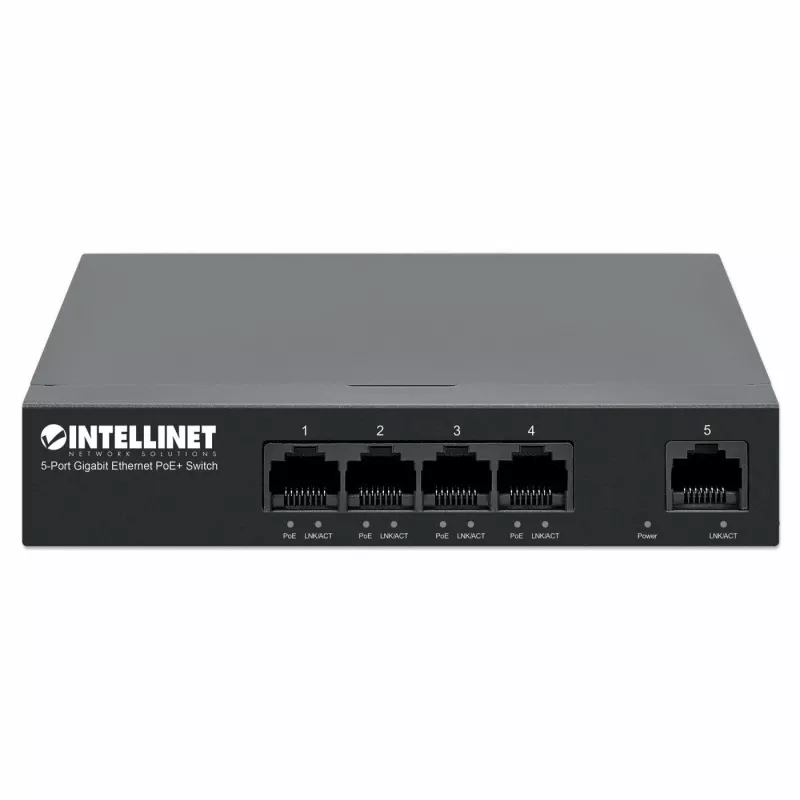

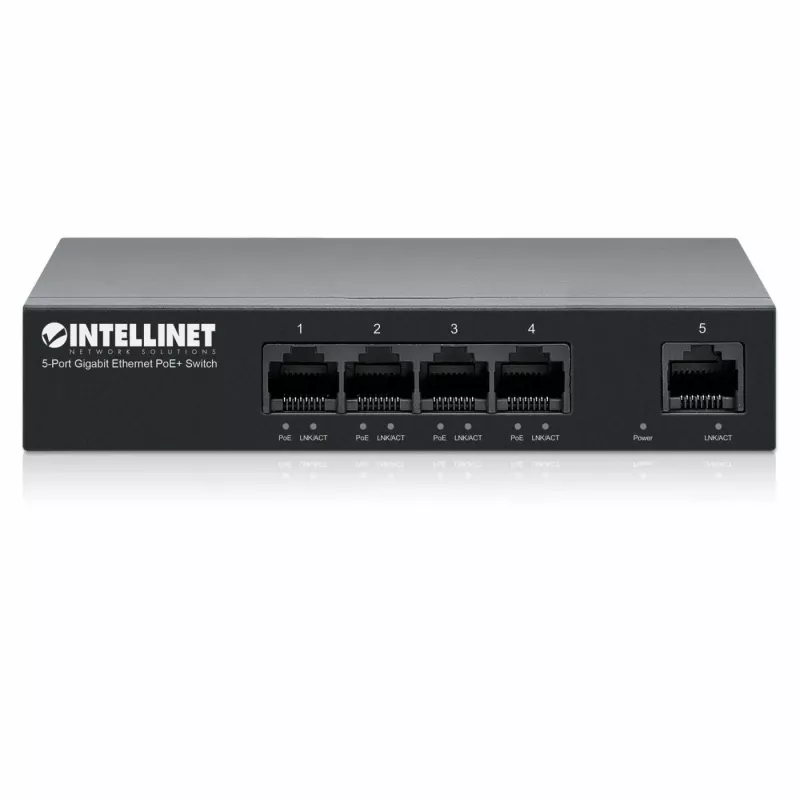

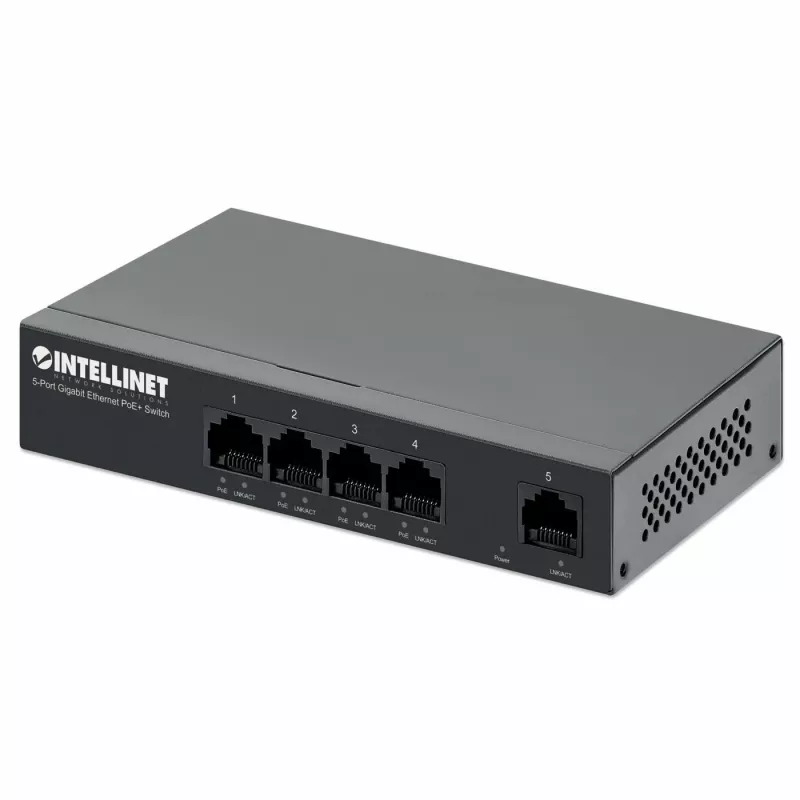

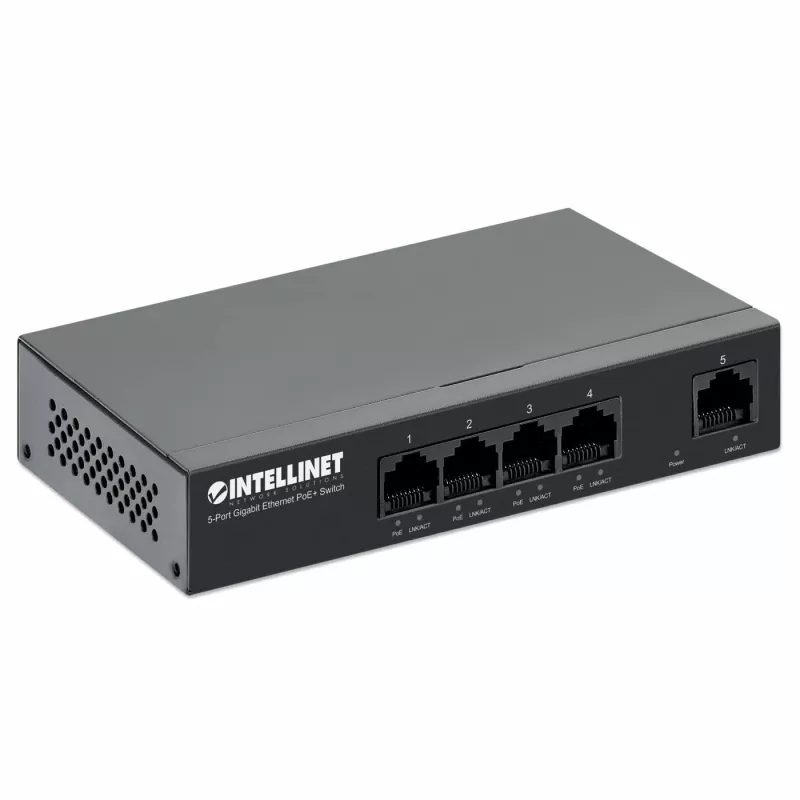

Intellinet 561792 netwerkswitch Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) zwart

The Intellinet 561792 is a 5-port Gigabit Ethernet switch with Power over Ethernet (PoE+) designed to simplify installation of networked devices. Four of the five RJ-45 Gigabit ports supply PoE+ power according to IEEE 802.3at, allowing connected devices to receive data and up to 30 W of power over a single Cat5e/Cat6 cable. The switch supports full-duplex Gigabit speeds, a 2000-entry MAC address table and a switching capacity of 10 Gbit/s, and is available in a compact, wall-mountable black housing.

Advantages

This Intellinet PoE+ switch reduces installation time and cost by delivering both data and power over standard Ethernet cables, eliminating the need for separate power supplies and extra electrical work. It supports IEEE 802.3at and IEEE 802.3af devices, protects connected equipment with short-circuit, overload and high-voltage protection, and provides reliable Gigabit throughput for networked devices such as cameras and access points.

Suitable for

• Powering and connecting wireless LAN access points and bridges
• Connecting and supplying VoIP phones
• Feeding power and data to IP video cameras
• Small office or branch network edge switching

Key specifications

• Manufacturer: INTELLINET, model 561792 (EAN 0766623561792)
• Ports: 5 × RJ-45 Gigabit (10/100/1000); 4 ports with PoE+ (IEEE 802.3at)
• PoE power per port: up to 30 W (IEEE 802.3at)
• Switching capacity: 10 Gbit/s
• MAC address table: 2000 entries
• Supported standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3af, 802.3at
• Color: Black; Weight: 0.344 kg

How to use

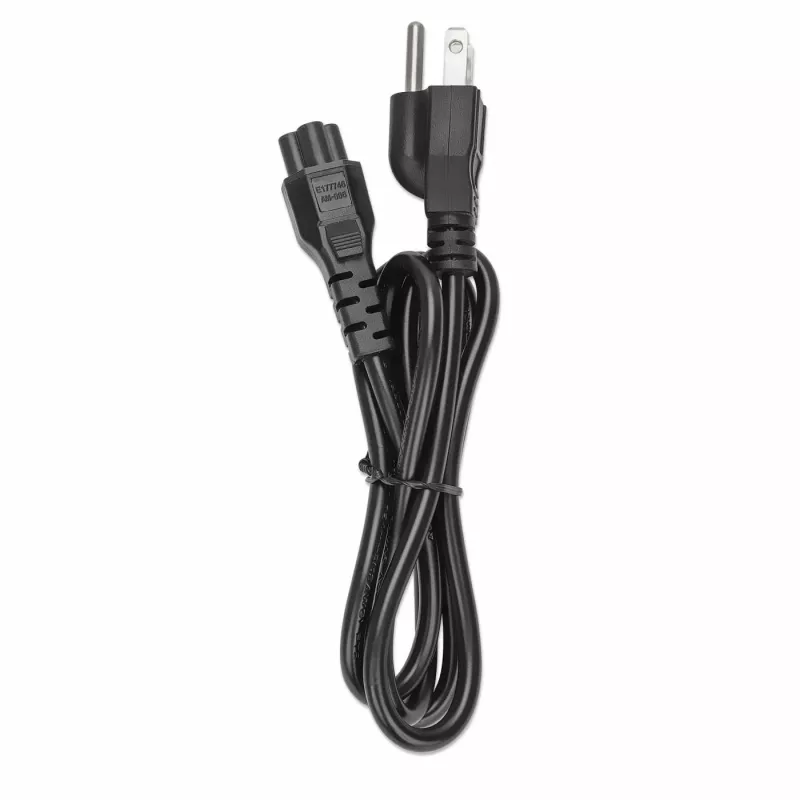

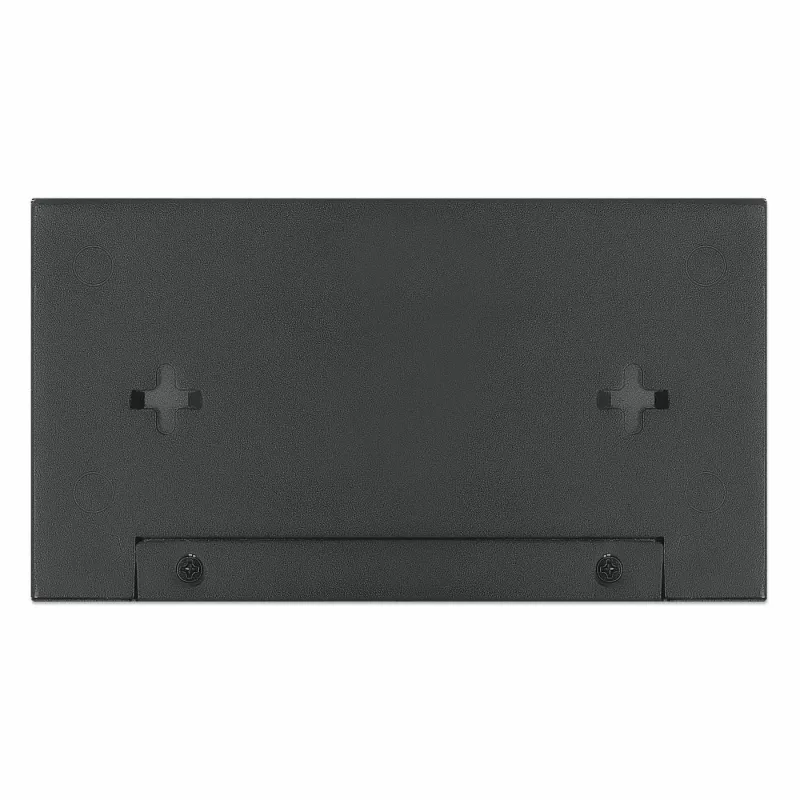

Mount the switch on a wall or place it on a flat surface near your network uplink. Connect the uplink to the non-PoE Gigabit port and attach PoE-capable devices (access points, IP cameras, VoIP phones) to the PoE+ ports using Cat5e or Cat6 cables. Power the switch from its AC adapter and verify link/activity LEDs to confirm connectivity. Devices that comply with IEEE 802.3af/at will receive power automatically without additional adapters.

Recommendations

For reliable operation, use quality Cat5e or Cat6 cables and ensure the total PoE power budget meets the combined requirements of connected devices. Place the switch in a well-ventilated location and avoid exposing it to moisture or extreme temperatures.
