Intellinet 8-poorts rackmount KVM-switch, combo USB + PS/2, on-screen-display, kabels meegeleverd (Euro 2-pins stekker)

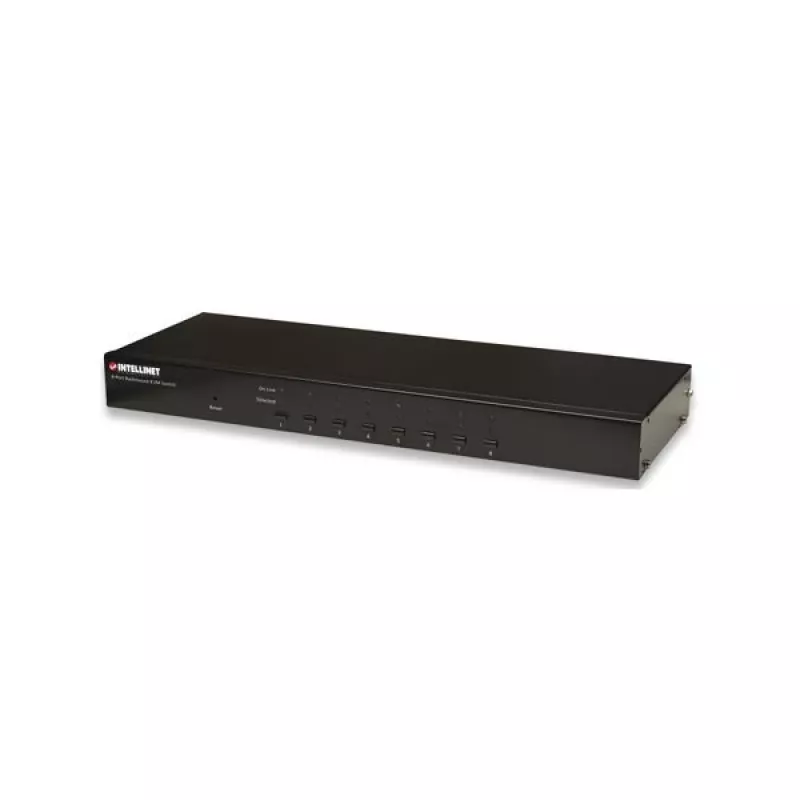

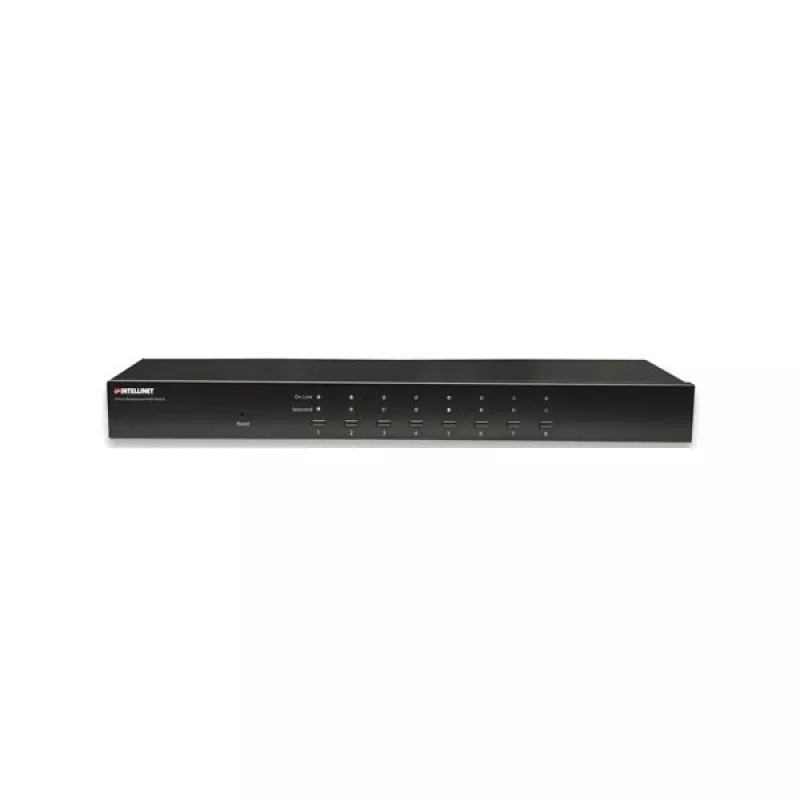

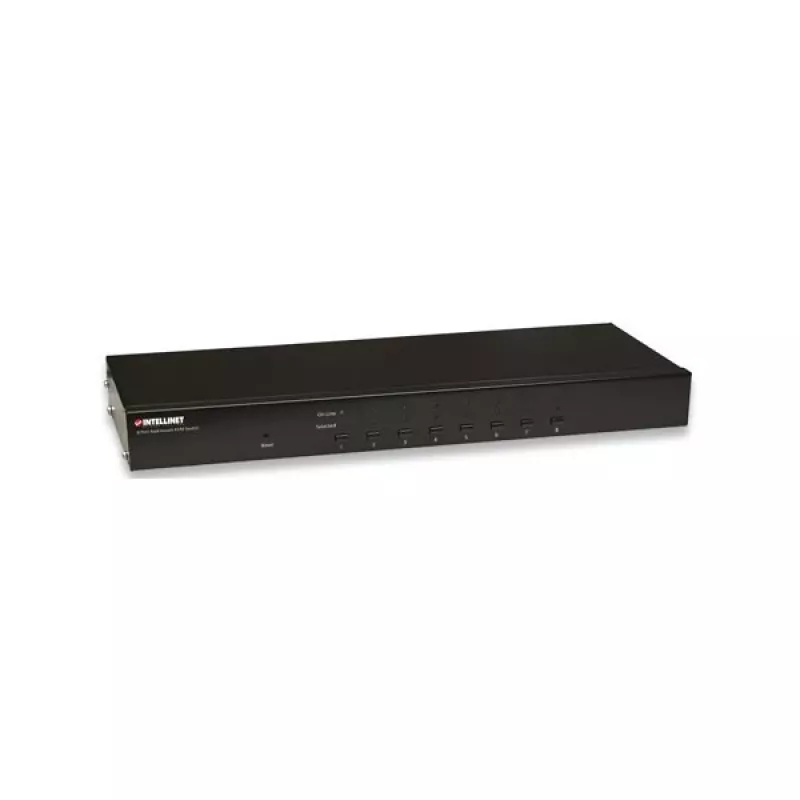

The INTELLINET 8-Port Rackmount KVM Switch (model 506441) enables control of up to eight computers from a single keyboard, mouse and VGA monitor. It supports both USB and PS/2 interfaces on the console and host sides, provides an on-screen display (OSD) for menu-driven operation, includes the required connection cables in the package and features a metal rackmount housing for professional environments. The device supports VGA video up to 1600 x 900 and offers dedicated port controllers to maintain keyboard and mouse emulation even when the unit is unpowered, with cascading capability to expand the number of connected systems.

Advantages

The KVM switch supports mixed USB and PS/2 connections, simplifying integration of older and newer systems. Included connection cables remove uncertainty at installation. The built-in OSD provides straightforward navigation and configuration, while dedicated port controllers preserve keyboard and mouse signals during power loss. Metal housing improves durability and electromagnetic shielding, and cascading allows scaling up to larger installations.

Suitable for

• Server rooms and data centers
• Corporate IT closets and rack cabinets
• Factory floor or campus computing environments
• Mixed environments with both USB and PS/2 systems

Key specifications

• Brand: INTELLINET
• Model (MPN): 506441
• Number of ports: 8
• Keyboard / Mouse interfaces: USB and PS/2 (console and host)
• Video output: VGA, up to 1600 x 900
• Form factor: Rackmount, metal housing
• Weight: 4.4 kg
• Colour: Black

How to use

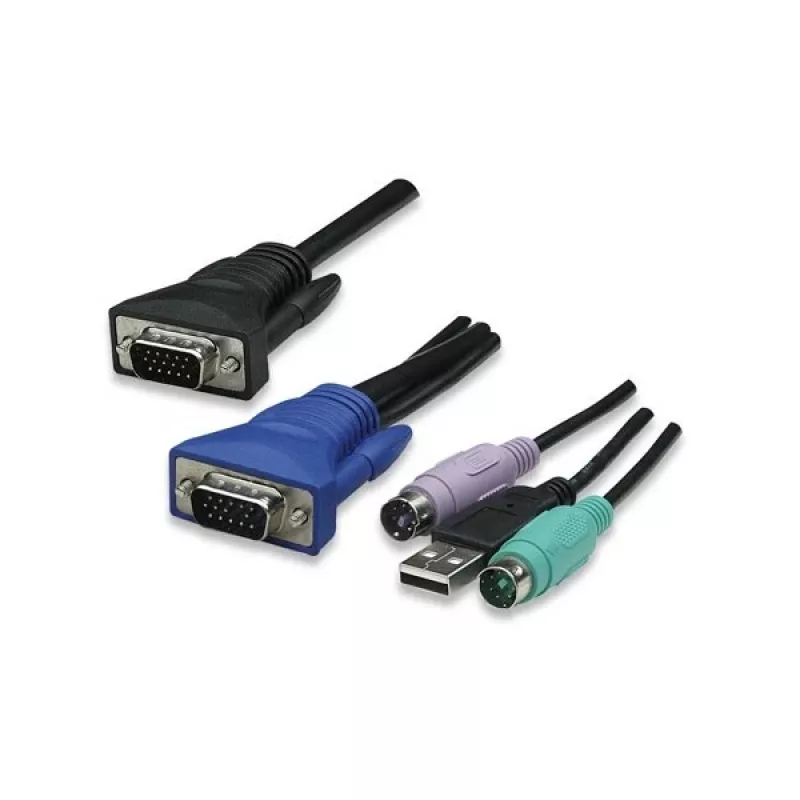

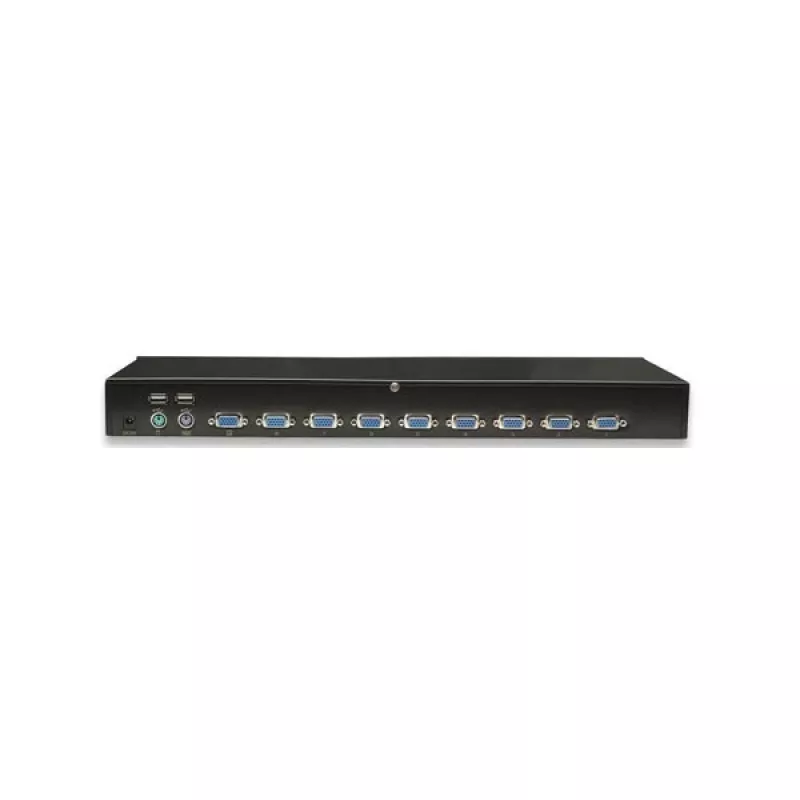

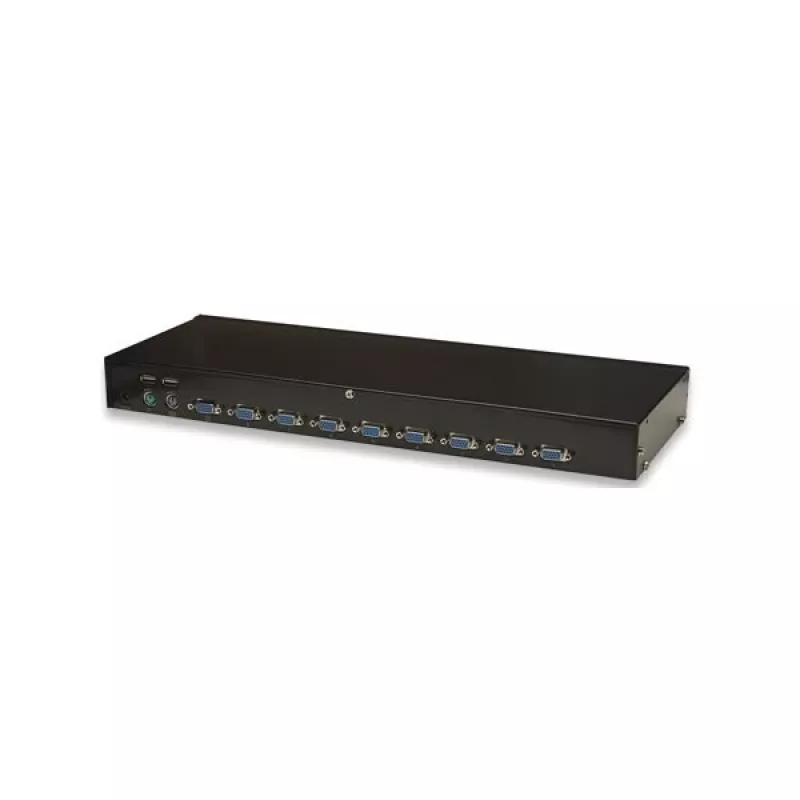

Mount the unit in a 19" rack and connect your keyboard, VGA monitor and mouse to the console ports. Use the supplied host cables to connect each of the up to eight computers to the corresponding KVM ports. Power on the KVM switch and the connected computers. Navigate the on-screen display (OSD) to select the active computer, configure password protection or set up cascading to additional KVM units. The switch supports automatic switching and manual selection via the OSD interface.

Recommendations

For reliable video quality, keep VGA cable runs within recommended lengths and use the supplied connection cables. When deploying multiple units, plan cascading topology and configure passwords and firmware updates before placing the system into production.
