Intellinet Gigabit Ethernet naar SFP mediaconverter, 10/100/1000Base-Tx naar SFP-slot, leeg

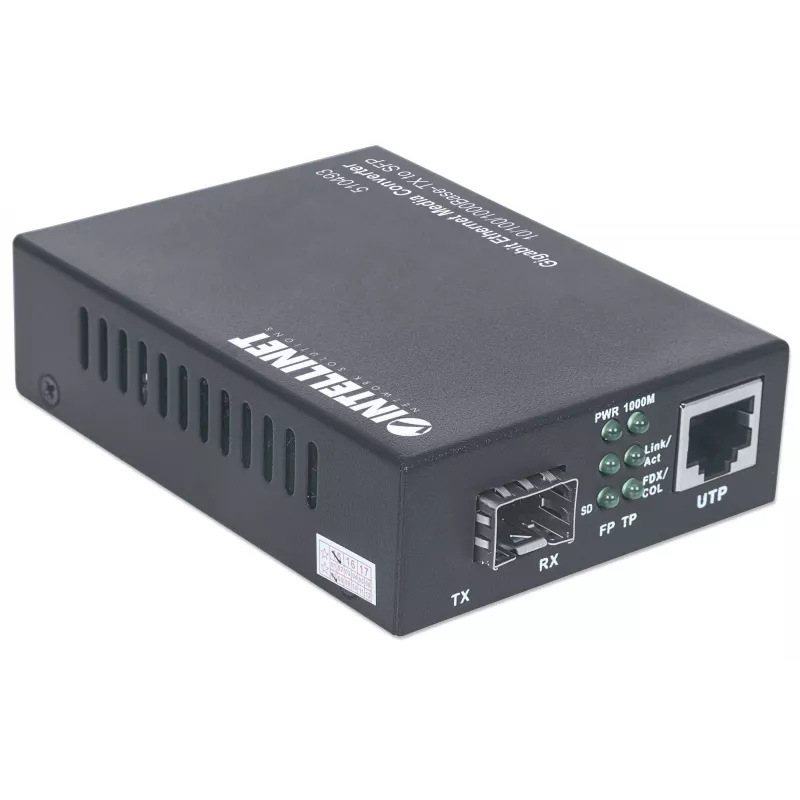

The Intellinet Gigabit Ethernet to SFP Media Converter (model 510493) provides transparent conversion between copper 10/100/1000Base-Tx Ethernet and SFP-based fibre interfaces. Housed in a compact metal case with LED indicators for link and power, it supports gigabit speeds and standard IEEE Ethernet rates while operating on 12 V with low power consumption. The converter enables connection of an RJ-45 Ethernet port to an SFP fibre module, extending network reach and integrating copper and fibre segments without changing existing Ethernet arrangements.

Advantages

This media converter expands an existing network by providing fibre connectivity to Ethernet segments, allowing building-to-building links and extended workgroup connections without installing additional routers. It increases the distance between networking devices by connecting to fibre segments or fibre-based nodes. The compact metal housing and LED status indicators offer flexible deployment options, including desktop, wall-mount, or installation in a 19" rack-mountable chassis with compatible slots.

Suitable for

• Extending Ethernet networks between floors or buildings
• Integrating copper-based Gigabit Ethernet with SFP fibre links
• Small office or branch office connections requiring up to 100 m over copper and longer fibre segments
• Environments needing compact, low-power media conversion

Key specifications

• Maximum data transfer rate: 1000 Mbit/s
• Ethernet LAN (RJ-45) ports: 1
• Fiber ports quantity: 1 (SFP slot)
• Ethernet LAN data rates: 10/100/1000 Mbit/s
• Maximum transfer distance (copper): up to 100 m
• Power supply: 12 V, max power consumption 5 W
• Product colour: Black
• Weight: 0.17 kg

How to use

Install a compatible SFP module into the SFP slot, then connect the fibre cable to the SFP module. Connect an Ethernet device or switch to the RJ-45 port using standard Ethernet cabling. Power the unit with a 12 V supply and verify LED indicators for power and link status. For rack installations, place compatible converters into a 19" chassis if available; otherwise use desktop or wall-mount placement as needed.

Recommendations

Use IEEE-compliant SFP modules that match the required fibre type and distance (single-mode or multi-mode). Ensure cable management and grounding follow site standards, and verify link speed and duplex settings on connected devices for optimal network performance.
