Interface-adapter InLine 76619I — InLine 76619I externe interfacekaart/adapter

Flexible SSD compatibility:Supports M.2 SSDs with Key M and B+M keys based on NVMe – ideal for high-performance storage solutions.
Wide case compatibility:Thanks to low-profile sheet metal, also suitable for compact computer cases and server environments.
No additional cabling required:Power is supplied directly via the PCIe bus – easy integration without additional effort.
High performance reserves:PCIe v3.0 x4 for fast data transfer with low latency – ideal for demanding applications.
Extensive SSD form factor support:Compatible with SSD lengths from 2230 to 22110 – maximum flexibility in system design.

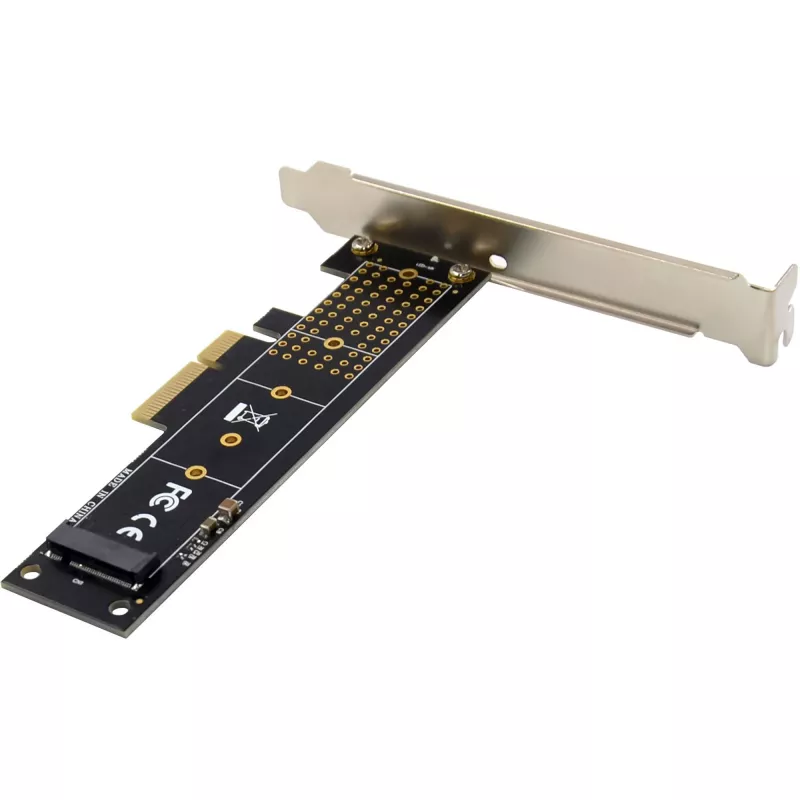

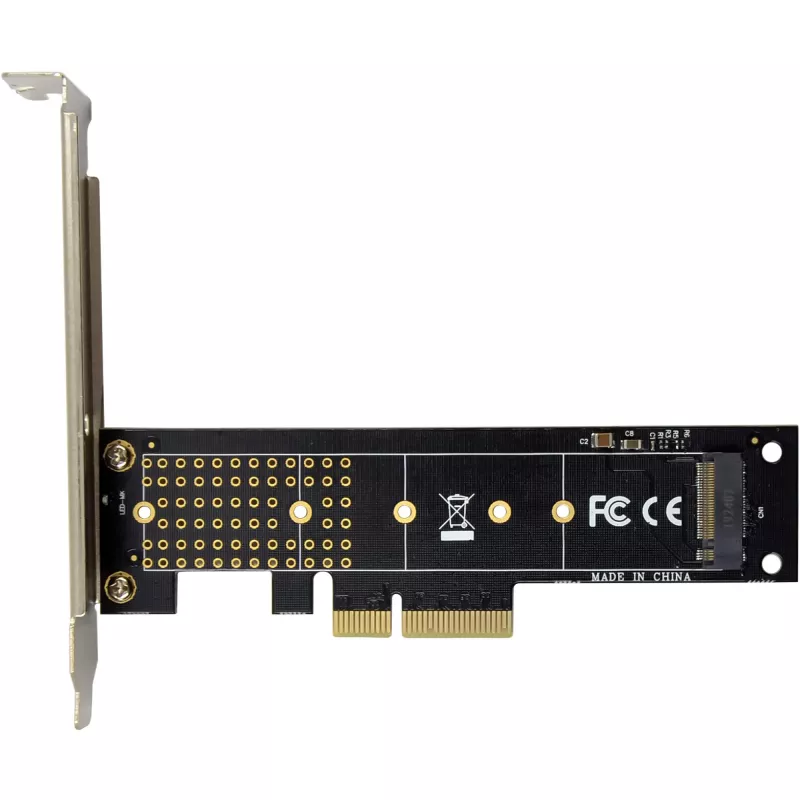

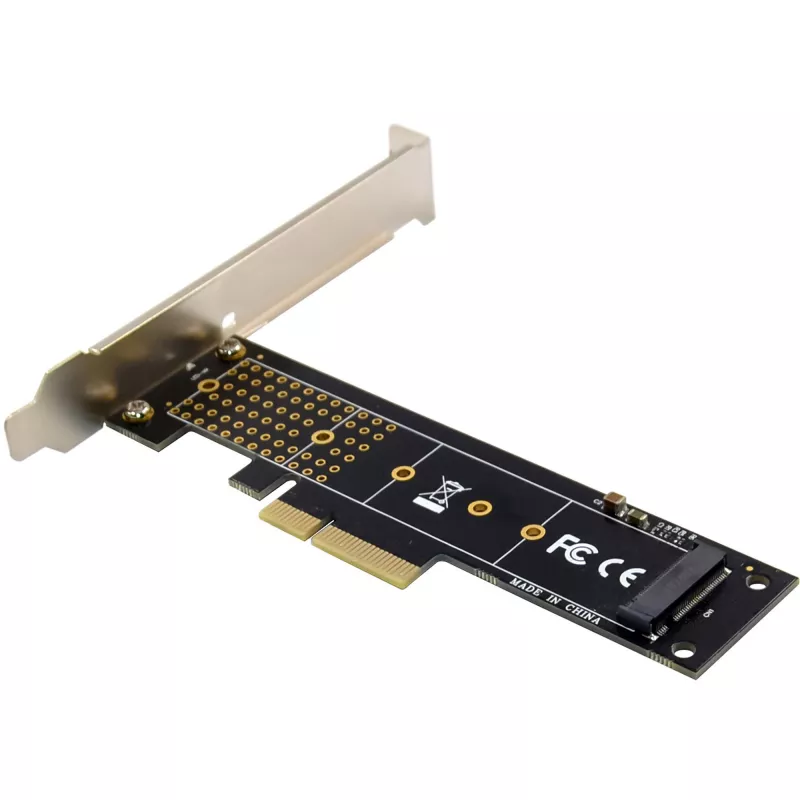

The InLine PCIe x4 interface card offers a powerful solution for integrating modern NVMe SSDs into existing systems. Developed in accordance with PCI Express v3.0, it allows the use of M.2 SSDs with Key M and B+M Key, provided they are based on the NVMe protocol. SATA or PCIe x2 variants are consistently excluded to ensure maximum performance and compatibility.
Particularly practical: the card supports SSD lengths from 2230 to 22110, making it suitable for numerous applications – from compact mini PCs to high-performance workstations. Power is supplied entirely via the PCIe bus at 3.3 V, eliminating the need for a separate power supply. This makes installation much easier, especially in cramped system environments.
Mechanical integration is also flexible: the card fits into PCIe slots from x4 upwards (x4, x8, x16) and comes with a low-profile slot bracket, making installation in small cases easy. The included heat sink supports thermally stable use even under full load.
Compatibility with current operating systems such as Windows 10/11, Windows Server, and Linux (with NVMe support) rounds off the profile of this powerful interface card – ideal for professional users and ambitious tech enthusiasts alike.
Technical data

PCIe version: PCIe v3.0 x4 lanes (backward compatible with PCIe v2.0 / v1.0)
Interface: PCIe x4 (mechanically usable in x4/x8/x16)
Supported SSD formats: 2230 / 2242 / 2260 / 2280 / 22110
Supported SSD types:
- M.2 Key M (NVMe)
- M.2 Key B+M (NVMe only, no SATA)
Not compatible:
- M.2 SATA SSDs (B-Key)
- M.2 PCIe x2 SSDs (B-Key)
Protocol: NVMe (optimized for high I/O performance and low latency)
Power supply: directly via PCIe bus (3.3 V)
Operating temperature: -40 °C to +85 °C
Storage temperature: -40 °C to +85 °C
Maximum humidity: 90%, non-condensing

Supported operating systems

Windows 8 / 8.1 / 10 / 11
Windows Server 2012 R2 or newer
Linux (with NVMe support)

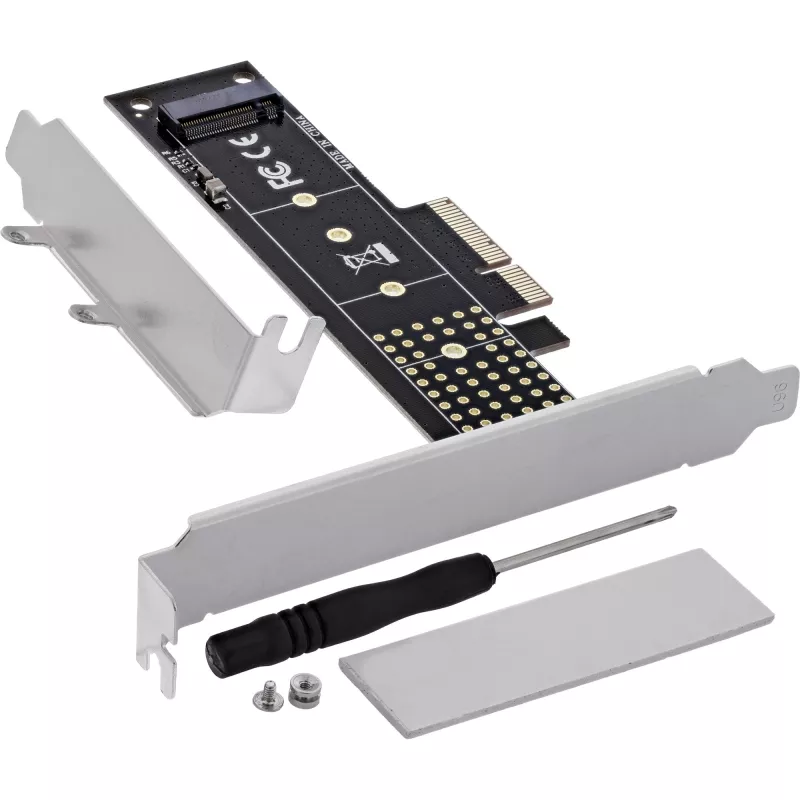

Scope of delivery

1x InLine PCIe x4 interface card to M.2 Key M (NVMe)
1x low-profile slot bracket
1x heat sink
1x screwdriver
1x screw
1x user manual German/English

InLine 76619I. Host interface: PCIe, Output interface: M.2, Host interface gender: Male. Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Server operating systems supported: Windows Server 2012 R2, Windows Server 2013, Windows Server 2016, Windows Server 2019, Windows.... Width: 145 mm, Depth: 145 mm, Height: 120 mm. Package weight: 30 g, Package volume: 700 cm³

How to use

Install the card into an available PCIe x4 (or larger) slot on the motherboard, secure the low-profile bracket to the chassis if required, and mount the M.2 NVMe SSD to the adapter at the correct length position. Attach the included heat sink over the SSD for improved thermal stability. No additional power connections are needed since the adapter draws power from the PCIe slot. After physical installation, start the system and verify NVMe device recognition in the operating system; install drivers if the OS requires them.

Recommendations

For best thermal performance and sustained throughput, use the supplied heat sink and ensure adequate case airflow. Verify that the installed M.2 module is NVMe-capable (not SATA) and that the motherboard BIOS and operating system support NVMe devices.
