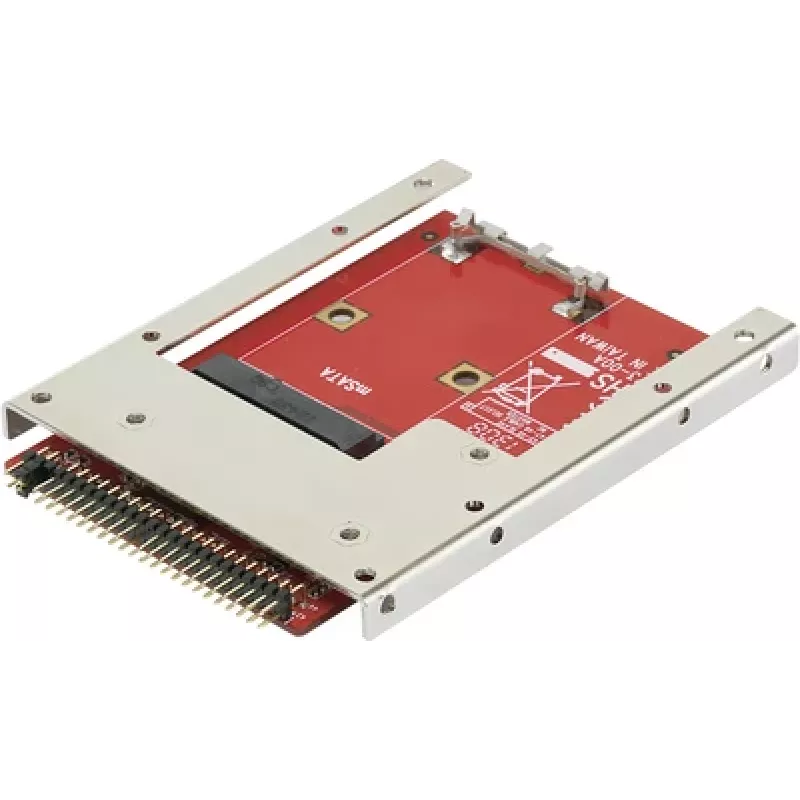

Interfaceconverter Renkforce IDE mSATA 28554C162A voor het aansluiten van mSATA SSD's op IDE-interface

The Renkforce Interface converter IDE mSATA 28554C162A enables connection of mSATA solid-state drives to systems that provide an IDE (PATA) interface. This adapter is intended to retrofit modern mSATA SSDs into older desktops, industrial controllers or legacy notebooks that lack SATA or mSATA connectors. It provides a physical and protocol bridge so an mSATA module can be recognised and used by an IDE host, simplifying storage upgrades, repairs and data migration on equipment that must be retained.

Advantages

The converter offers a compact form factor that fits into existing drive bays or adapter slots without requiring significant hardware changes. It preserves the mSATA SSD's performance characteristics within the limitations of the IDE interface and reduces the need to replace legacy motherboards or controllers. The device is passive and requires no special drivers for most BIOS-based IDE hosts, enabling straightforward integration for service technicians and system integrators.

Suitable for

• Upgrading older desktop PCs to SSD storage without replacing the motherboard
• Repairing industrial or embedded systems that only provide IDE/PATA connections
• Migrating data from legacy machines to modern mSATA modules for backup or cloning
• Testing or bench work where an mSATA drive must be used with an IDE host

Key specifications

• Interface: mSATA (SSD) to IDE (PATA)
• Supported form factor: mSATA module
• Power: standard IDE power supply connection required from host
• Data transfer compatibility: operates within IDE/PATA protocol limits
• Physical connector: 44-pin/40-pin IDE-compatible connector or corresponding adapter wiring
• Mounting: compact adapter suitable for internal installation in drive bays or on brackets

How to use

Install the mSATA SSD into the adapter socket and secure it according to the module's mounting points. Connect the adapter to the host system using the IDE ribbon cable and the appropriate power connector from the host power supply. Power on the system and enter the BIOS if necessary to enable IDE device detection; the mSATA SSD should appear as an IDE storage device. If required, use standard disk management or cloning tools to partition, format or migrate data to the newly connected drive. Follow the host system manual for any BIOS settings related to drive mode or master/slave configuration.

Recommendations

Verify compatibility of the host BIOS with non-standard IDE devices before installation and ensure the mSATA module is supported in terms of capacity and power. Use a grounded workspace when handling the SSD and adapter, and back up important data prior to migration. For industrial installations, confirm mechanical fixation and cable routing to prevent vibration or disconnection.
