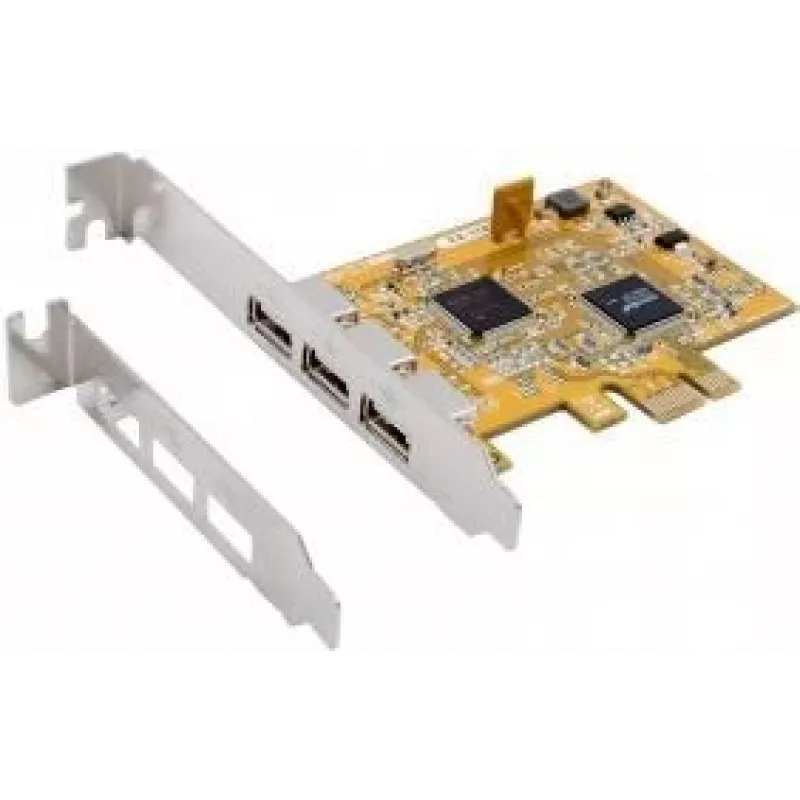

Interfacekaart EXSYS EX-11053 USB 2.0

The EXSYS EX-11053 USB 2.0 interface card is a full-height PCIe expansion card designed to add USB 2.0 connectivity to desktop computers. Equipped with a NEC D720102GC chipset, it provides a maximum theoretical transfer rate of 0.48 Gbit/s and fits standard full-height PCIe slots. The card is intended for internal installation and measures 93.5 mm in width and 67.9 mm in depth, with a weight of approximately 200 g. It supports multiple Windows operating systems, including Windows 10, 8, 7, Vista, XP and 2000.

Advantages

The EXSYS EX-11053 delivers stable USB 2.0 data transfer performance through a NEC D720102GC controller, enabling compatibility with a wide range of peripherals that use the USB 2.0 standard. Its full-height PCIe design makes it suitable for most desktop PC chassis, and internal installation keeps external ports integrated into the system. Compatibility with legacy and more recent Windows versions allows reuse in older systems and gradual upgrades.

Suitable for (tasks / use cases)

• Adding additional USB 2.0 ports to desktop systems
• Connecting USB peripherals such as printers, external drives and input devices
• Upgrading older systems that lack sufficient USB ports
• Use in workstations or home PCs requiring stable USB 2.0 connectivity

Key specifications

• Host interface: PCIe
• Output interface: USB 2.0
• Controller chipset: NEC D720102GC
• Maximum data transfer rate: 0.48 Gbit/s
• Form factor: full-height PCIe card for internal installation
• Dimensions: 93.5 mm (width) × 67.9 mm (depth)
• Weight: 0.2 kg
• Operating system support: Windows 10, 8, 7, Vista, XP, 2000

How to use

Power down and unplug the computer before installing the EXSYS EX-11053. Open the PC case, locate an available full-height PCIe slot, and carefully insert the card until it is fully seated in the slot. Secure the card to the chassis with the mounting screw. Close the case and reconnect power. Boot the computer and install the required drivers if the operating system does not automatically recognize the device. After driver installation, connect USB devices to the card’s ports and verify operation through the operating system device manager.

Recommendations

For reliable operation, install the card in a properly ventilated system and ensure the case provides adequate cooling. Use quality USB cables and avoid overloading the card with high-power devices without additional powered USB hubs. Check for the latest drivers compatible with your Windows version if automatic installation does not provide full functionality.
