Interfacekaart Supermicro RSC-RR1U-E16

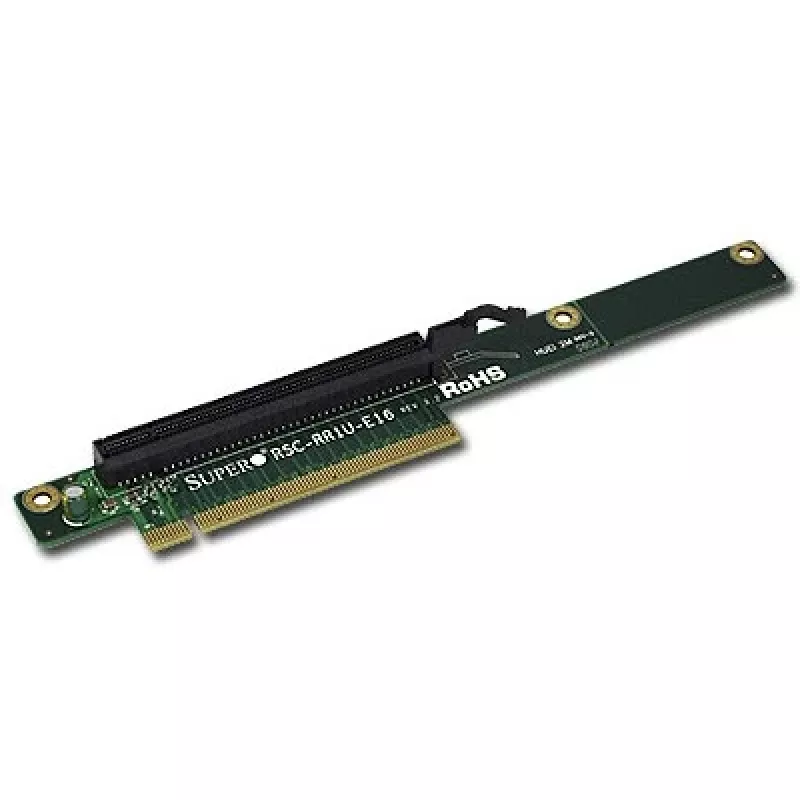

The Supermicro RSC-RR1U-E16 is a PCIe interface card in a 1U form factor designed to add a PCI-E x16 connection to compatible servers. It is RoHS certified and intended for use in data centers and enterprise environments where reliable wired expansion and connectivity are required.

Advantages

This card provides a full-length PCI-E x16 interface in a compact 1U form factor, allowing servers with limited space to gain high-bandwidth expansion. RoHS certification ensures compliance with environmental and safety regulations. The Supermicro RSC-RR1U-E16 is engineered for straightforward integration into Supermicro systems and other compatible chassis that support a PCIe x16 slot.

Suitable for

• Adding a PCI-E x16 expansion slot to 1U rackmount servers
• Upgrading server connectivity in data centers
• Enterprise applications requiring wired PCIe expansion

Key specifications

• Form factor: 1U
• Interface: PCI-E x16
• Slots: 1 x PCI-E x16
• Manufacturer: Supermicro (MPN: RSC-RR1U-E16)
• Compliance: RoHS certified

How to use

Power down the server and follow the chassis manufacturer’s instructions to access the expansion area. Install the Supermicro RSC-RR1U-E16 into an available PCIe x16 slot, secure it according to the server’s mounting procedure, and reconnect power. After booting, verify that the system firmware and operating system recognize the card and install any required drivers or management utilities.

Recommendations

Ensure the host server supports a PCIe x16 card in a 1U form factor and check clearance for cooling and adjacent components. Use proper ESD precautions during installation and consult Supermicro documentation for compatibility lists and firmware recommendations.
