IP-beveiligingscamera Hikvision DS-2CD1363G2-LIU 3200x1800 binnen buiten

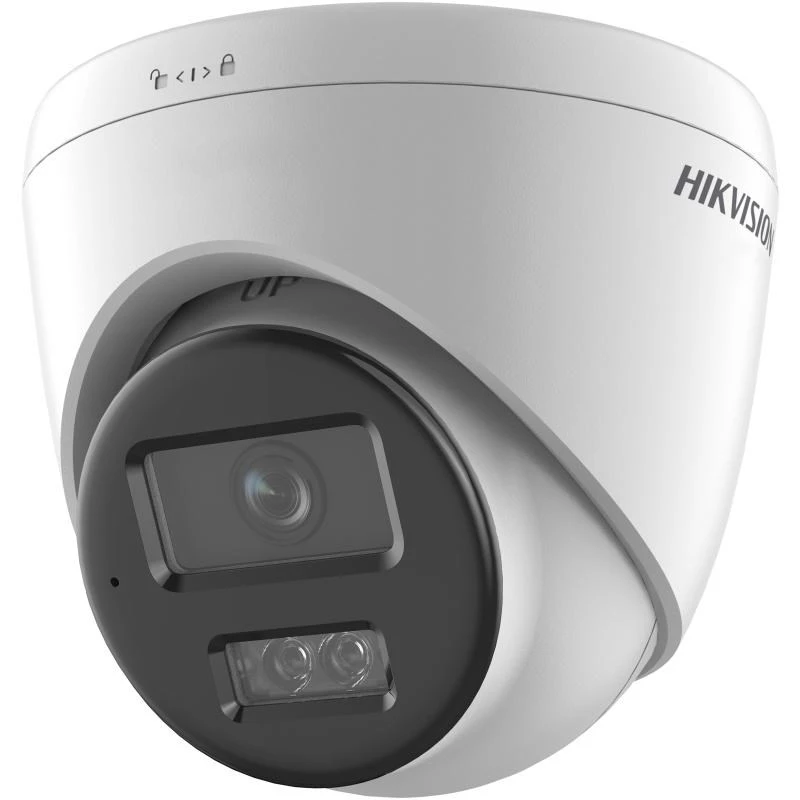

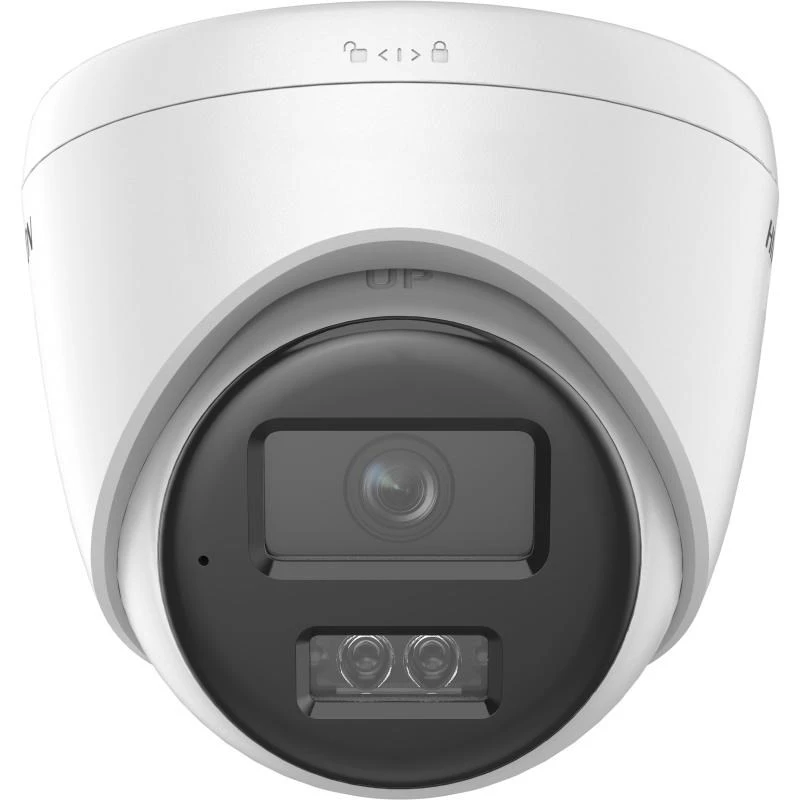

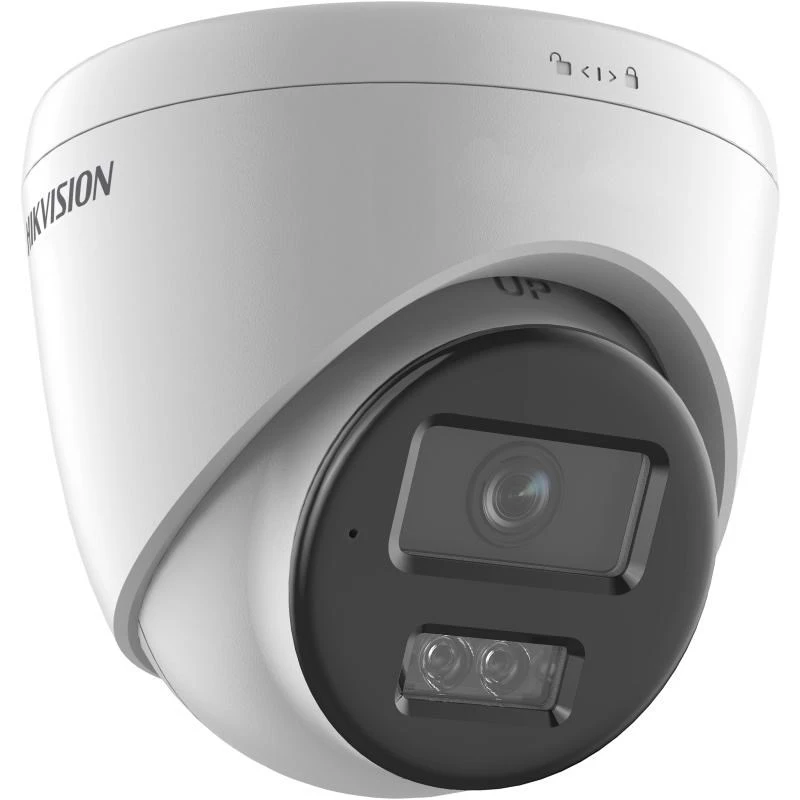

The Hikvision DS-2CD1363G2-LIU 3200x1800 Indoor Outdoor is a dome-style IP security camera suitable for both indoor and outdoor surveillance. It delivers a 3200 x 1800 pixel resolution from a CMOS sensor and provides wide coverage with a 105° horizontal viewing angle and full 360° rotation. The camera supports reliable detection up to 76 m and connects via a single Fast Ethernet (RJ-45) port. Its compact white housing and 0.34 kg weight make it suitable for wall, ceiling, or pole mounting where discrete, high-resolution monitoring is required.

Advantages

The camera combines high-resolution imaging with a compact dome form factor for flexible installation. ColorVu low-light imaging improves visibility in dim conditions while Motion Detection 2.0 helps distinguish human and vehicle motion from other moving objects, reducing false alarms. Fast Ethernet connectivity simplifies network integration and the outdoor-capable design supports year-round operation in exposed locations.

Suitable for

• Small and medium business premises: shops, offices, and reception areas
• Outdoor entrances and parking areas where vandal-resistant dome housing is preferred
• Indoor common areas such as hallways, corridors, and lobbies
• Perimeter and access point monitoring with extended detection range

Key specifications

• Optical resolution: 3200 x 1800 pixels
• Image sensor type: CMOS
• Horizontal field of view: 105°
• Pan capability: 360° rotation
• Detection distance: up to 76 m
• Network interface: Fast Ethernet (RJ-45), 1 port
• Color: White
• Weight: 0.34 kg

How to use

Install the DS-2CD1363G2-LIU on a stable surface such as a wall or ceiling and orient the dome to cover the desired scene. Connect the camera to your local network using a Cat5e/Cat6 cable into the Fast Ethernet (RJ-45) port and configure network settings via your NVR or Hikvision client software. Adjust rotation and camera angle to achieve the required field of view and use on-device or central recording to store footage. Enable Motion Detection 2.0 and ColorVu features through the camera’s settings to optimize detection and low-light performance.

Recommendations

Position the camera to minimize direct exposure to intense light sources and obstructions. Use a sheltered mounting location or compatible housing if the unit will be exposed to extreme weather. Regularly check firmware updates and perform periodic lens cleaning to maintain image clarity and reliable motion detection.
