IP-beveiligingscamera VIVOTEK IB9383-HTV 2560 x 1920 outdoor bedraad bullet

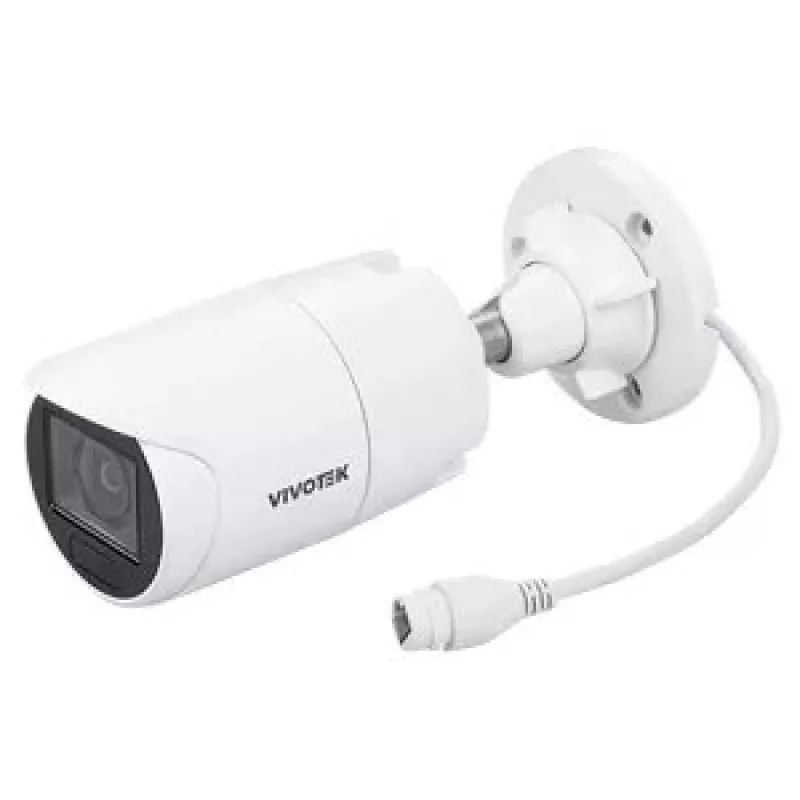

The VIVOTEK IB9383-HTV 2560 x 1920 Outdoor Wired Bullet is an outdoor IP security camera designed for fixed surveillance installations where high-resolution imaging and reliable wired connectivity are required. Equipped with a 2560 x 1920 resolution CMOS sensor, the camera captures detailed color images in various lighting conditions, supported by a minimum illumination of 0.04 lx. Its bullet form factor and robust enclosure are intended for exterior mounting and continuous operation in outdoor environments.

Advantages

The camera delivers high-resolution imagery at 2560 x 1920 pixels, enabling clearer identification of subjects and details at a distance. A wide horizontal lens viewing angle range of approximately 28.7° to 95.4° allows flexible scene coverage when paired with the variable focal length. The optical range of 2.8–12 mm combined with a 48x digital zoom supports targeted inspection of distant areas, while a maximum detection distance of around 67 m extends its useful monitoring range. Wired network connectivity ensures stable data transmission for continuous recording and live streaming.

Suitable for

• Perimeter surveillance of commercial and industrial sites
• Parking lots and large outdoor areas
• Entrances and access control points
• Public spaces requiring high-resolution monitoring

Key specifications

• Image sensor type: CMOS
• Maximum resolution: 2560 x 1920 pixels
• Minimum illumination: 0.04 lux
• Focal length: 2.8 – 12 mm
• Horizontal field of view: approximately 28.7° – 95.4°
• Digital zoom: 48x
• Rotation capability: up to 180°
• Estimated detection distance: up to 67 m
• Form factor: outdoor bullet camera
• Connectivity: wired network connection

How to use

Mount the camera on a stable surface using appropriate outdoor mounting hardware and ensure the housing is oriented to cover the intended scene. Connect the camera to a wired network and power source following the manufacturer's installation guidelines and local electrical regulations. Adjust the focal length and horizontal angle to frame the critical area; use the 48x digital zoom for fine inspection during setup or from a connected client. Configure motion detection, recording schedules, and image settings in the network video recorder (NVR) or supported management software to optimize storage and event detection.

Recommendations

For reliable performance, install the camera with a clear line of sight and minimize obstructions. Use weatherproof cabling and surge protection for outdoor runs, and configure exposure and noise-reduction settings when monitoring low-light areas. Periodic cleaning of the lens and checks of mounting hardware will help maintain image quality and system reliability.
