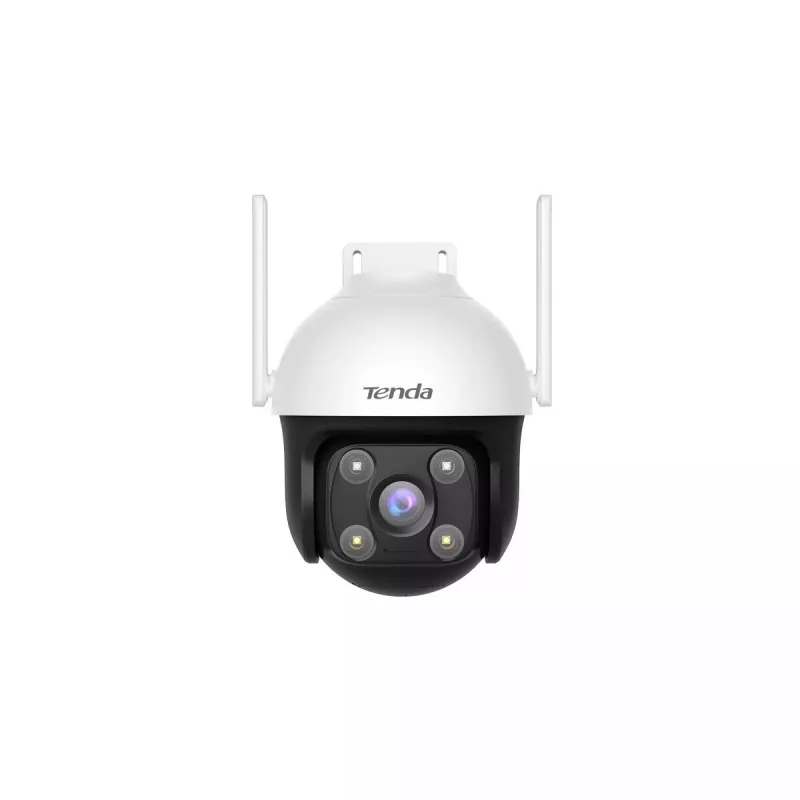

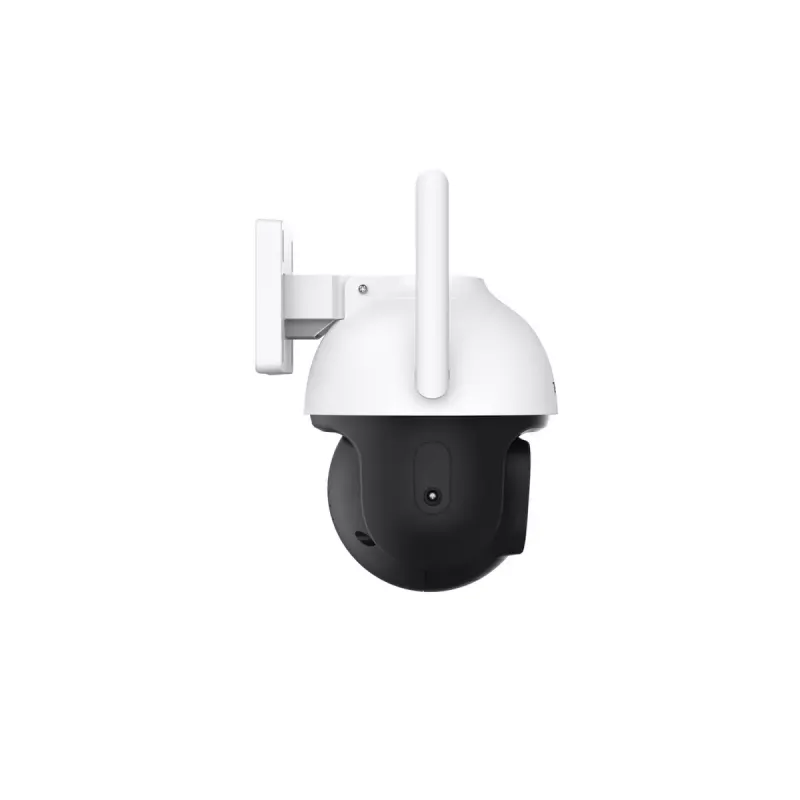

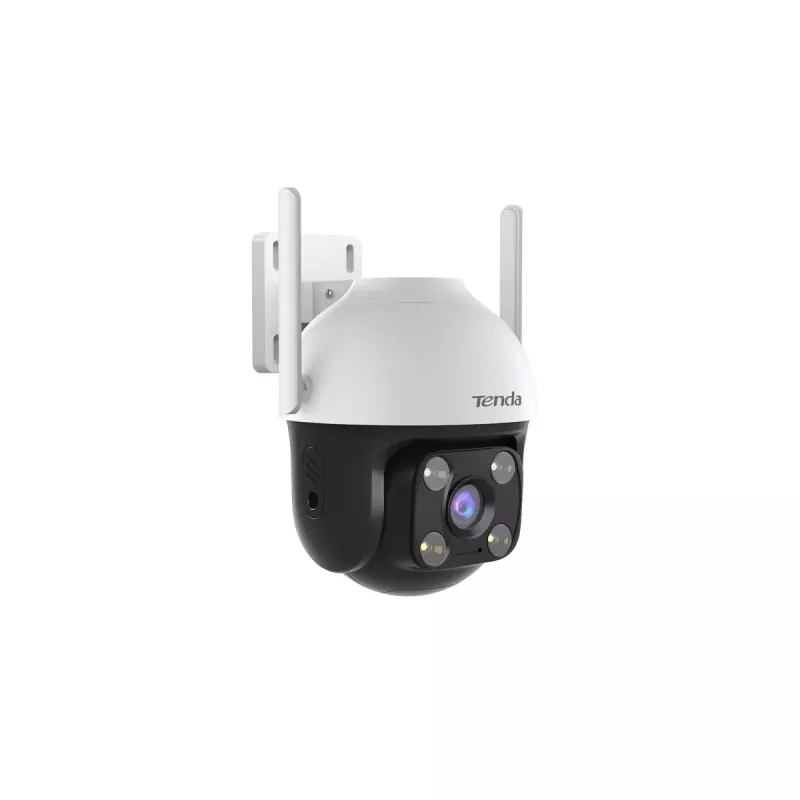

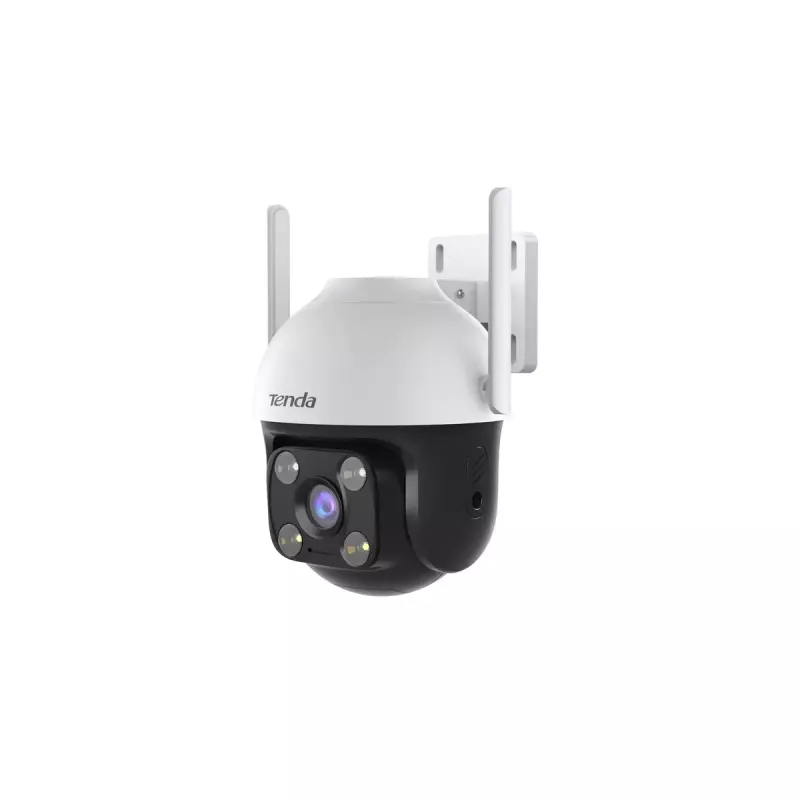

IP-bewakingscamera Tenda CH7-WCA 2560 x 1440 pixels

The Tenda CH7-WCA IP security camera delivers 2560 x 1440 (4MP) resolution in a spherical, rotatable housing designed for both indoor and outdoor surveillance. Equipped with a large-aperture lens and high-performance CMOS sensor, the camera provides detailed daytime images and multiple night-vision modes to support 24/7 monitoring. The dual-antenna design and support for wired or wireless connections enable flexible installation, while pan/tilt control with up to 360° coverage and 355° rotation angle lets you position the view remotely or set automatic patrols. Additional features include two-way audio, smart human and vehicle detection, H.265 video compression, support for SD, NVR and cloud storage, and weather-resistant construction for outdoor use.

Advantages

The camera combines a 4MP sensor and F1.6 aperture lens to deliver sharper images with greater detail, while H.265 encoding reduces bandwidth and storage requirements. Dual antennas with MIMO technology improve wireless stability and range, and the device also supports Ethernet for a wired connection. Smart detection distinguishes people and vehicles to reduce false alarms and can trigger audio/light alerts. Full-duplex two-way audio enables real-time communication, and integration with Alexa allows voice-activated viewing. Weatherproof design and multiple mounting options make it suitable for varied environments.

Suitable for

• Residential outdoor and indoor perimeter monitoring (yards, driveways, entrances)
• Small business surveillance for storefronts, loading zones, and parking areas
• Remote monitoring where pan/tilt and 360° coverage are required
• Locations requiring night vision up to long-range IR and full-color night modes

When it may not be suitable

The camera is intended for general-purpose surveillance and may not meet requirements for specialized industrial imaging, high-speed object tracking beyond 30 fps, or certified security installations that demand specific accredited hardware. If you require integrated professional alarm panels or certified intrusion systems, additional equipment may be necessary.

Key specifications

• Image resolution: 2560 x 1440 pixels (4 MP)
• Lens aperture: F1.6 (large aperture for improved low-light performance)
• Frame rate: up to 30 fps
• Pan/tilt coverage: 360° field of view, 355° rotation angle, remote control and automatic patrol (up to 6 patrol routes)
• Connectivity: dual-band Wi‑Fi with dual antennas (MIMO) and Ethernet LAN
• Night vision: IR LEDs with up to 30 m range and full-color night vision modes
• Video compression: H.265
• Smart detection: human and vehicle recognition with audio and light alerts
• Audio: two-way full-duplex communication
• Storage options: cloud storage (trial available), microSD support up to 256 GB, NVR support
• Ingress protection: weatherproof and dustproof design for outdoor use
• Product color: white

How to use

Choose a mounting location (wall, ceiling or pole) and install the adjustable bracket with screws or straps as appropriate. Connect the camera to power and set up network access via Wi‑Fi using the dual antennas for improved wireless range, or connect an Ethernet cable for wired operation. Use the TDSEE mobile app or a browser interface to complete device activation, configure resolution and recording settings, define patrol routes, and enable smart detection and alert preferences. For voice control, link the device to Alexa if required. Insert a microSD card or register cloud/NVR storage to retain recordings.

What to consider before purchase

• Confirm whether you will use wired Ethernet or Wi‑Fi and whether signal strength is sufficient for wireless operation
• Decide on storage method: microSD card capacity, cloud subscription, or NVR requirements
• Verify mounting surface and required accessories for wall, ceiling, or pole installation
• Check local regulations regarding audio recording and privacy where two-way audio or alerts will be used

Recommendations

For optimal performance, mount the camera at a height that provides unobstructed views of the area, keep the lens free of debris, use Ethernet where possible for mission-critical links, and enable human/vehicle detection to reduce false alerts. Regularly update firmware via the TDSEE app and use encrypted cloud or secure local storage to protect recorded data.
