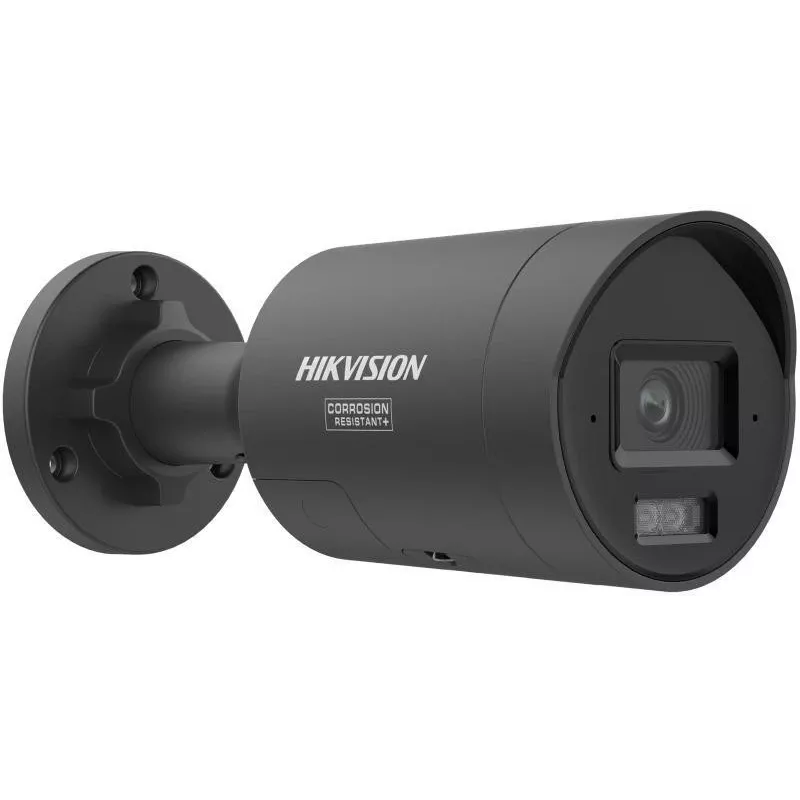

Hikvision DS-2CD20166G3-IUY/SL(2.8mm)/eFO-STDBLACK 16 MP AcuSense bullet-IP-camera, zwart

The Hikvision DS-2CD20166G3-IUY/SL(2.8mm)/eFO-STDBLACK is a 16 MP AcuSense bullet IP camera with active deterrence via strobe light and audio alarm. It features Powered by DarkFighter technology for low-light performance and deep learning-based classification of persons and vehicles.

Key features

• 16 MP AcuSense bullet IP camera with strobe light and audio alarm
• Active deterrence with strobe light and audio alarm (/SL: white light)
• Powered by DarkFighter technology for low-light performance
• Deep learning-based person and vehicle classification
• True WDR 130 dB for clear images under strong backlight
• IP67 water and dust resistance
• Corrosion-resistant design (NEMA 4X)
• Tamper-proof and environmentally friendly packaging

Specifications

• Brand: Hikvision
• MPN: DS-2CD20166G3-IUY/SL(2.8mm)/eFO-STDBLACK
• Image sensor: 1/1.8" Progressive Scan CMOS
• Max. resolution: 4608 × 3456
• Min. illumination: Color: 0.0008 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
• Shutter speed: 1 s to 1/100,000 s
• Day/Night: IR cut filter
• Pan/Tilt/Rotate: Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
• Lens type: Fixed lens, 2.8 mm
• Focal length and field of view – 2.8 mm: Horizontal: 94.5°, vertical: 69.9°, diagonal: 123.2°
• Lens mount: M16
• Aperture type: Fixed
• Aperture: F1.6
• Depth of field – 2.8 mm: 2.9 m to ∞
• DORI – 2.8 mm: D: 117 m, O: 46 m, R: 23 m, I: 11 m
• Illuminator type: Infrared (IR)
• Illuminator range: Up to 40 m
• Smart Supplement Light: Yes
• IR wavelength: 850 nm
• Main stream 50 Hz: 12.5 fps (4608 × 3456), 20 fps (4608 × 2592), 25 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Main stream 60 Hz: 15 fps (4608 × 3456), 20 fps (4608 × 2592), 30 fps (3840 × 2160, 3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
• Sub-stream 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third stream: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
• Video compression: Main: H.265+/H.265/H.264+/H.264; Sub-stream: H.265/H.264/MJPEG; Third: H.265/H.264
• Video bitrate: 32 Kbps to 24 Mbps
• H.264 type: Baseline Profile, Main Profile, High Profile
• H.265 type: Main Profile
• Bitrate control: CBR, VBR
• SVC: H.264 and H.265 encoding
• ROI: 1 fixed region for main stream
• Audio type: Mono
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio bitrate: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32–192 Kbps (MP2L2)/8–320 Kbps (MP3)/16–64 Kbps (AAC-LC)
• Audio sampling rate: 8 kHz / 16 kHz / 32 kHz / 48 kHz
• Noise filtering: Yes
• Network protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous live view: Up to 6 channels
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Users: Up to 32 users (admin, operator, user)
• Security: Password protection, HTTPS, 802.1X, watermark, IP filter, TLS 1.1/1.2/1.3, host authentication (MAC)
• Network storage: NAS (NFS, SMB/CIFS), ANR
• Client software: iVMS-4200, Hik-Connect, Hik-Central
• WDR: 130 dB
• SNR: ≥ 52 dB
• Image enhancement: BLC, HLC, 3D DNR, distortion correction, Defog
• Privacy masks: 4 programmable polygon masks
• Ethernet interface: 1 × RJ45 10/100 M
• Memory card slot: microSD/microSDHC/microSDXC up to 512 GB
• Built-in microphone: Yes, single
