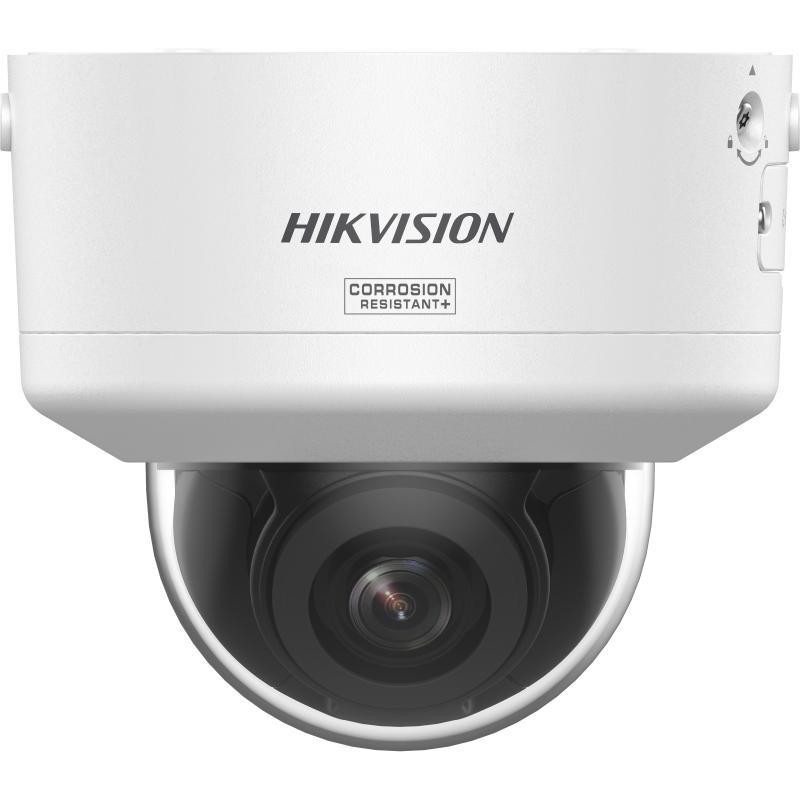

IP-camera Hikvision DS-2CD2766G3-IPTRZSY(2.8-12mm)

The Hikvision DS-2CD2766G3-IPTRZSY(2.8-12mm) is a 6 MP dome IP security camera featuring AcuSense PTRZ technology with motorized pan, tilt, rotate, and zoom for easy installation and monitoring. It delivers excellent low-light performance with Powered by DarkFighter and HikAI-ISP for superior noise reduction, and includes deep learning-based human and vehicle classification.

Key features

• 6 MP dome IP camera with motorized PTRZ (pan, tilt, rotate, zoom)
• AcuSense technology for human and vehicle classification
• Powered by DarkFighter for excellent low-light performance
• HikAI-ISP for superior noise reduction
• Anti-corrosion design (NEMA 4X)
• IP67 water and dust resistant, IK10 vandal resistant
• 130 dB WDR for clear imaging in strong backlight
• Motorized varifocal lens 2.8-12 mm
• IR illumination up to 40 m

Specifications

• Product type: IP Security Camera
• Brand: Hikvision
• MPN: DS-2CD2766G3-IPTRZSY(2.8-12mm)
• Form factor: Dome
• Maximum resolution: 6 MP
• Focal length range: 2.8 - 12 mm
• International Protection (IP) code: IP67
• Image sensor: 1/1.8" Progressive Scan CMOS
• Max. resolution: 3200 × 1800
• Min. illumination: Color: 0.001 lux (F1.2, AGC ON), B/W: 0 lux with IR
• Shutter time: 1 s to 1/100,000 s
• Day & Night: IR cut filter
• Camera adjustment: Pan: 0° to 350°, tilt: 0° to 85°, rotate: 0° to 350°
• Lens type: Motorized varifocal, 2.8 to 12 mm
• Aperture: F1.2
• Depth of field: 1 m to ∞
• IR range: Up to 40 m
• IR wavelength: 850 nm
• Video compression: Main stream: H.265/H.264/H.264+/H.265+; Sub-stream: H.265/H.264/MJPEG; Third stream: H.265/H.264
• Audio compression: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• API: ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• Security: Password protection, HTTPS encryption, 802.1X authentication, watermark
