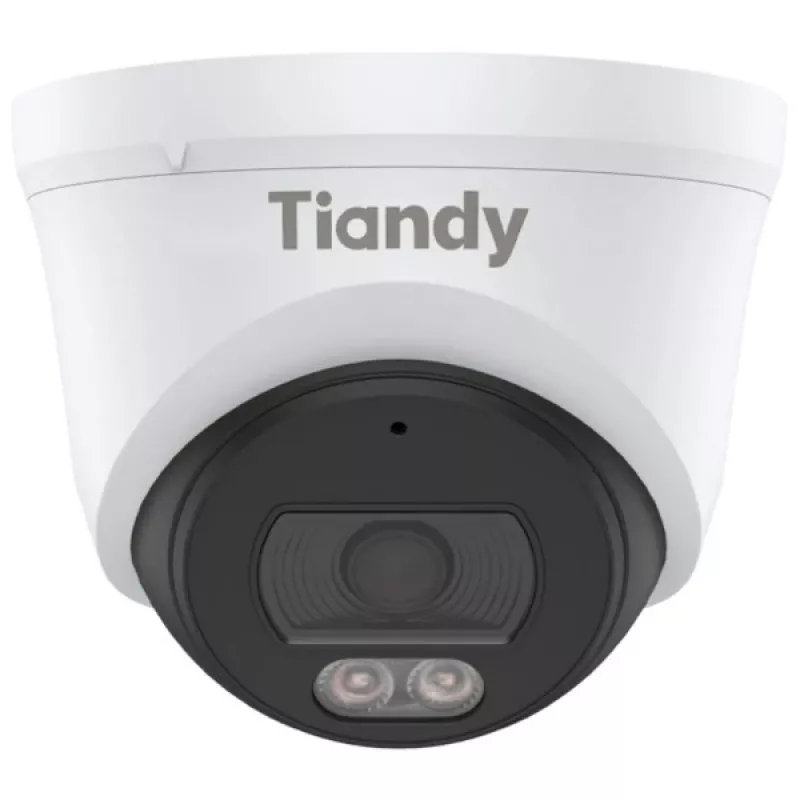

IP-camera TC-C32XV 2FNA-28 Spark Series - 2 MP 2,8 mm Tiandy

The Tiandy TC-C32XV 2FNA-28 is a high-performance 2 Megapixel IP camera from the Spark Series, designed for reliable outdoor surveillance. With a 2.8 mm fixed lens and 106.5° horizontal field of view, it delivers clear 1080p video at 30 fps. Featuring 120 dB Super WDR, 0.002 Lux minimum illumination, and built-in IR LEDs for night vision up to 30 meters, this camera ensures round-the-clock monitoring. Its IP67 and IK10 ratings provide robust protection against dust, water, and vandalism. Power via DC 12V or PoE (802.3af) with low power consumption of max 4.5 W. Includes built-in microphone and micro SD card slot (up to 512 GB).

Advantages

Superior image quality with 2 MP resolution and 120 dB WDR for challenging lighting conditions. Durable metal+plastic housing with IP67 and IK10 ratings ensures long-lasting performance in harsh environments. Flexible installation with PoE support and compact bullet form factor.

Suitable for

• Outdoor perimeter surveillance
• Retail stores and warehouses
• Parking lots and building entrances
• Residential and commercial properties

Key specifications

• Resolution: 2 MP (1920x1080)
• Sensor: 1/2.8" Progressive Scan CMOS
• Lens: 2.8 mm fixed, F2.0
• Field of View: 106.5° horizontal
• IR Range: Up to 30 m
• Video Compression: S+265 / H.265 / H.264
• WDR: 120 dB Super WDR
• Minimum Illumination: 0.002 Lux (color)
• Audio: Built-in microphone
• Storage: Micro SD up to 512 GB
• Network: 1x RJ45 10/100M Ethernet
• Power: DC 12V / PoE (802.3af), max 4.5 W
• Protection: IP67, IK10
• Operating Temperature: -35°C to 65°C
• Material: Metal + Plastic

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the micro SD card is high endurance for continuous recording. Mount the camera in a location with clear view and adequate lighting for best image quality.
