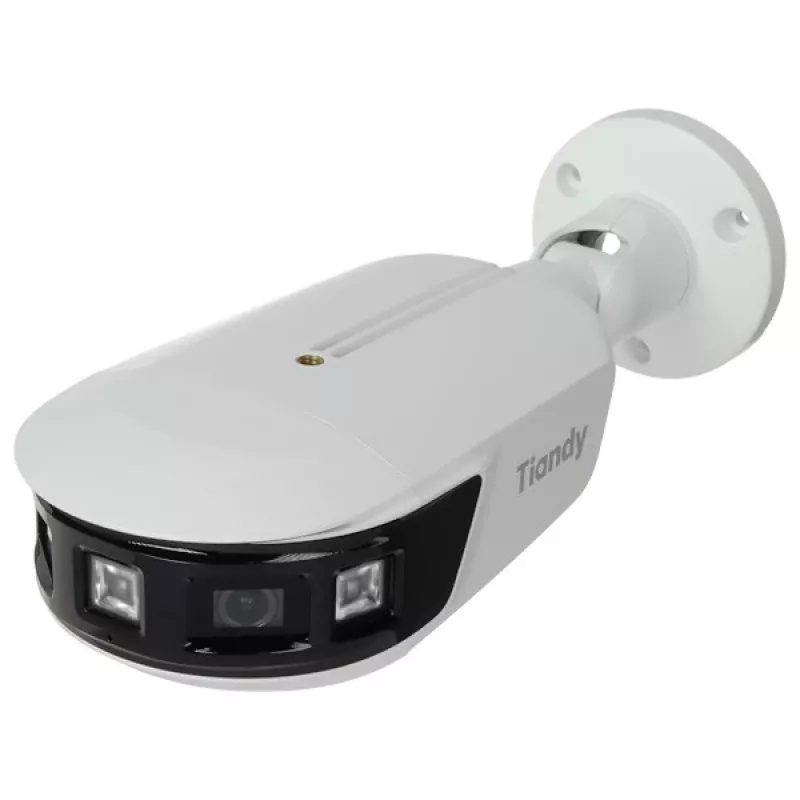

IP-camera TC-C382V 8 MP 2 x 2,8 mm

The TC-C382V is a high-performance 8 MP dual-lens IP camera designed for professional surveillance. With two 2.8 mm fixed lenses, it delivers a combined 180° horizontal field of view, ensuring comprehensive coverage. Equipped with advanced H.265 compression and 120 dB Super WDR, this camera provides clear images even in challenging lighting conditions.

Advantages

Dual 8 MP sensors offer exceptional detail, while the 180° panoramic view reduces blind spots. The 120 dB WDR ensures balanced exposure in high-contrast scenes, and the built-in IR LEDs provide up to 30 meters of night vision. With IP67 and IK10 ratings, it withstands harsh weather and vandalism.

Suitable for

• Large retail stores and warehouses
• Parking lots and outdoor perimeters
• Office buildings and campuses
• Critical infrastructure requiring high-resolution monitoring

Key specifications

• Sensor: 1/2.8" Progressive Scan CMOS (dual)
• Resolution: 8 MP (4096x1800)
• Lens: 2 x 2.8 mm fixed, F1.6
• Field of View: 180° horizontal (combined)
• Video Compression: H.265/H.264/M-JPEG
• Max Frame Rate: 30 fps @ 4096x1800
• Night Vision: IR up to 30 m
• WDR: 120 dB Super WDR
• Minimum Illumination: 0.0008 Lux (color)
• Audio: Built-in mic, 1/1 audio I/O
• Alarm: 1/1 alarm I/O
• Local Storage: MicroSD up to 512 GB
• Network: 1x RJ45 10/100 Mbps
• Power: DC 12V / PoE (802.3af)
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Operating Temperature: -35°C to 65°C
• Smart Features: Motion detection, line crossing, intrusion, object left/removed

Recommendations

For optimal performance, use a PoE switch or injector compliant with IEEE 802.3af. Ensure the mounting surface can support the camera's weight and provide a stable connection. Regularly clean the lens and IR window to maintain image quality.
