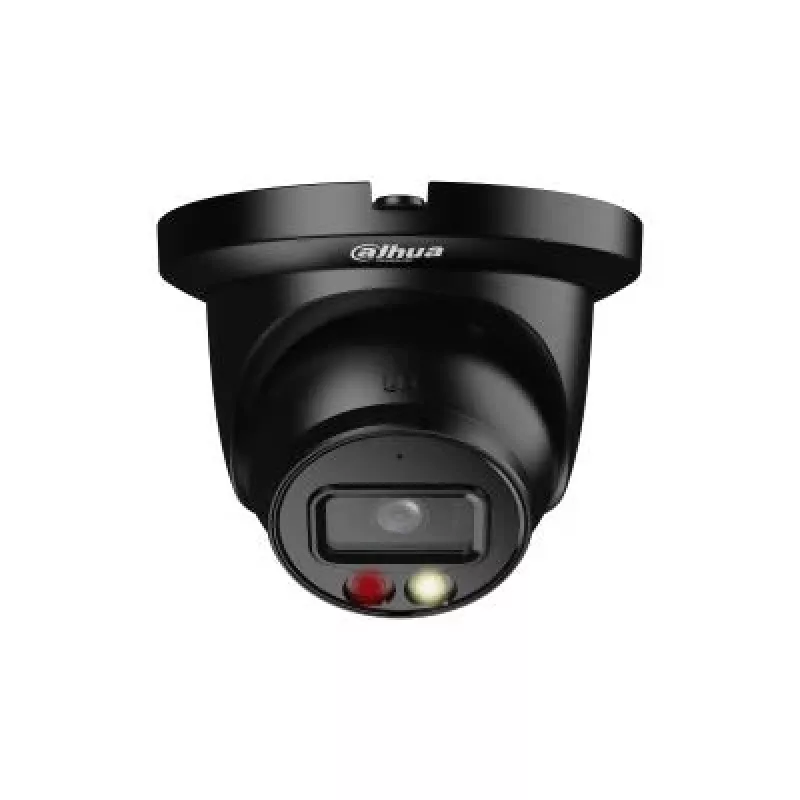

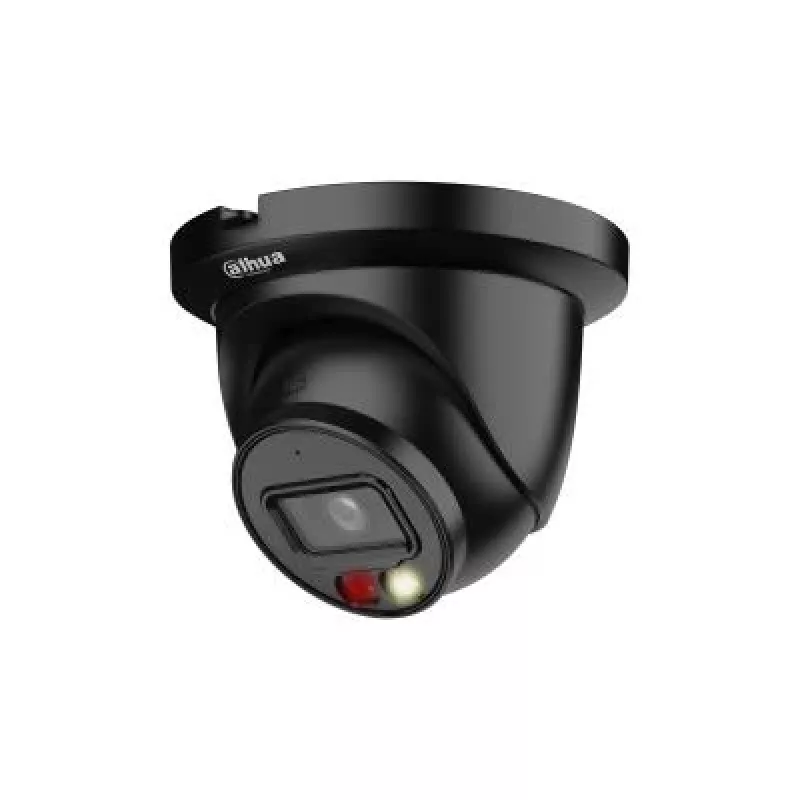

IP-domecamera DAHUA HDW2649TM-S-IL-0280B-B 6MP eyeball met infraroodverlichting

>1/2.7" CMOS image sensor, low luminance, and high definition image.
>Outputs max. 6 MP (3288×1850) @20 fps, and supports 2688×1520 (2688 × 1520) @25/30 fps.
>H.265 codec, high compression rate, ultra-low bit rate.
>Built-in warm light and IR LED, the max. IR distance is 30 m and the max. warm light distance is 30 m.
>ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
>Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
>Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
>Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
>Supports max. 256 G Micro SD card; built in Mic.
>12 VDC/PoE power supply, easy for installation.
>IP67 protection.
>SMD Plus.
>Focal Length 2.8mm. Field of View 112°


Vendor Homepage: www.dahuasecurity.com/products/All-Products/Network-Cameras/WizSense-Series/2-Series/Smart-Dual-Light/IPC-HDW2649TM-S-IL | Form factor: Eyeball | International Protection (IP) code: IP67 | Connectivity technology: Wired | Type: IP security camera | Wide Dynamic Range (WDR): Yes | Field of view (FOV) angle: 112 | Number of sensors: 1 | Optical sensor size: 1/2.7 | Sensor type: CMOS | Fixed focal length: 2.8 | B/W night vision distance: 30 | LED type: IR | Night vision: Yes | 3D NR (Noise Reduction): Yes | Back Light Compensation (BLC): Yes | Highlight Compensation (HLC): Yes | Maximum resolution: 3288×1850 | Total megapixels: 6 | Built-in microphone: Yes | Compatible memory cards: MicroSD (TransFlash) | Maximum memory card size: 256 | Ethernet LAN (RJ-45) ports: 1 | DC output voltage: 12 | Power consumption (typical): 4.6 | Power source type: DC,PoE | Operating temperature (T-T): –40 °C to +60 °C | Diameter: 121.9 | Height: 99.1 | Weight: 530 | Model: IPC-HDW2649TM-S-IL-0280B | Units per Pallet: 0 | Units per Shipping Box: 1 | Unit Calculated Volume: 0.002254 | Unit Calculated Weight: 0.65

How to use

Select the desired focal length (3.6 mm or 2.8 mm) according to required field of view and mount the camera with the supplied fittings. Connect power using PoE to reduce cabling or use a 12 VDC supply. Insert a compatible microSD card (up to 256 GB) for local recording if needed. Configure exposure and shutter (Auto or Manual 1/3 s–1/100,000 s) via the camera interface and enable or adjust IR illumination for night operation. Install the camera outdoors with the lens and housing clean and unobstructed.

Recommendations

Use a weatherproof junction box for long-term outdoor installations, verify PoE injector or switch capacity before installation, and choose the focal length that provides the required coverage for your surveillance area.
