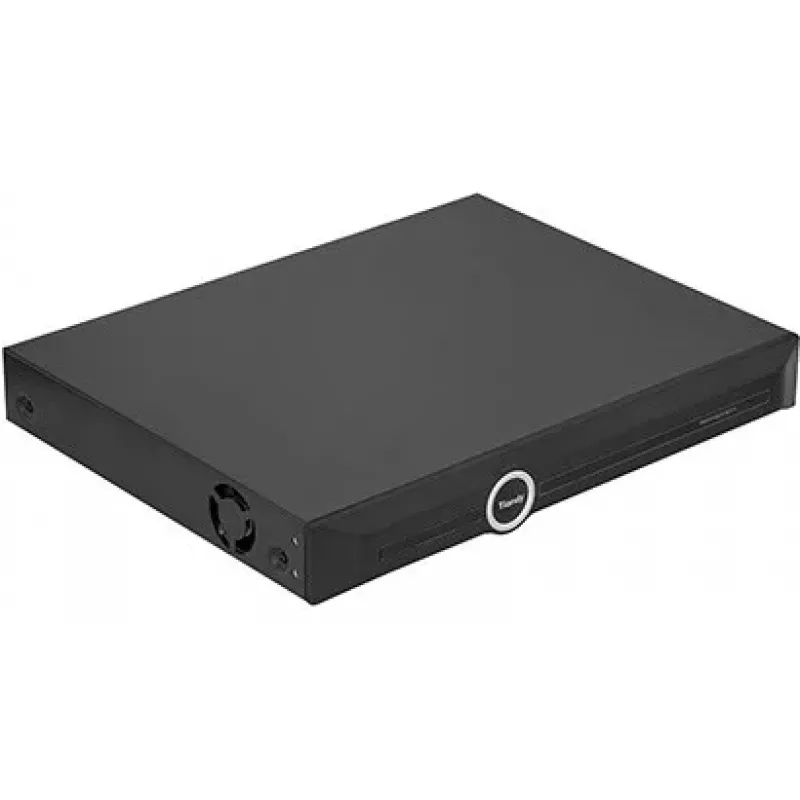

IP-recorder TC-R3232 32 kanalen Lite

The TC-R3232 is a high-performance 32-channel IP video recorder designed for professional surveillance systems. Supporting up to 8MP resolution and H.265+ compression, it delivers exceptional video quality while optimizing storage and bandwidth. With dual SATA bays supporting up to 10TB each, this NVR provides ample storage for extended recording. Ideal for medium to large-scale security installations, the TC-R3232 offers reliable 24/7 operation with remote access via web browser, mobile app, or client software.

Advantages

• 32-channel IP camera input for comprehensive coverage
• 8MP recording resolution for ultra-high-definition video
• H.265+/H.265/H.264 compression reduces storage needs by up to 50%
• Dual SATA bays with up to 10TB per bay for massive storage capacity
• Simultaneous playback of up to 16 channels for efficient review
• Remote access via web, mobile, and client software for flexible monitoring

Suitable for

• Retail stores and shopping centers
• Office buildings and corporate campuses
• Warehouses and logistics centers
• Educational institutions
• Hospitality venues

Key specifications

• Video Input: 32 Channels IP Camera
• Max Recording Resolution: 8MP (3840x2160)
• Video Compression: H.265+/H.265/H.264
• Video Output: 1x HDMI (up to 4K), 1x VGA
• HDD Bays: 2 SATA, up to 10TB each
• Network: 1x RJ45 10/100/1000Mbps Ethernet
• USB: 2x USB 2.0
• Audio: 1x RCA input, 1x RCA output
• Decoding: 2-ch@4K, 8-ch@1080P
• Power Supply: DC12V
• Operating Temperature: -10°C to 55°C (14°F to 131°F)

Recommendations

For optimal performance, pair the TC-R3232 with compatible IP cameras and use high-quality CAT6 Ethernet cables. Ensure adequate ventilation for the NVR and consider using a UPS for uninterrupted operation. For large-scale deployments, configure RAID storage for data redundancy.
