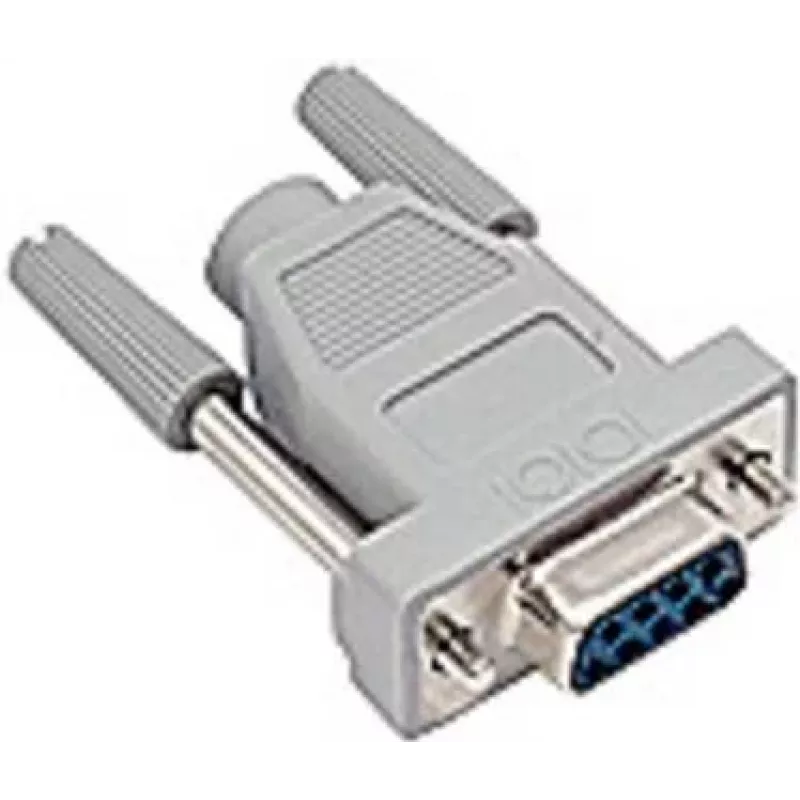

Ixxat CAN afsluitweerstand, D-SUB9 bus, 120 Ohm, zwart 1.04.0075.01000

This CAN termination resistor from Ixxat provides a reliable 120 Ohm termination for CAN networks using a D-SUB9 female connector. It prevents signal reflections on the bus, ensuring stable communication.

Highlights

• 120 Ohm termination resistor between CAN_L and CAN_H
• D-SUB9 female connector for direct connection to CAN devices
• Passive termination, no external power required
• Supports CAN data rates up to 1 Mbit/s
• Operating temperature range: -40 to +85 °C

In daily use

Simply plug the termination resistor into the D-SUB9 connector of your CAN device to terminate the bus correctly. Its compact plastic housing in black is durable and suitable for industrial environments.

Full specifications

• Product Type: CAN Termination Resistor
• Connector Type: D-SUB9
• Connector Gender: Female
• Resistance Value: 120 Ohm
• Bus Standard: CAN
• Termination Method: Passive
• Pin Configuration: Resistor between CAN_L and CAN_H
• Operating Temperature Range: -40 to +85 °C
• Storage Temperature Range: -40 to +85 °C
• Humidity: 10 to 90% non-condensing
• Housing Material: Plastic
• Color: Black
• Number of Pins: 9
• Max Data Rate: Up to 1 Mbit/s
• Mounting Type: Inline / Cable-end
• Function: Prevents signal reflections on CAN bus

Final note

Ensure proper termination on both ends of the CAN bus for optimal performance.
