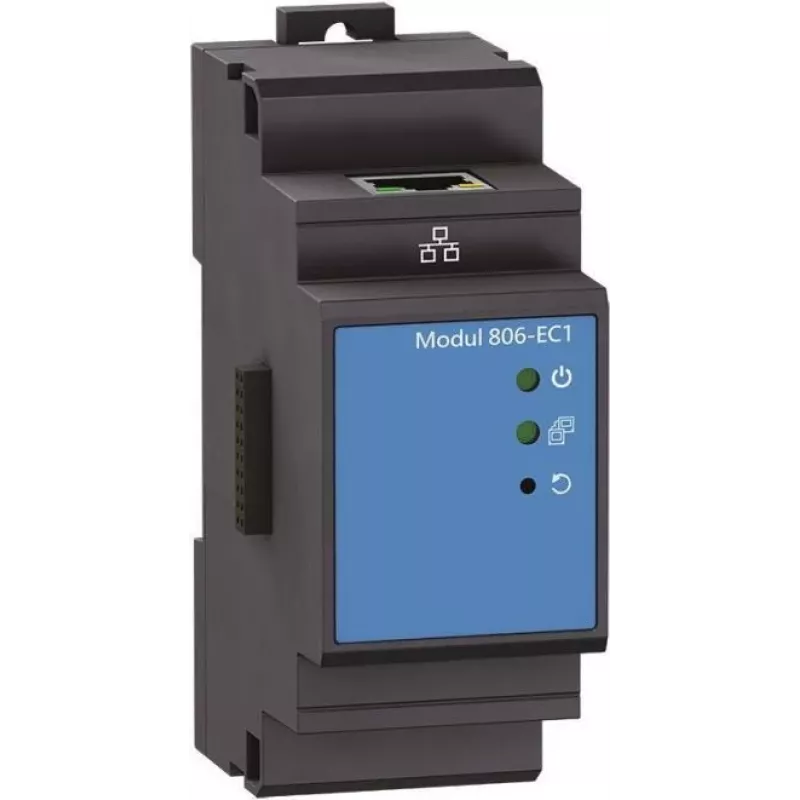

Janitza UMG 806-EC1 Ethernet-communicatiemodule voor UMG 806-serie 1402016

In industrial energy management and power quality analysis, the Janitza UMG 806-EC1 communication module adds Ethernet connectivity to a UMG 806 series power analyzer. Install it directly into the host device to enable remote data access, web server functionality, email notifications, and time synchronization over a standard 10/100BASE-T network.

Key specifications

• Module type: Communication module
• Interface: Ethernet (RJ45)
• Ethernet standard: 10/100BASE-T
• Compatibility: Janitza UMG 806, UMG 806-P, UMG 806-PQ
• Supported protocols: Modbus/TCP, HTTP, FTP, NTP, SMTP, SNTP, DNS, DHCP, ICMP
• Optional protocols: PROFINET, BACnet/IP
• Mounting: Internal plug-in module
• Power supply: Provided by host device
• Operating temperature: -10°C to +55°C
• Storage temperature: -20°C to +70°C
• Relative humidity: 5% to 95% non-condensing
• LED indicators: Link/Activity status
• Firmware update: Via Ethernet
• Data transfer rate: Up to 100 Mbps
• Security: Password protection via host device

Why choose it

This module integrates seamlessly with the UMG 806 series, providing reliable Ethernet communication for monitoring and control. It supports key industrial protocols and offers flexibility with optional PROFINET or BACnet/IP, making it suitable for diverse automation environments.

Ideal use cases

• Industrial energy management systems
• Power quality analysis and monitoring
• Building automation and control networks

Good to know

The module is powered by the host device, so no additional power supply is needed. It is designed for internal installation and operates within a wide temperature range, suitable for industrial settings.
