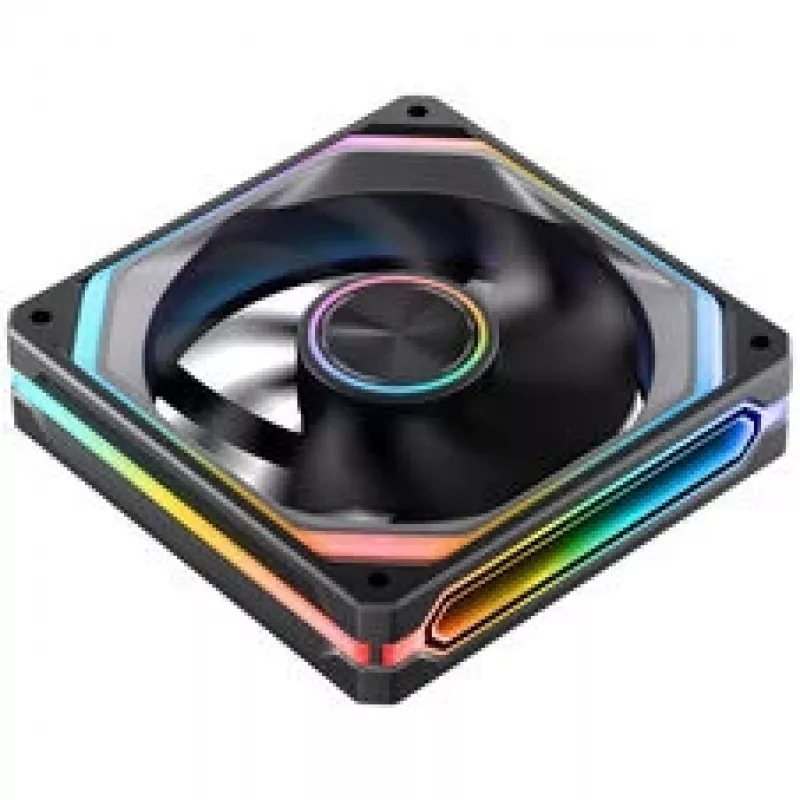

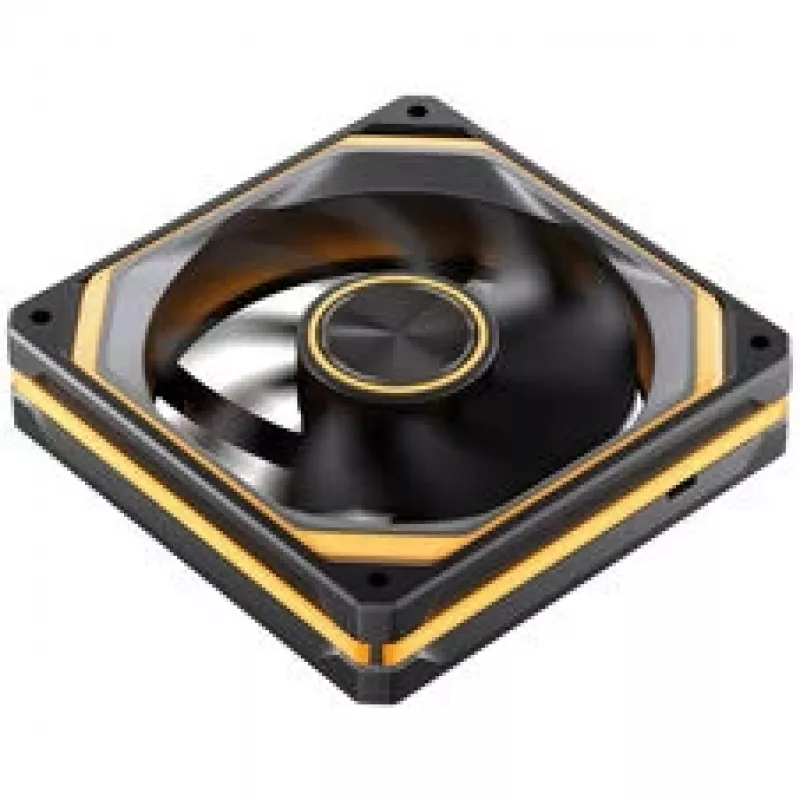

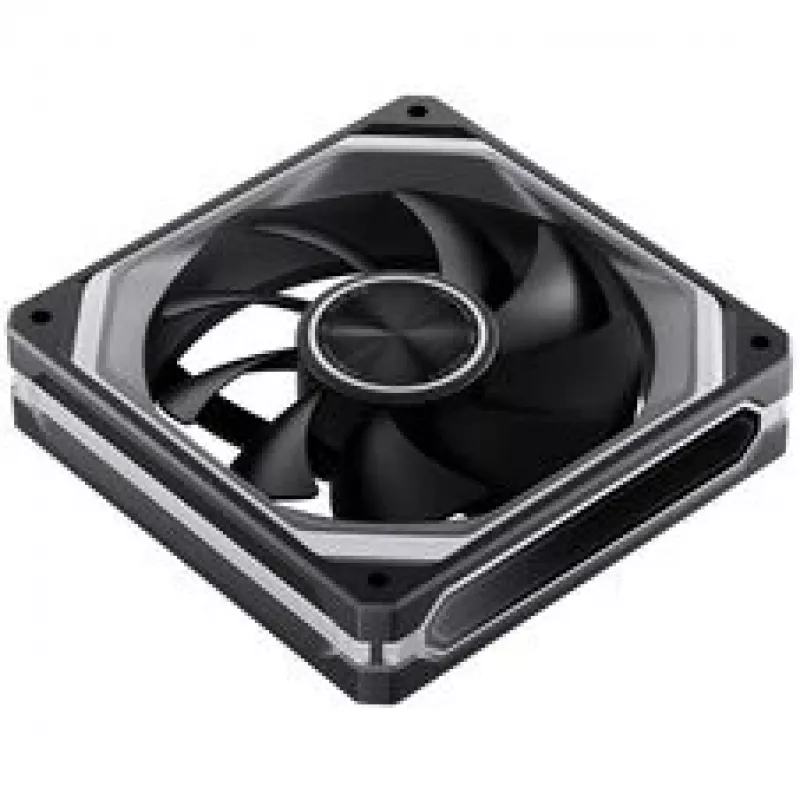

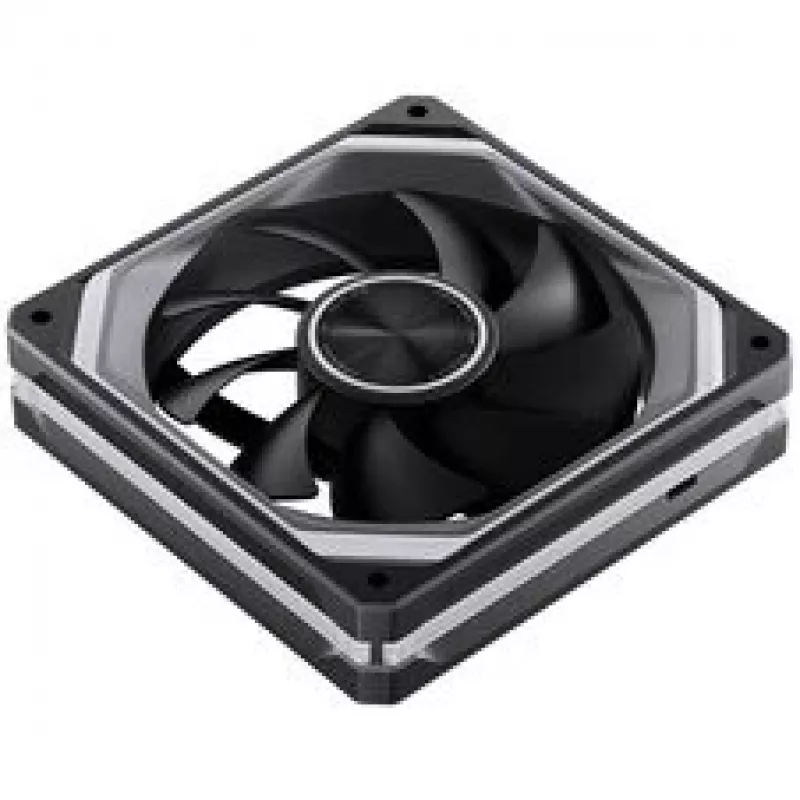

Jonsbo XA-120 120mm PWM ARGB ventilator, zwart

The Jonsbo XA-120 is a high-performance 120mm case fan designed for efficient cooling and stunning aesthetics. Featuring PWM control for precise speed adjustment and addressable RGB lighting for customizable illumination, this fan is an excellent choice for building a powerful and visually appealing PC. The black frame with translucent blades offers a sleek look that complements any build.

Advantages

Quiet operation with a maximum noise level of only 32.0 dBA, combined with a high airflow of 65.5 CFM and static pressure of 1.85 mmH2O, ensures excellent cooling performance without distracting noise. The hydraulic bearing provides long-lasting durability with an MTBF of 40,000 hours. The included 5V ARGB connector allows synchronization with compatible motherboards or controllers for dynamic lighting effects.

Suitable for

• PC case cooling
• CPU cooler or radiator mounting
• Building a silent yet powerful system
• Enthusiasts seeking RGB customization

Key specifications

• Fan Diameter: 120 mm
• Fan Thickness: 25 mm
• Fan Speed: 800 - 1800 RPM (±10%)
• Max Airflow: 65.5 CFM
• Max Static Pressure: 1.85 mmH2O
• Max Noise Level: 32.0 dBA
• Bearing Type: Hydraulic Bearing
• Fan Connector: 4-Pin PWM
• LED Connector: 3-Pin 5V ARGB
• Rated Voltage: 12V DC (Fan), 5V DC (LED)
• Rated Current: 0.25 A (Fan), 0.45 A (LED)
• Power Consumption: 3 W (Fan), 2.25 W (LED)
• Lighting: Addressable RGB (ARGB)
• Color: Black (Frame), Translucent (Blades)
• Material: PBT

Recommendations

For optimal performance, use the fan with a PWM-capable motherboard header or controller. The ARGB connector requires a 5V addressable RGB header. Ensure your system supports these connections for full functionality.
