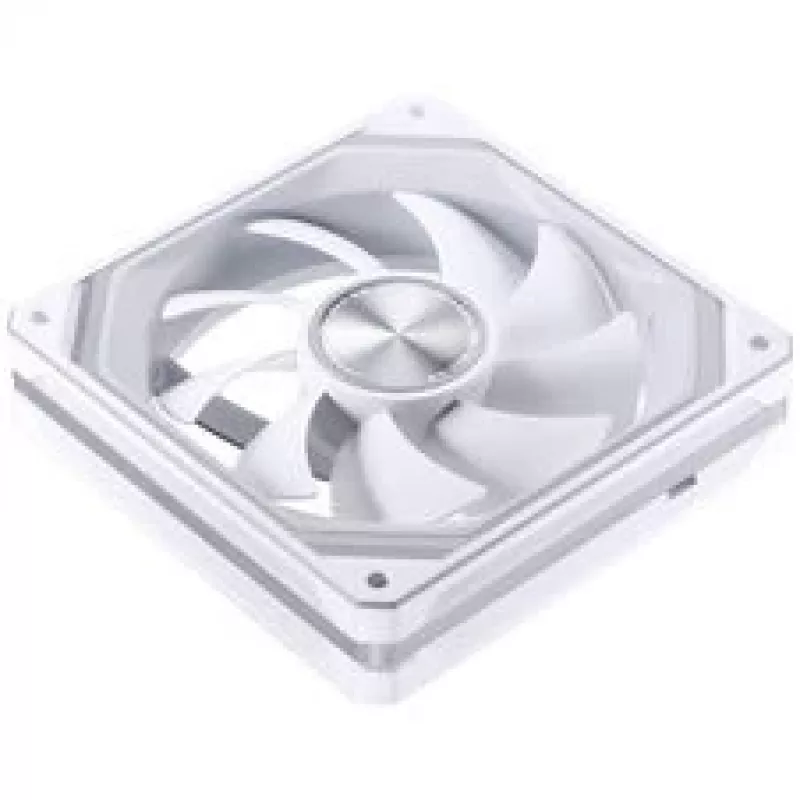

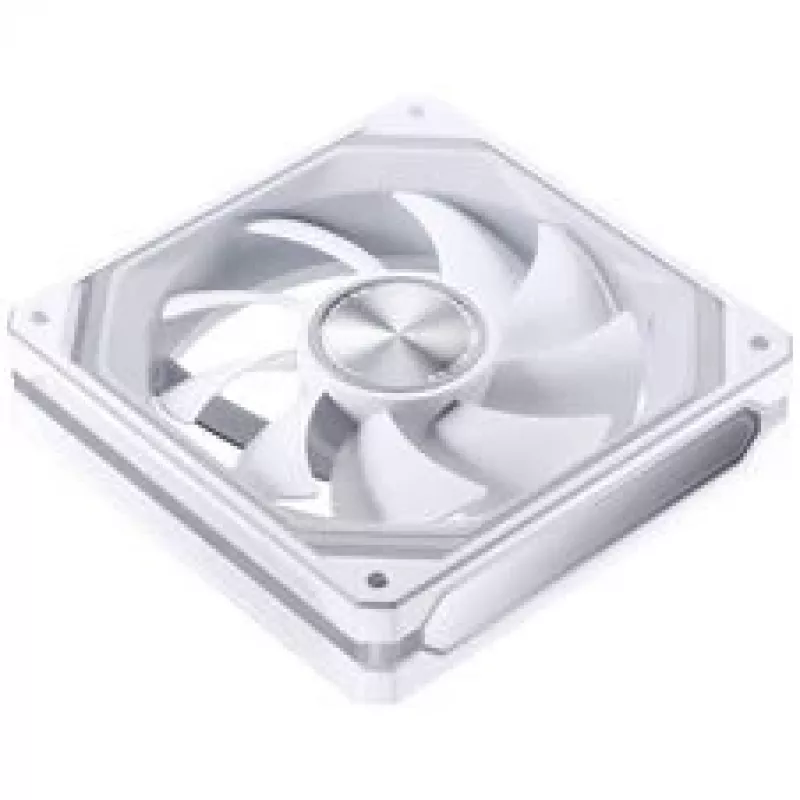

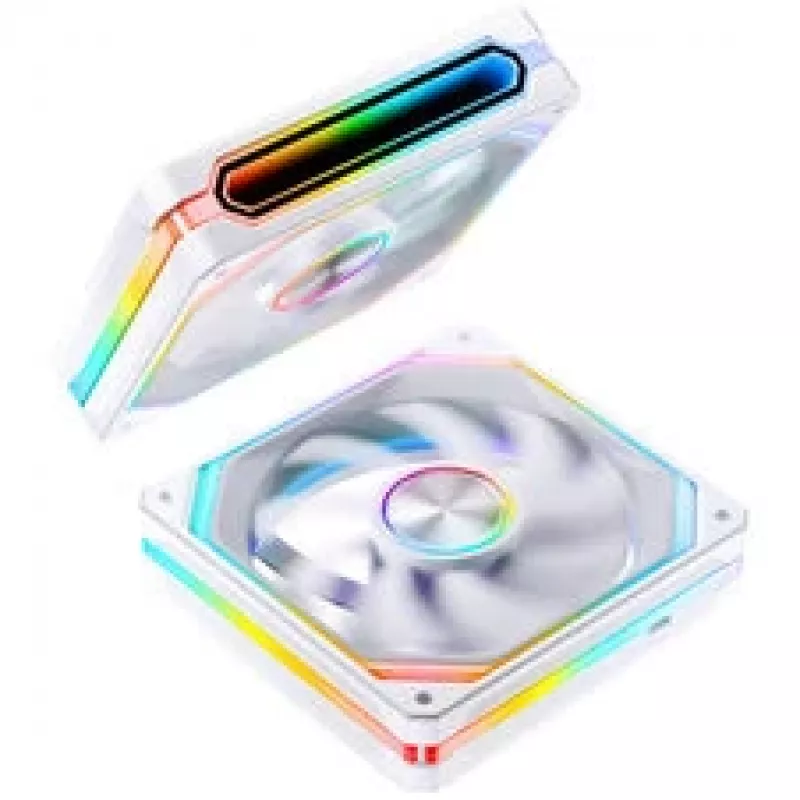

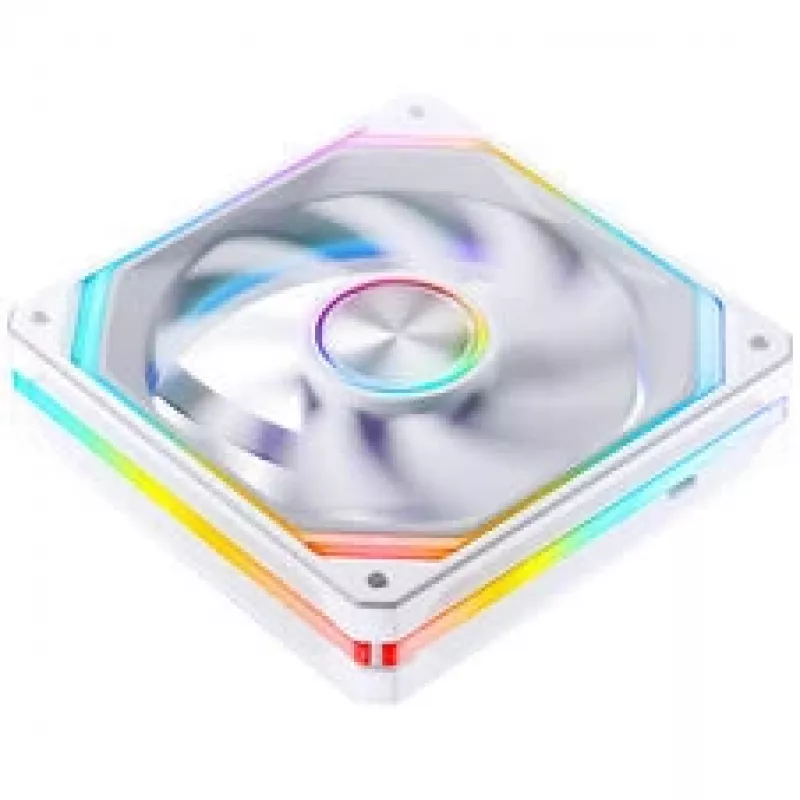

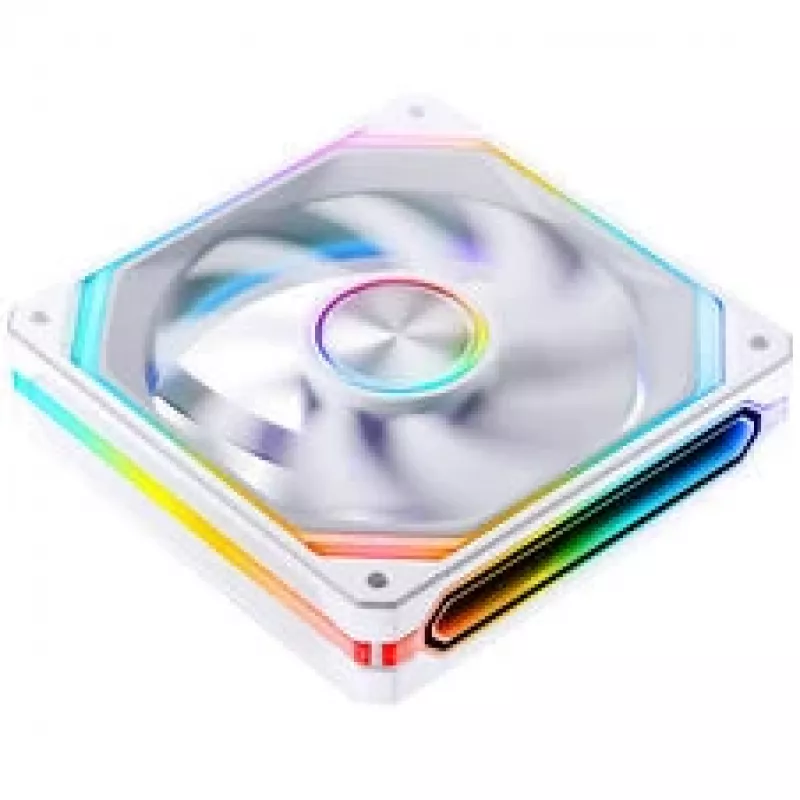

Jonsbo XA-120 PWM ARGB 120mm ventilator wit

The Jonsbo XA-120 is a high-performance 120mm case fan featuring PWM control and addressable RGB lighting. Designed for efficient cooling with a sleek white aesthetic, it delivers excellent airflow and static pressure while maintaining low noise levels. The fan supports synchronization with popular motherboard RGB software for customizable lighting effects.

Advantages

Hydraulic bearing ensures long lifespan and quiet operation. PWM support allows precise speed control from 800 to 1800 RPM. ARGB lighting with 16.8 million colors enhances build aesthetics. White frame and blades match white-themed systems.

Suitable for

• PC case cooling
• Radiator cooling
• CPU cooler replacement
• White-themed builds

Key specifications

• Fan Diameter: 120 mm
• Fan Thickness: 25 mm
• Speed: 800 - 1800 RPM (±10%)
• Max Airflow: 65.5 CFM
• Max Static Pressure: 1.85 mmH2O
• Noise Level: 32.5 dBA
• Bearing: Hydraulic Bearing
• Connector: 4-pin PWM
• LED: Addressable RGB (3-pin 5V ARGB)
• Voltage: 12V DC (Fan), 5V DC (LED)
• Current: 0.25 A (Fan), 0.45 A (LED)
• MTTF: 40,000 hours

Recommendations

For optimal performance, pair with a PWM-capable motherboard header and a 5V ARGB header. Ensure your case supports 120mm fan mounting.
