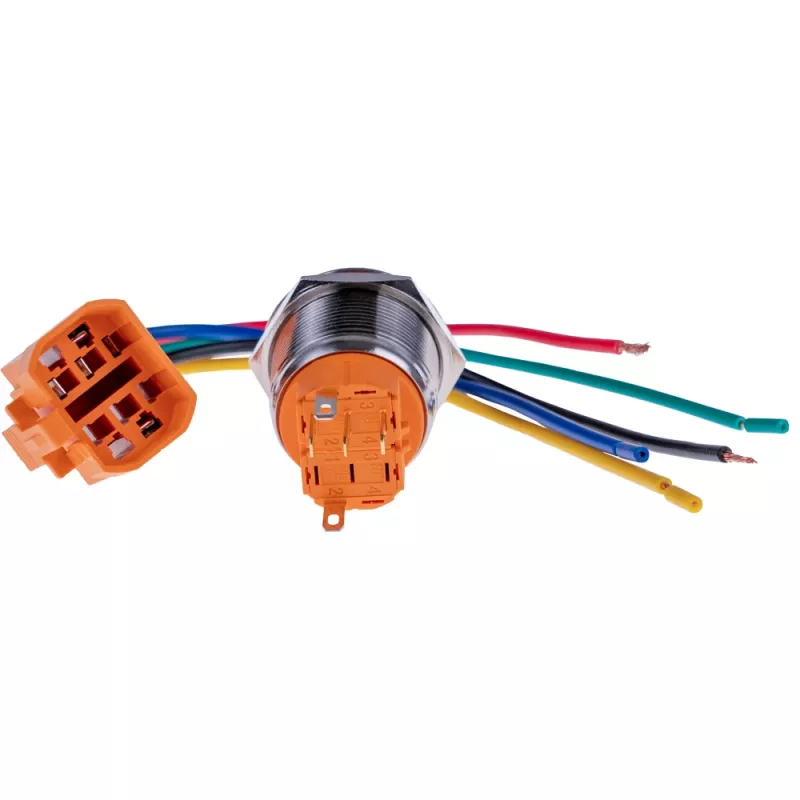

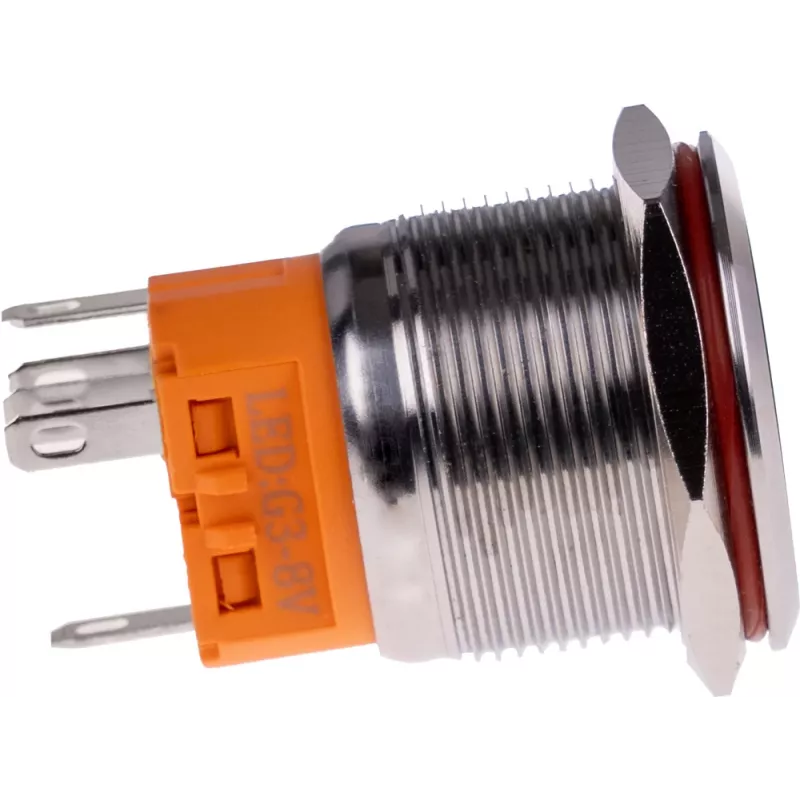

JOY-IT BUTTON22A-M-GR drukknop, groen, 250V AC 3A, IP67 IK10, 25mm

This JOY-IT push button switch delivers momentary switching action with a green actuator, rated for 250 V AC and 3 A. The round button has a 25 mm diameter and 35 mm height, designed for panel mounting. With IP67 ingress protection and IK10 impact resistance, it withstands harsh environments.

Advantages

The momentary SPST-NO contact configuration ensures reliable signal activation. The robust construction meets IP67 and IK10 standards, making it suitable for demanding industrial applications.

Suitable for

• Industrial control panels
• Machinery start/stop controls
• Outdoor equipment requiring sealed switches

Key specifications

• Switching action: momentary
• Contact configuration: SPST-NO
• Rated voltage: 250 V AC
• Rated current: 3 A
• Actuator colour: green
• Diameter: 25 mm
• Height: 35 mm
• IP rating: IP67
• IK rating: IK10
• Mounting type: panel mount

Recommendations

Ideal for applications requiring a durable, sealed momentary push button with clear visual indication.
