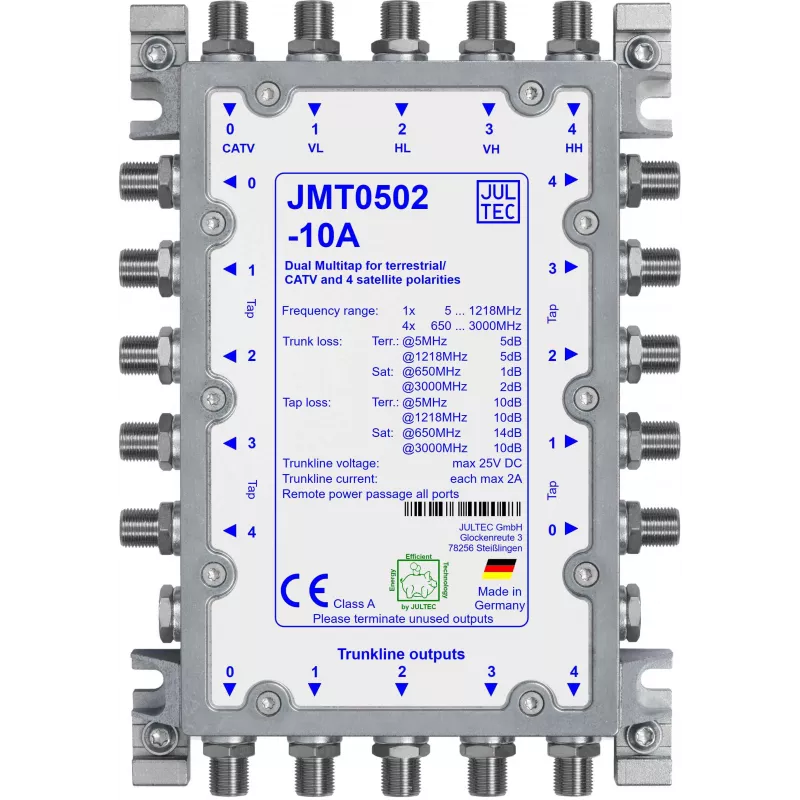

Jultec JMT0502-10A passieve multi-tap, 5 trunk-leidingen, 2 tap-uitgangen

The Jultec JMT0502-10A is a high-quality passive multi-tap designed for professional SAT/terrestrial signal distribution in multiswitch systems. It features 5 trunk lines (4x SAT IF, 1x terrestrial) and 2 tap outputs, providing reliable signal splitting with minimal loss. Ideal for expanding your network infrastructure, this tap ensures excellent signal integrity and easy installation.

Advantages

Passive design requires no external power supply, reducing complexity and cost. DC pass-through on all SAT lines allows powering of remote components. Compact and wall-mountable for flexible placement. High shielding effectiveness minimizes interference.

Suitable for

• Multiswitch systems in residential and commercial buildings
• Distributing SAT IF and terrestrial TV signals
• Expanding trunk lines with minimal signal degradation

Key specifications

• Product Type: Passive Multi-Tap
• Number of Trunk Inputs: 5 (4x SAT IF, 1x Terrestrial)
• Number of Trunk Outputs: 5 (4x SAT IF, 1x Terrestrial)
• Number of Tap Outputs: 2
• Frequency Range SAT IF: 950-2200 MHz
• Frequency Range Terrestrial: 5-862 MHz
• Tap Loss: approx. 10 dB (SAT IF and Terrestrial)
• Through Loss: approx. 1.5 dB (SAT IF and Terrestrial)
• DC Pass-Through: Yes, on all SAT lines
• Connectors: F-type
• Impedance: 75 Ohm
• Mounting: Wall-mountable

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This tap is a reliable choice for professional installers seeking a cost-effective solution for signal distribution.
