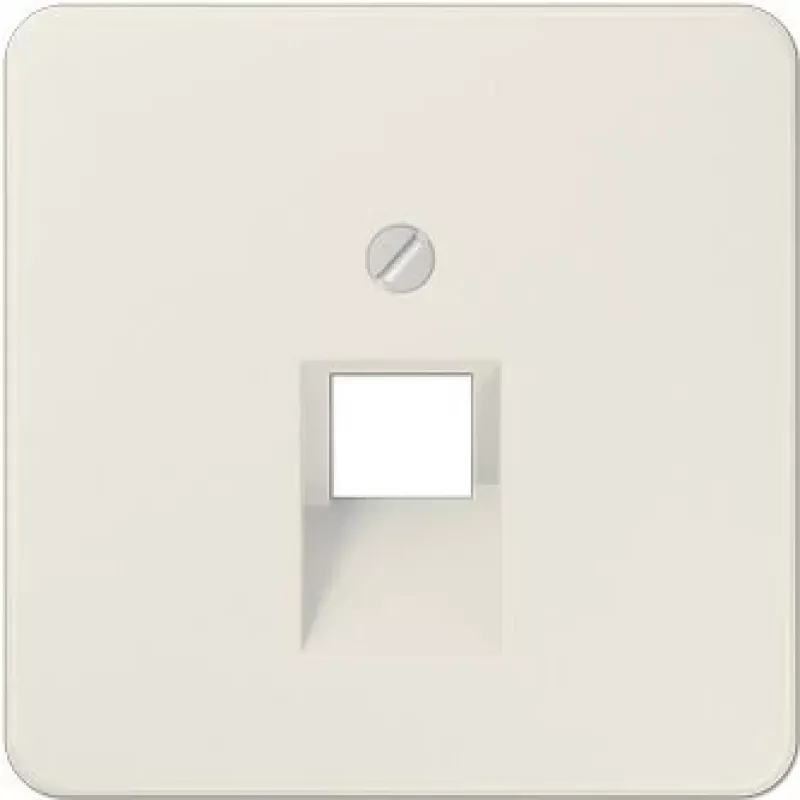

JUNG 569-1UA RJ45 datadoos-inzet, Cat. 5e, ivoor

The JUNG 569-1UA is a flush-mounted RJ45 data outlet insert that brings reliable Gigabit Ethernet connectivity to your wall. Unlike bulky surface-mount boxes, this single-module insert sits discreetly behind a JUNG cover frame, keeping your network termination tidy and accessible. Its ivory thermoplastic body blends with classic interiors, while the 45-degree LSA+ terminals make punching down solid conductors straightforward.

Highlights

• Supports up to 1 Gbit/s over Cat. 5e (Class D) UTP cabling
• Fits JUNG CD 500, AS 500, A 500, A creation, SL 500, LS 990, LS design and LS plus ranges
• Tool-free cover removal and screw fastening for secure installation
• Halogen-free ivory thermoplastic housing

In daily use

Terminate a network cable to the LSA+ IDC terminals using a standard punch-down tool, then snap the insert into a compatible JUNG central plate and cover frame. The 45-degree terminal angle reduces strain on the cable and keeps the connection compact inside the flush box. The insert is unshielded (UTP), so it is intended for typical indoor residential and office networks where electromagnetic interference is low.

Full specifications

• Connector type: RJ45
• Number of ports: 1
• Category: Cat. 5e (Class D)
• Shielding: UTP (unshielded)
• Mounting type: flush-mounted
• Material: thermoplastic
• Colour: ivory
• Connection type: LSA+ IDC terminals
• Wiring standard: TIA/EIA 568A/B
• Data transfer rate: up to 1 Gbit/s
• Number of modules: 1-gang
• Termination angle: 45 degrees
• Halogen-free: yes
• Fastening type: screw fastening
• Required accessories (not included): central plate and cover frame

Final note

For a complete outlet, order the matching JUNG central plate and cover frame from the same design series.
