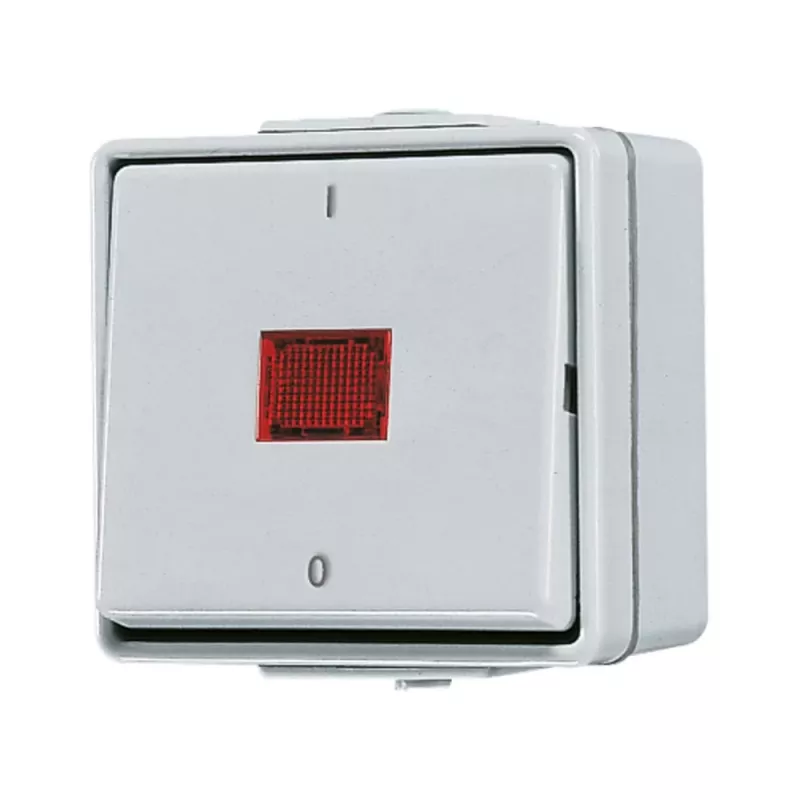

JUNG 602 KOW wip-controleschakelaar, uit 2-polig, 10 AX 250 V, IP44, WG 600

When a standard one-way switch cannot handle two independent circuits or a two-pole circuit that must change over between two states, this JUNG insert provides the switching mechanism. It is a flush-mounted changeover switch insert that works with JUNG cover plates and rockers from the A, AS, CD, and LS ranges, allowing you to complete the switch with the design of your choice.

Who is it for

Electricians and installers working on residential or commercial projects who need a reliable 2-pole changeover switch mechanism. It suits those who prefer to select the visible rocker and frame separately to match the room's décor.

Main features

• 2-pole changeover switch function
• Rated current 10 A, rated voltage 250 V AC
• Screw terminals for conductors up to 2.5 mm²
• Flush-mounted installation
• White thermoplastic body
• Halogen-free

Specifications

• Switch type: Changeover switch (Wechselschalter)
• Number of poles: 2
• Rated current: 10 A
• Rated voltage: 250 V AC
• Mounting type: Flush-mounted (Unterputz)
• Colour: White (Alpinweiß)
• Material: Thermoplastic
• Connection type: Screw terminals
• Protection class (IP): IP20
• Halogen-free: Yes
• Terminal capacity: Up to 2.5 mm²
• Operating temperature: -5 to +40 °C
• Installation depth: Approx. 32 mm
• Number of terminals: 6
• Certification: VDE

Tips

Pair this insert with a JUNG rocker and cover plate from the same design line for a complete switch. Ensure the installation box has sufficient depth for the 32 mm insert.
