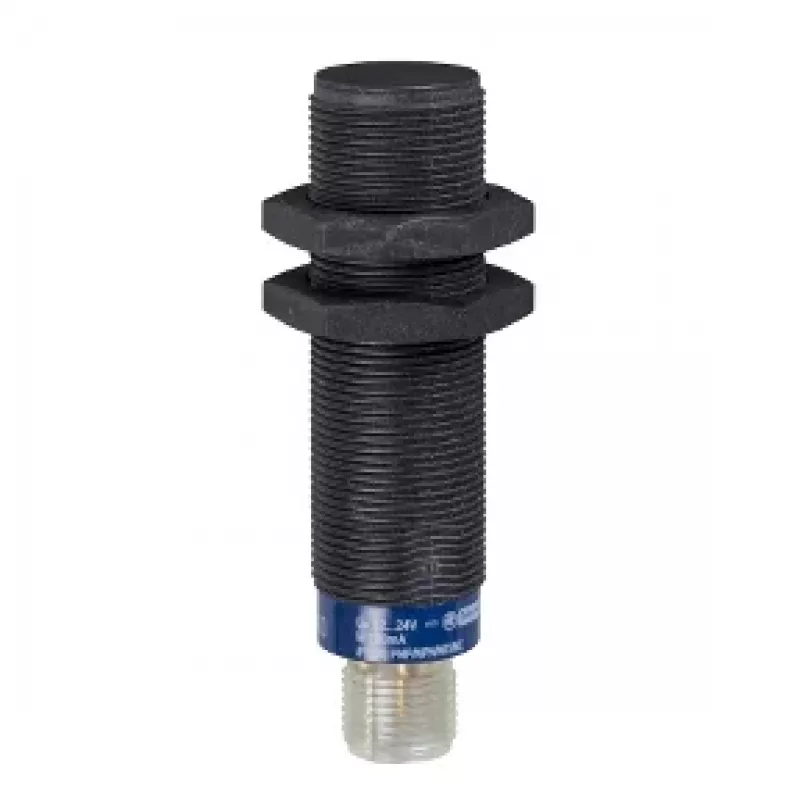

TMSS GERMANY Telemechanique Sensors inductieve naderingssensor M18, Sn8mm XS4P18PA370D

Featuring an 8 mm sensing distance in a compact M18 cylindrical housing, the TMSS GERMANY XS4P18PA370D inductive proximity sensor delivers reliable detection for industrial automation. Part of the OsiSense XS series, this sensor is engineered for flush mounting and offers programmable output with both normally open and normally closed functions.

Overview

The XS4P18PA370D is a 3-wire PNP sensor with an M12 4-pin connector, operating on a 12-24 V DC supply. Its PPS detection face and IP67/IP69K rating ensure durability in demanding environments.

What stands out

• 8 mm sensing distance with flush mountable design
• Programmable output: 1 NO + 1 NC
• High switching frequency up to 1000 Hz
• Robust PPS detection face with IP67/IP69K protection
• Wide operating temperature range: -25 to 70 °C

Technical details

• Sensor type: Inductive proximity sensor
• Series: OsiSense XS
• Housing: Cylindrical, M18 diameter, 62 mm length
• Mounting: Flush
• Detection face material: PPS (Polyphenylene Sulfide)
• Output type: PNP, 3-wire
• Output function: 1 NO + 1 NC (programmable)
• Connection: M12 connector, 4-pin
• Supply voltage: 12-24 V DC
• Switching capacity: ≤ 200 mA
• Switching frequency: ≤ 1000 Hz
• Protection: Reverse polarity, overload, short-circuit
• Housing material: Plastic (PPS)

Our verdict

A versatile and robust inductive sensor for precise metal detection in automation systems, offering programmable output and high environmental protection.
