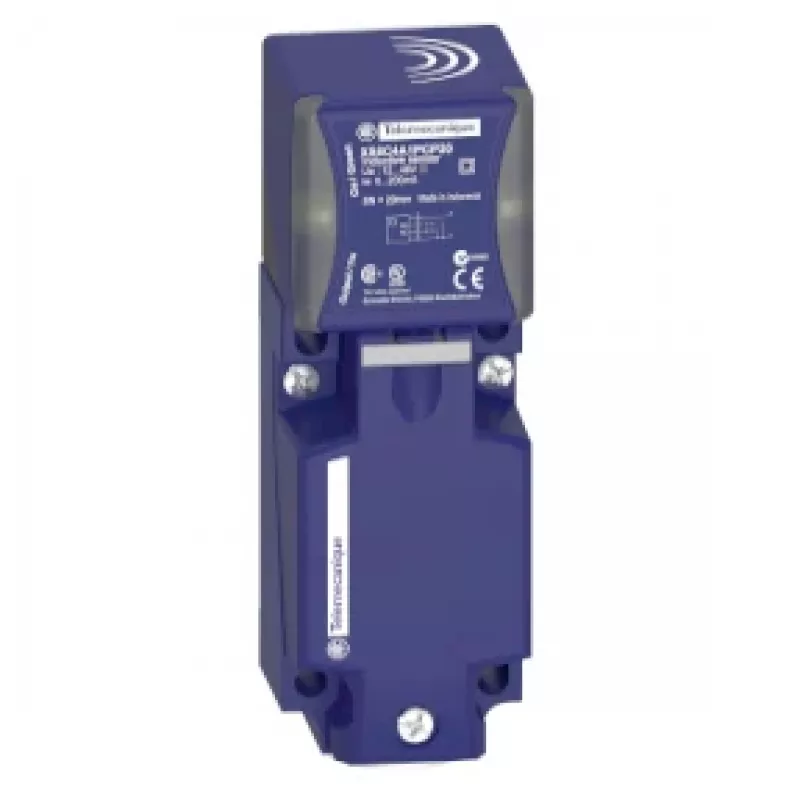

TMSS GERMANY inductieve naderingssensor XS8C4A4PCP20, 40 mm detectie, PNP NO, 12-48 V DC, 2 m kabel

Detecting metal objects without physical contact is a common challenge in industrial automation. The TMSS GERMANY XS8C4A4PCP20 inductive proximity sensor solves this with a 40 mm sensing distance, providing reliable non-contact detection for a wide range of applications.

Who is it for

This sensor is intended for automation engineers, machine builders, and maintenance technicians who need a robust, non-flush mountable sensor for position sensing, object detection, or counting in harsh industrial environments.

Main features

• Inductive sensing with a nominal distance of 40 mm
• PNP output, normally open (NO) function
• Wide supply voltage range: 12-48 V DC
• Rectangular flat housing made of PBT with PPS front face
• IP67 rated for dust and water resistance
• Short-circuit and reverse polarity protection
• 2 m cable connection

Specifications

• Sensor type: Inductive
• Sensor design: Rectangular, flat
• Nominal sensing distance: 40 mm
• Output type: PNP
• Output function: Normally open (NO)
• Electrical connection: 3-wire DC
• Supply voltage: 12-48 V DC
• Cable length: 2 m
• Housing material: PBT (Polybutylene Terephthalate)
• Front face material: PPS (Polyphenylene Sulfide)
• IP rating: IP67
• Switching frequency: ≤ 100 Hz
• Maximum output current: 200 mA
• Current consumption: ≤ 10 mA (no-load)
• Short-circuit protection: Yes
• Reverse polarity protection: Yes
• Operating temperature: -25 to 70 °C
• Mounting type: Non-flush mountable
• Series: OsiSense XS8

Tips

For best results, mount the sensor on a metal-free zone as required for non-flush installation. Ensure the supply voltage is within 12-48 V DC and the load current does not exceed 200 mA.
