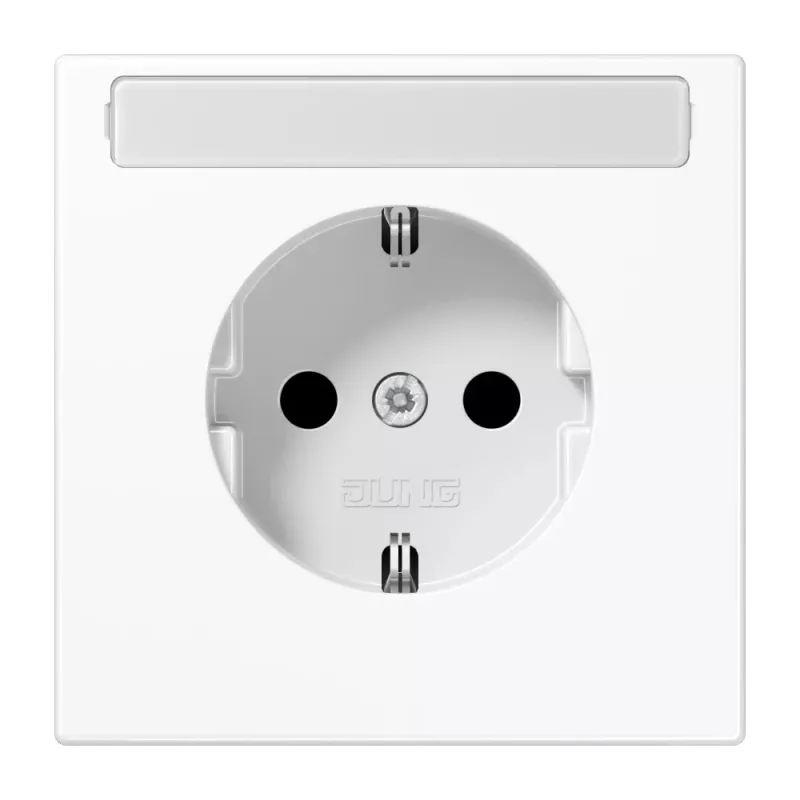

JUNG LS 1520 BFKINA WW Schuko stopcontact type F alpinwit

Schuko socket insert with hinged cover and increased touch protection, designed for flush-mounted installation in JUNG LS 990 frames.

Advantages

The hinged cover keeps the socket closed when not in use, protecting against dust and accidental contact. Increased touch protection provides additional safety, especially in households with children. The duroplast construction is halogen-free and impact-resistant to IK05.

Suitable for

• Residential and commercial indoor installations
• Use with JUNG LS 990 frames
• Single-socket applications requiring 16 A / 250 V AC

Key specifications

• Socket type: Type F (CEE 7/3)
• Rated current: 16 A
• Rated voltage: 250 V AC
• Frequency: 50/60 Hz
• Material: Duroplast (thermoset plastic)
• Colour: Alpine white
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Terminal capacity: 1.5 – 2.5 mm²
• Operating temperature: -5 to +40 °C

Recommendations

Combine with JUNG LS 990 frames in matching colour for a complete installation.
