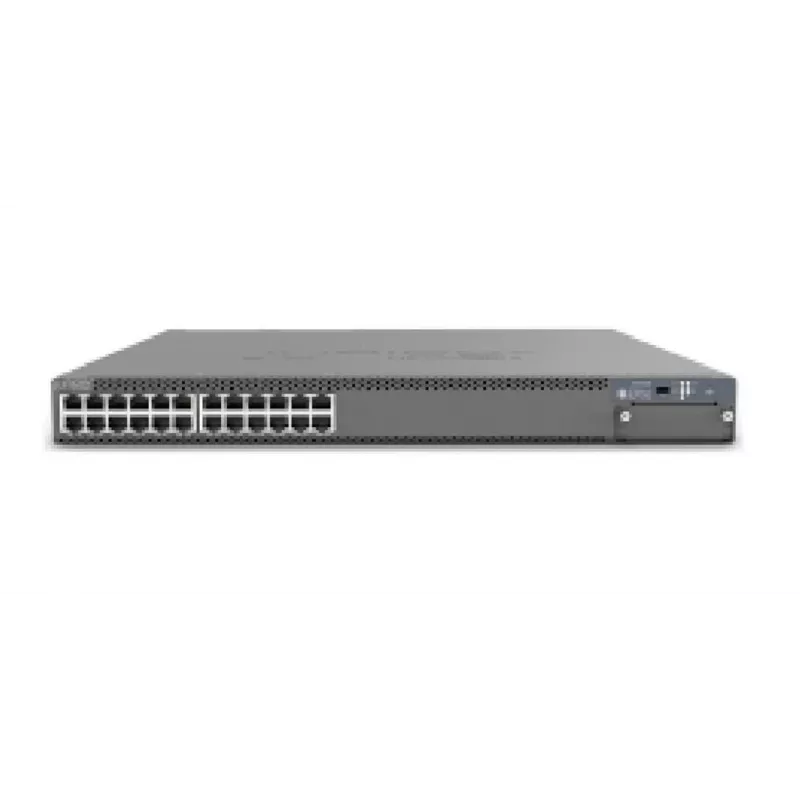

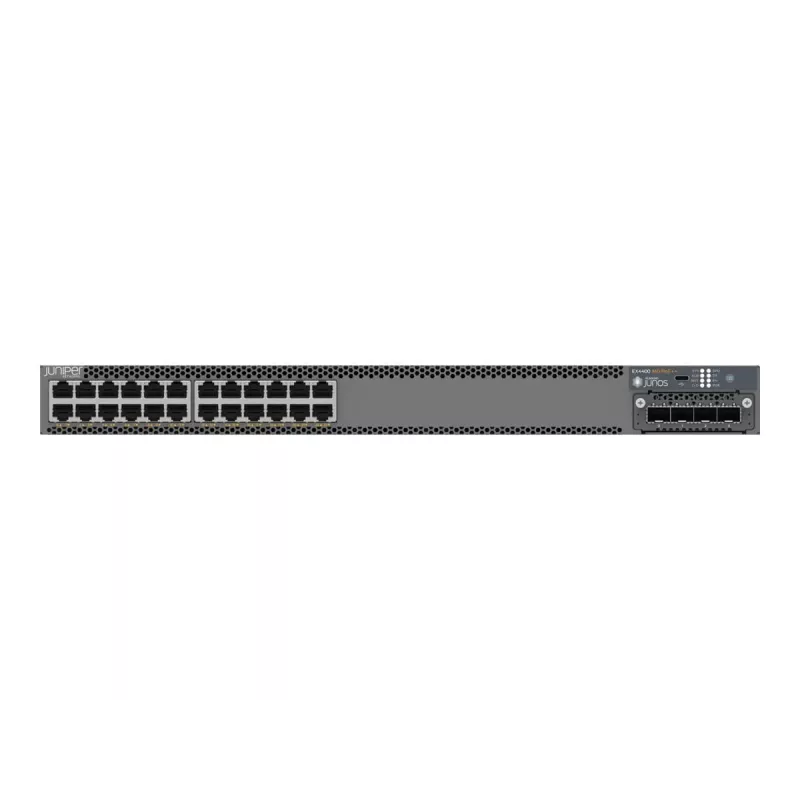

Juniper EX Series EX4400-24MP - switch - L3 - managed - 24 x 100/1000/2.5G/5G/10GBase-T (PoE++)

Modern enterprise networks demand high-density multi-gigabit access ports with robust Power over Ethernet to support the latest Wi-Fi 6/6E access points, high-definition surveillance cameras, and IoT devices. The Juniper EX4400-24MP addresses this need by delivering 24 multi-gigabit PoE++ ports and 4 SFP28 uplinks in a compact 1U form factor, ensuring your network edge keeps pace with escalating bandwidth and power requirements.

Who is it for

This switch is ideal for medium to large enterprises, educational institutions, and healthcare facilities that require reliable, high-performance connectivity for bandwidth-intensive endpoints. Network administrators seeking advanced Layer 3 routing, comprehensive security, and simplified management through Juniper Mist AI will find the EX4400-24MP a powerful addition to their access layer.

Main features

• 24 x 100/1000/2.5G/5G/10GBase-T PoE++ ports with up to 90W per port (IEEE 802.3bt Type 4)
• 4 x 25 Gigabit SFP28 uplink ports for high-speed backbone connectivity
• Layer 3 managed switch with support for OSPF, BGP, RIP, and static routing
• 640 Gbps switching capacity and 476 Mpps forwarding rate for non-blocking performance
• 1,000W PoE power budget to power a wide range of devices simultaneously
• Advanced security features including 802.1X, RADIUS, TACACS+, DHCP snooping, and dynamic ARP inspection
• Virtual Chassis technology allows up to 10 switches to be managed as a single logical device
• Support for Juniper Mist Wired Assurance for AI-driven operations and troubleshooting

Specifications

• Device Type: Network Switch - Layer 3 - Managed
• Enclosure Type: Rack-mountable - 1U
• Subtype: Ethernet Switch
• Ports: 24 x 100/1000/2.5G/5G/10GBase-T (PoE++)
• Uplink Ports: 4 x 25 Gigabit SFP28
• PoE Standard: IEEE 802.3bt Type 4 (PoE++)
• PoE Power Budget: 1000 W
• Max PoE Power per Port: 90 W
• Switching Capacity: 640 Gbps
• Forwarding Rate: 476 Mpps
• MAC Address Table Size: 64K entries
• Jumbo Frame Support: Up to 9192 bytes
• Routing Protocols: OSPF, BGP, RIP, Static IP routing, ECMP
• Remote Management Protocol: SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, HTTP, HTTPS, TFTP, CLI, SSH
• Authentication Method: RADIUS, TACACS+, 802.1x
• Features: VLAN support, QoS, Link Aggregation (LACP), Spanning Tree Protocol (STP), IGMP snooping, Access Control Lists (ACLs), DHCP snooping, IP source guard, Dynamic ARP inspection, Port security, Virtual Chassis technology

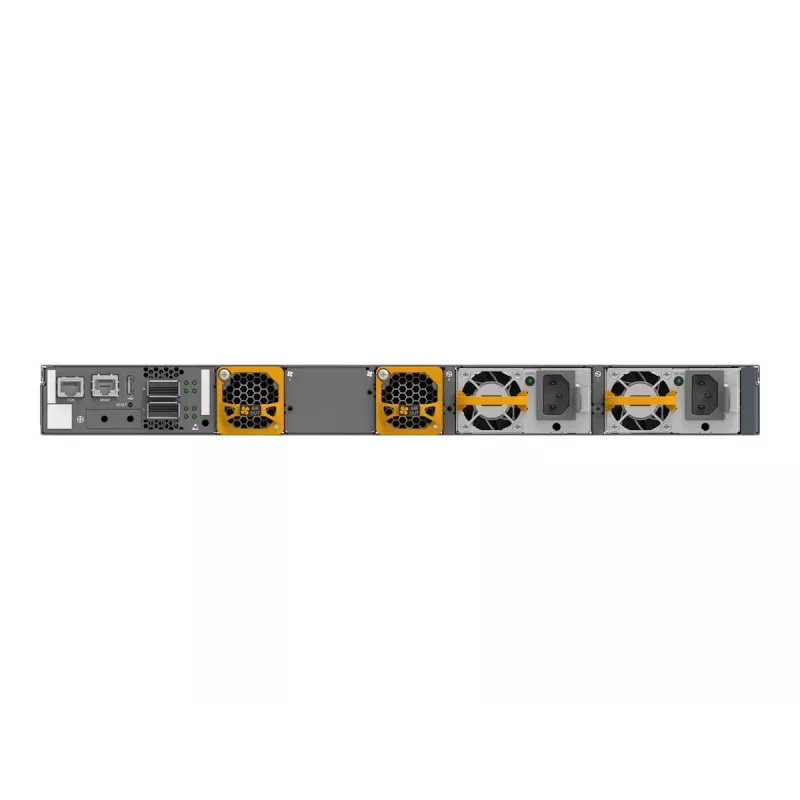

• Power Supply: Internal AC power supply (dual slots for redundancy)
• Cooling: Field-replaceable fan modules

Tips

To maximize the benefits of the EX4400-24MP, pair it with Juniper Mist Wired Assurance for automated configuration, anomaly detection, and root cause analysis. Use the multi-gigabit ports to future-proof your network for Wi-Fi 6/6E access points and high-speed endpoints. Leverage Virtual Chassis to simplify management and increase resiliency across multiple switches.
