JVC KW-M180DBT autoradio-receiver zwart 180 W Bluetooth

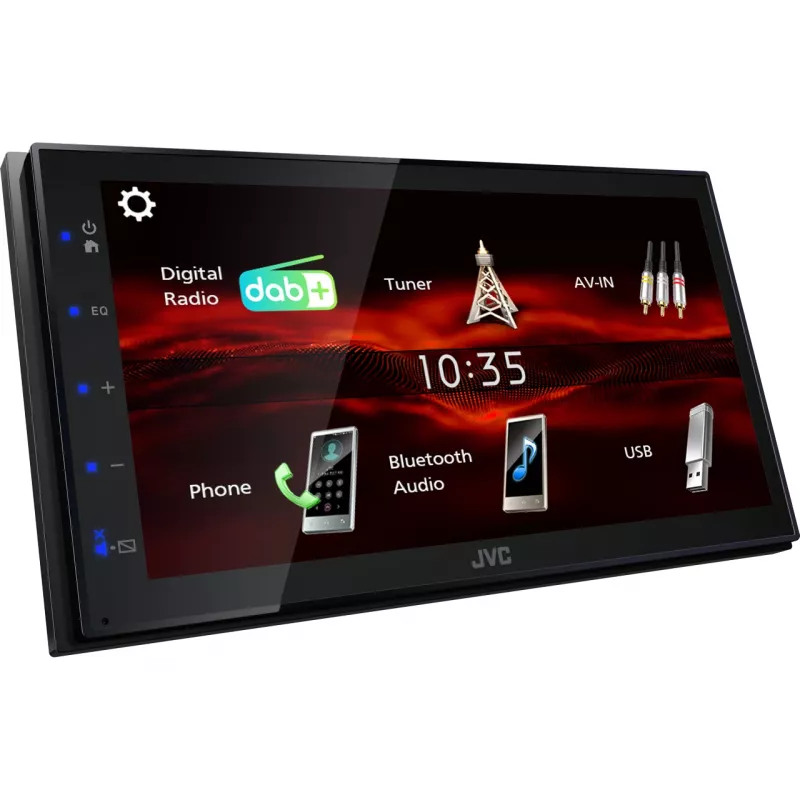

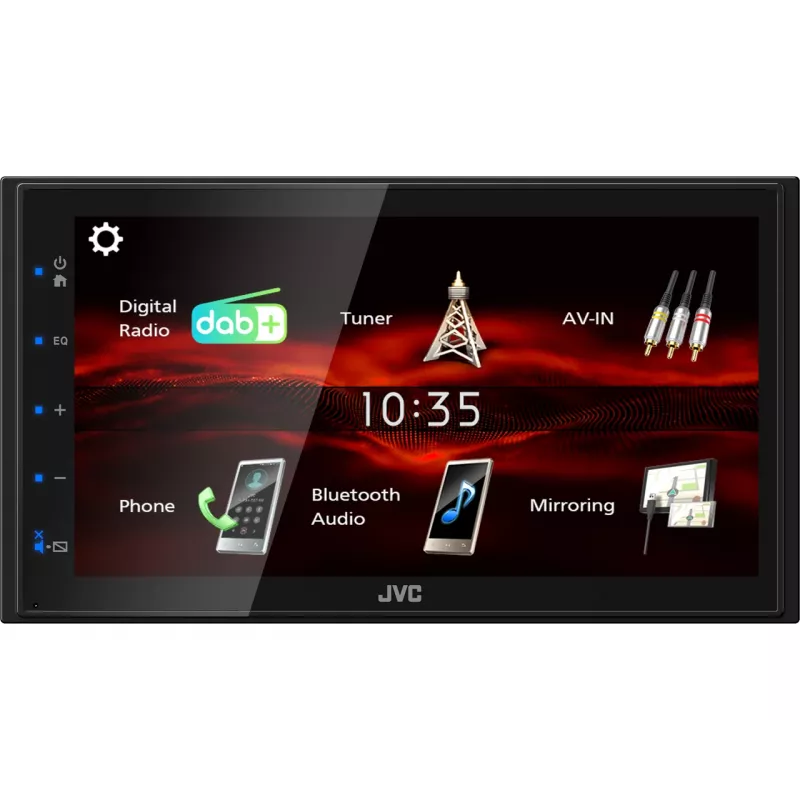

The JVC KW-M180DBT is a car media receiver with a 6.8" WVGA capacitive touch panel that delivers sharp, high-contrast images, vivid colors and wide viewing angles. It includes a DAB/DAB+ radio tuner for digital stereo sound, Bluetooth for hands-free calls and music streaming, Android USB Mirroring for smartphone display and control, and a rear high-speed USB Type-A port with up to 1.5A charging. The unit supports common audio formats (MP3, WMA, AAC, WAV, FLAC) and video formats (MPEG1/2, MPEG4, H.264, MKV), offers time alignment and a 13-band EQ for sound tuning, and provides 2-channel preouts plus a mono sub preout. AV-in, video-out and a dedicated rear-view camera input with parking guide lines are included, and the short 75 mm chassis allows installation in a wider range of vehicles.

Advantages

The receiver combines a large capacitive touchscreen with DAB/DAB+ reception for noise-free digital radio and Bluetooth connectivity for hands-free use and audio streaming. Multi-format media playback and Android USB Mirroring enable flexible in-car entertainment, while time alignment, a 13-band equalizer and preouts allow detailed sound tuning and easy integration with external amplifiers and subwoofers. The compact 75 mm body simplifies installation in many car dashboards.

Suitable for

• Drivers who want digital DAB/DAB+ radio reception in the car
• Users who need hands-free calling and wireless music streaming via Bluetooth
• Owners who want to mirror and control an Android smartphone on a large screen
• Installations that require external amplifiers or a subwoofer (preouts available)
• Vehicles with limited dash depth where a short 75 mm chassis is required

Key specifications

• Display: 6.8" WVGA capacitive touch panel
• Audio: MP3, WMA, AAC, WAV, FLAC playback; 13-band EQ; Time Alignment
• Video: MPEG1/2, MPEG4, H.264, MKV playback
• Radio: DAB/DAB+ and FM/AM
• Connectivity: Bluetooth, Android USB Mirroring, Rear USB Type-A (1.5A max)

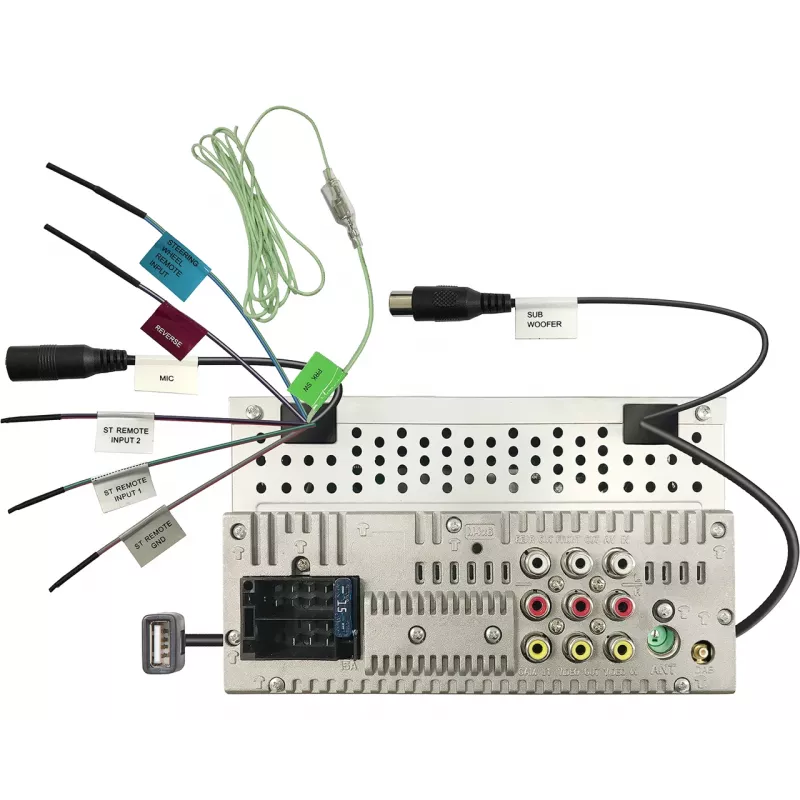

• Outputs: 2 preouts (front/rear) + mono sub preout
• Camera: Dedicated rear-view camera input with parking guide lines
• Chassis depth: Short body, 75 mm
• Power: 180 W (model specification)
• Colour: Black

How to use

Mount the KW-M180DBT in the vehicle dashboard following the vehicle- and unit-specific installation instructions. Connect the antenna, power and speakers, and, if required, external amplifiers to the front/rear and sub preouts. Attach a rear-view camera to the dedicated camera input for automatic display when reversing. Use the capacitive touchscreen to navigate menus, select audio or video sources and adjust audio settings such as the 13-band EQ and time alignment. Pair a mobile phone via Bluetooth for hands-free calls and audio streaming, or connect an Android device via USB for Mirroring functionality.

Recommendations

For best performance, use quality speaker wiring and, if adding external amplification, match amp input sensitivity to the unit's preout levels. Keep firmware updated and follow local regulations regarding phone use while driving.
