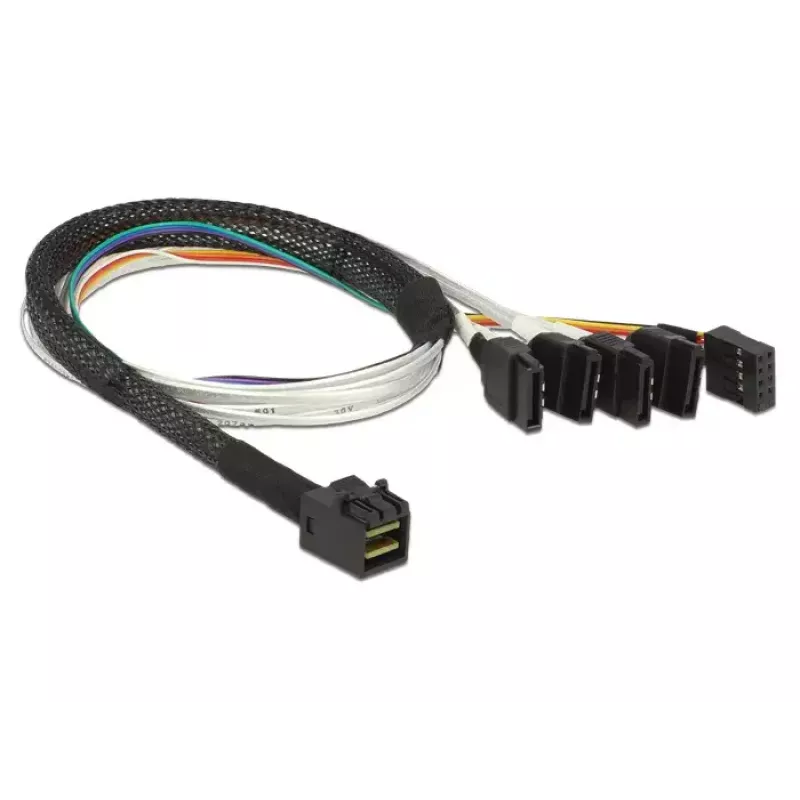

Kabel DeLOCK 0,5 m SFF-8643/4 x SATA 7p

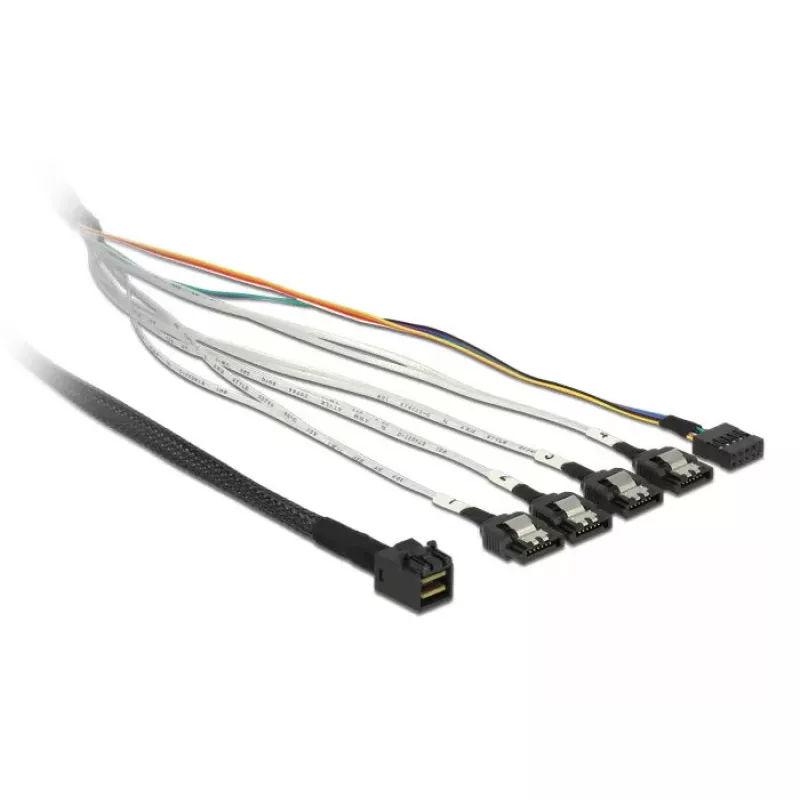

This Delock 0.5m cable features an SFF-8643 (mini SAS HD) connector on one end and four SATA 7-pin connectors on the other, designed to connect internal SAS or SATA storage devices such as controllers to multiple SATA hard drives. The cable length of 0.5 m suits installations in compact server or PC interiors while maintaining stable data transfer. The product is multicolour and intended for internal use in computer systems.

Advantages

The cable converts a single SFF-8643 mini SAS HD interface into four separate SATA 7p connections, enabling direct connection of up to four SATA HDDs. Metal clips on each SATA connector provide a secure snap-in connection. Its short 0.5 m length reduces cable clutter and is suitable for tight mounting spaces.

Suitable for

• Connecting a server or RAID/controller card with SFF-8643 to up to four SATA hard drives
• Internal PC or rack-mounted server storage wiring where short cable runs are needed
• Systems requiring secure SATA connections using metal clip connectors

Key specifications

• Cable length: 0.5 m
• Connector 1: SFF-8643 (mini SAS HD)
• Connector 2: 4 × SATA 7p (with metal clip)
• Product colour: Multicolour
• Brand: DELOCK
• MPN: 83315
• EAN: 4043619833153

How to use

Power off the system before connecting. Insert the SFF-8643 connector into the corresponding mini SAS HD port on the controller or motherboard, ensuring proper alignment. Connect each SATA 7p plug to a SATA drive, pressing until the metal clip snaps into place. After all connections are secure, restore power and verify drive detection in the system BIOS or RAID controller utility.

Recommendations

Use this cable only for internal connections inside a computer or server chassis; avoid bending the cable sharply and keep it away from heat sources. Confirm compatibility of the controller and drives with SFF-8643 to SATA breakout wiring and follow the server or motherboard manufacturer's guidelines for drive configuration and RAID setup.
